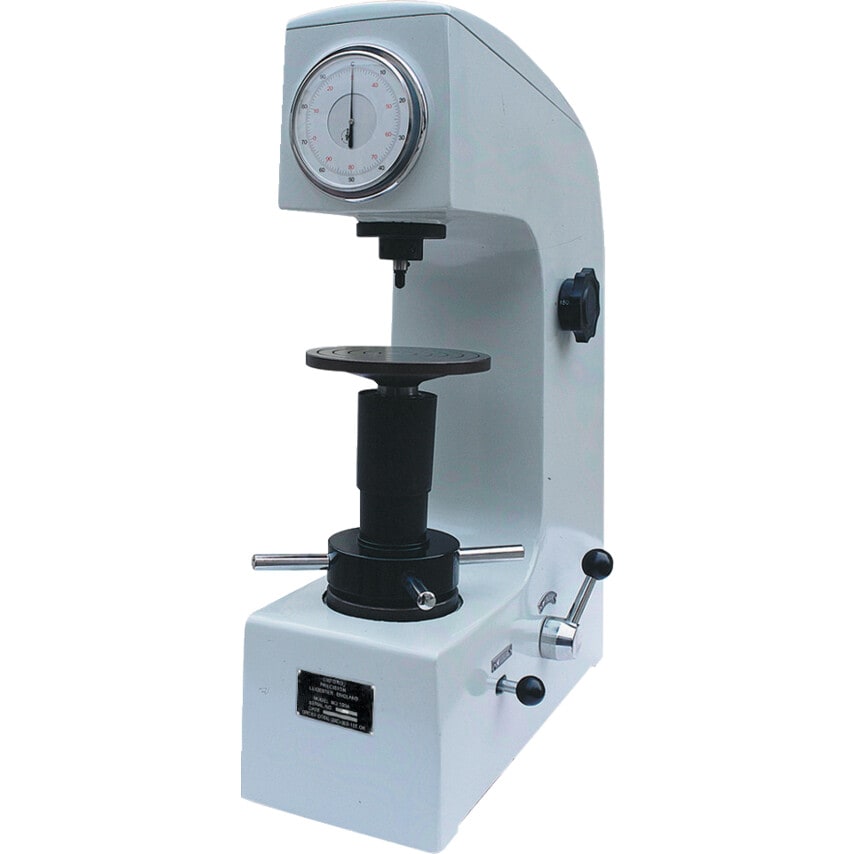

Model 150R
For testing the hardness of hard alloys, quenched and unquenched steels, using steel ball or diamond penetrators to measure Rockwell A, B & C units of measurement. Supplied with test block, flat large, small and V notch anvils, steel ball bearing indentor and diamond Indentor. Manufactured in accordance with ISO 6508-2:1999 & ASTME18.
Measuring ranges: 20-88HRA
(Test force: 588.4N/60kgf), 20-100HRB
(Test force: 980.7N/100kgf), 20-70HRC
(Test force: 1471N/150kgf).
Max height of test piece: 80mm with screw protective jacket, 170mm without.
Depth of throat: 135mm.
Dimensions: 466 x 238 x 630mm.
| Standards Met | ASTME18 | ISO 6508-2 |
| Display Type | Analogue |
| Additional Features | Measure Rockwell A |
| Scale | Newtons; Kilogram Force |
| Measuring Range | 20 - 70HRC | 20 - 88HRA | 20 - 100HRB |
| Test Cycle | Manual |
| MFR Part No. | HR-150A |
| Product Type | Benchtop Hardness Tester |
