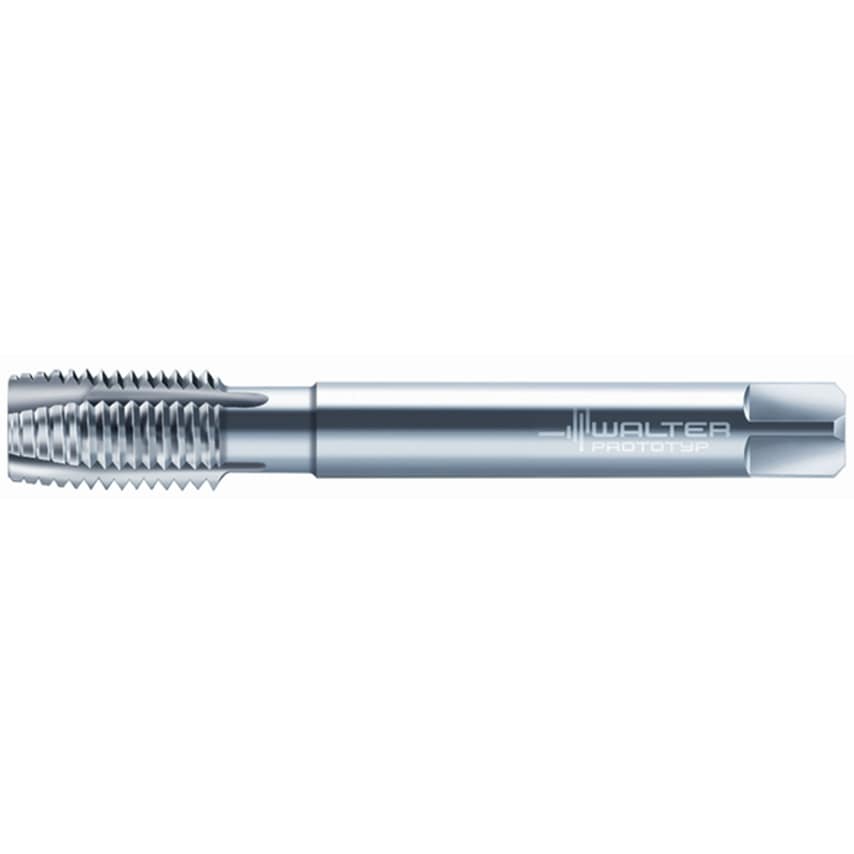

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD UNC/2B DIN 2184-1 Suitable for through hole UNC 3/4-10 P=10
| Tap Type | Spiral Point |
| Finish/Coating | Uncoated |
| Driving Square Length | 14mm |
| Series | Prototex\u00ae X\u00b7pert P |
| Clamping Width | 11mm |
| Usable Length | 81mm |
| Cutting Edge Length | 30mm |
| Overall Length | 125mm |
| MFR Part No. | 6149443 |
| Material | HSSE |
| Dimensions Standard | DIN 2184-1 |
| Number of Grooves | 3 |
| ISO Designation | P22360-UNC3/4 |
| Tool Designation | P22360-UNC3/4 |
| Thread Size | 3/4in |
| Thread Standard | UNC |
| ISO Category | O |
| Shank Diameter | 14mm |
| Teeth per Inch | 10 |
