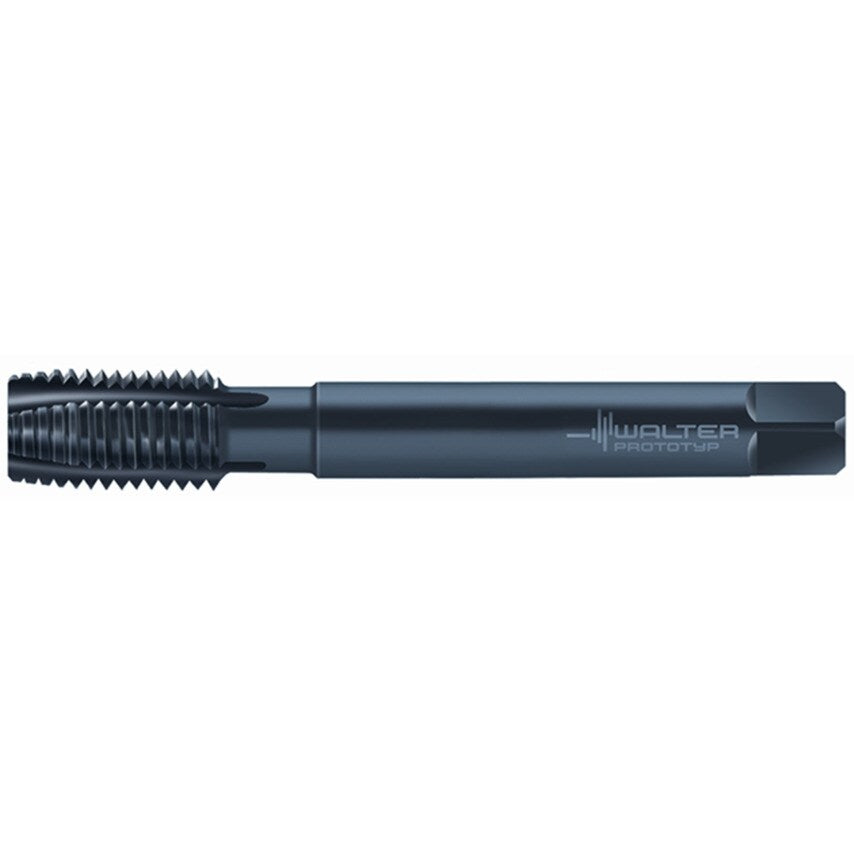

HSS-E machine taps Prototex Xpert M B = 3.5-5xTP (plug chamfer) 3xD UNF/2B DIN 2184-1 Suitable for through hole VAP UNF 3/4-16 P=16
| Tool Designation | M23263-UNF3/4 |
| Shank Diameter | 14mm |
| Driving Square Length | 14mm |
| Number of Grooves | 4 |
| Clamping Width | 11mm |
| Cutting Edge Length | 24mm |
| Thread Size | UNF 3/4-16 |
| Overall Length | 110mm |
| Usable Length | 66mm |
| MFR Part No. | 6149989 |
