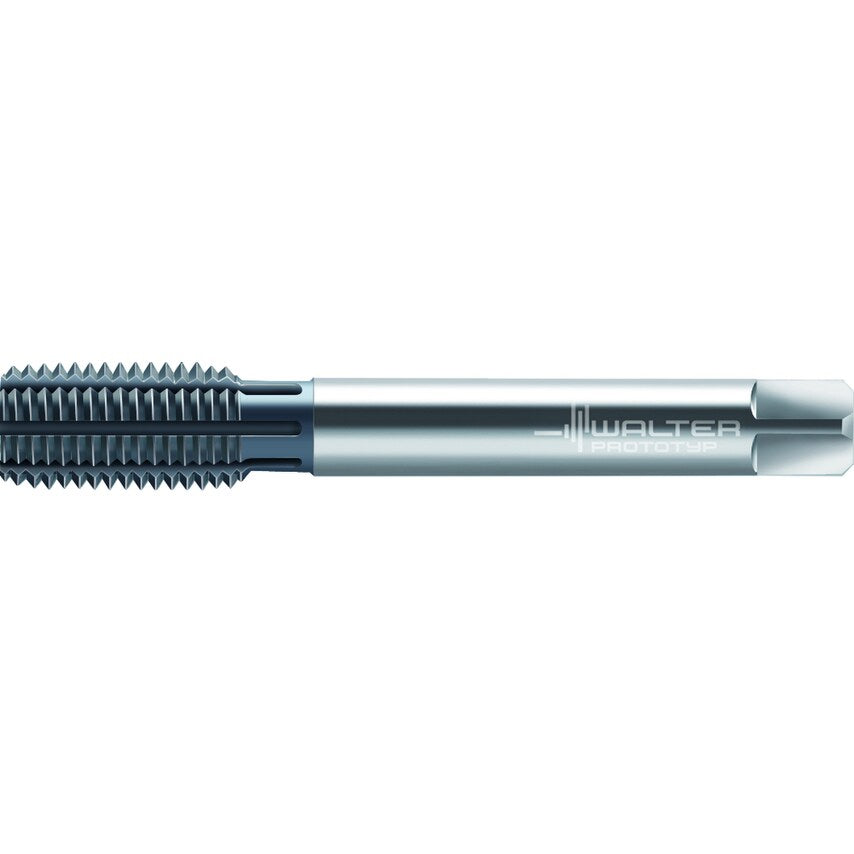

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3,5xD MF/6HX DIN 2174 Suitable for blind hole WW60EL Suitable for through hole MF 12x1.25 P=0.0492in
| Driving Square Length | 10mm |
| Connection Diameter | 9mm |
| Number of Grooves | 8 |
| Clamping Width | 7mm |
| Tool Designation | TC430-M12X1.25-L6-WW60EL |
| Thread Size | MF 12x1.25 |
| MFR Part No. | 7427801 |
| Functional Length | 100mm |
| Thread Pitch | 1.25mm |
| Cutting Edge Length | 13mm |
| Usable Length | 73mm |
