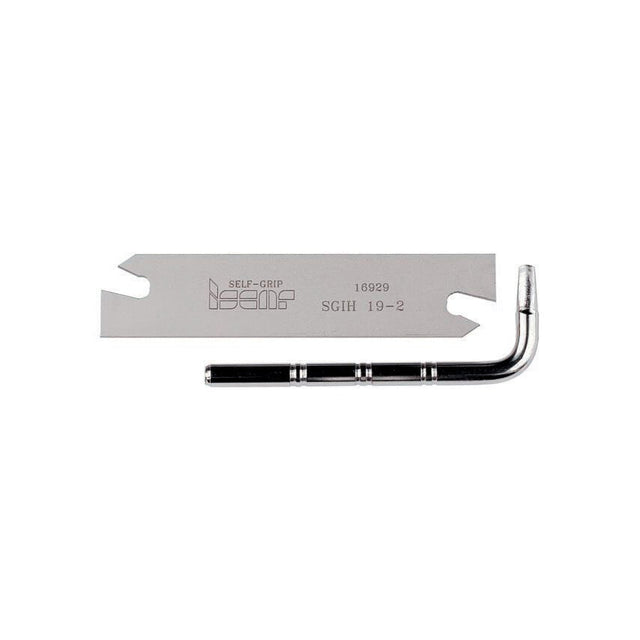

Self-Grip Parting & Grooving Blades
For all CNC lathes and manual lathes.
For grooves, parting off to center and chamfering.
Easy removal of inserts with extractor.
Multiple lead angles.
Chipbreaker on inserts allows for high speeds and feed rates.
Images are for illustration purposes only.
| Blade Height | 26.0mm |
| Blade Type | Blade |
| Seat Size | 3 |
| Maximum Grooving Width | 3.53mm |
| Minimum Grooving Width | 2.70mm |
| Series | SelfGrip |
| Cutting Height | 21.4mm |
| ISO Designation | SGIH 26-3 |
| Blade Length | 110mm |
| Insert Style | GTN/R/L |
| Cutting Application | Grooving | Parting |
| Maximum Grooving Depth | 37.5mm |
| Number of Pockets | 2 |
| Blade Width | 2.70mm |
| Workpiece Diameter | 75 |
| MFR Part No. | 2300612 |
