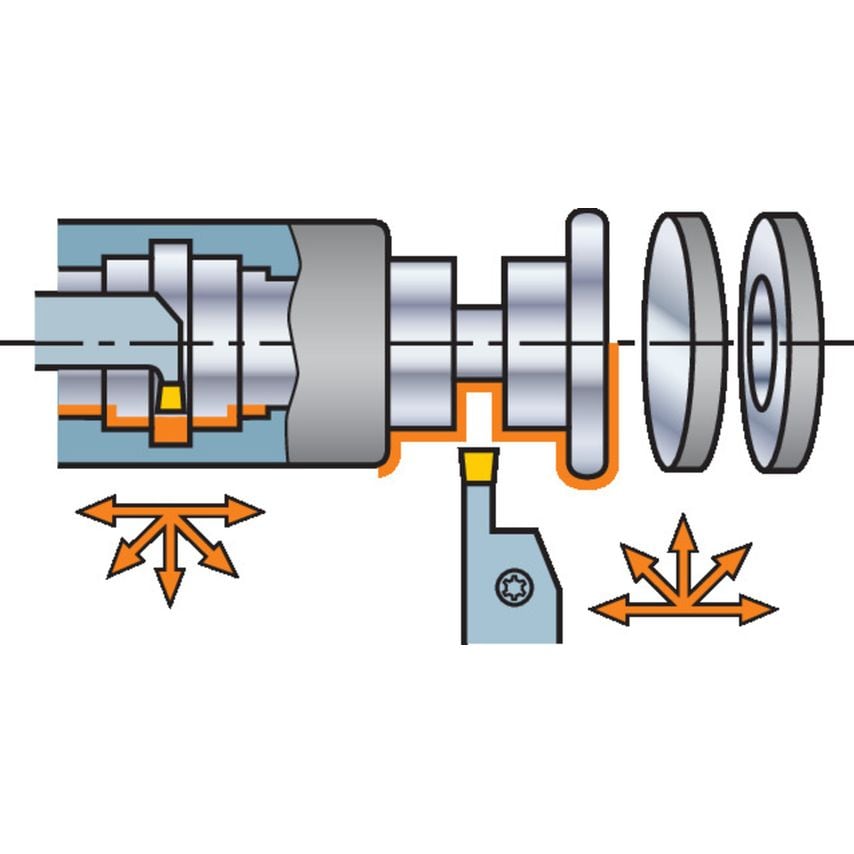

Product Range: CoroCut 1-2Tool Type: Parting and GroovingVersatile parting and grooving. Cost efficiency with two edges. Secure and efficient machining.With more than 700 standard inserts, CoroCut 1-2 covers all parting and grooving applications in most materials, from standardized grooves to parting off and profiling in heat resistant super alloys.Features & Benefits- Versatile parting and grooving- Geometries and grades for all application areas- Precision over and under coolantApplicationParting, external grooving, face grooving, internal grooving, profiling and hard part turningRoughing to finishingIn parting off and external grooving CoroCut 1-2 is a cost-efficient solution to depths where the 2-edged inserts can be used.

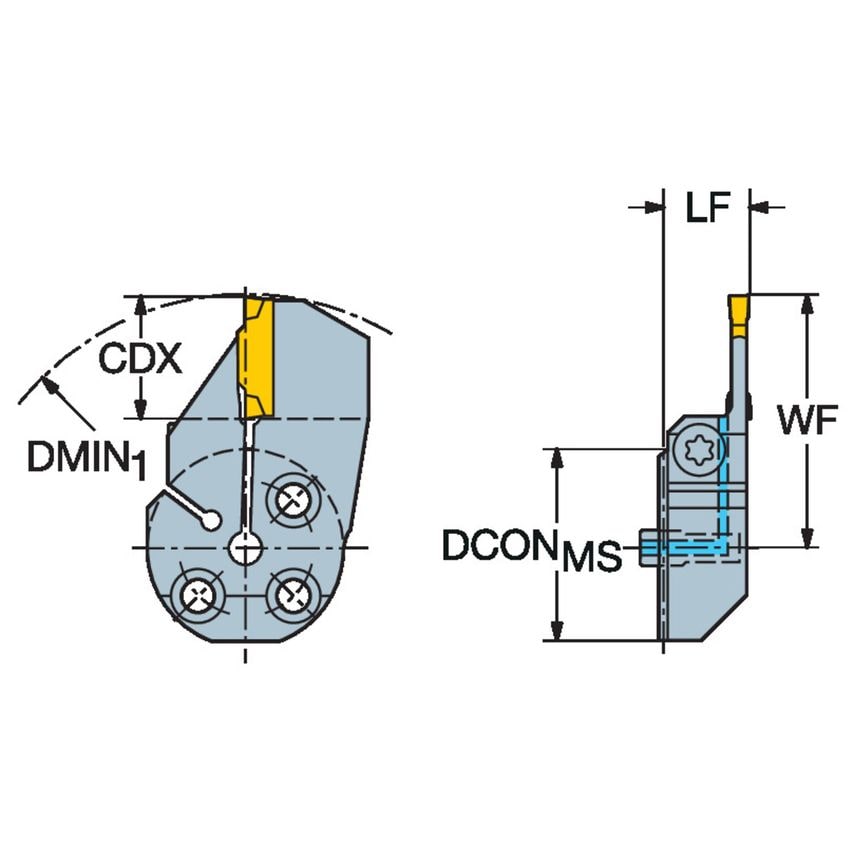

| Hand Preference | Left |
| Coolant Exit Style | 5 |
| Weight | 0.22kg |
| CoroPak | 4.2 |
| Minimum Bore Diameter | 95mm |
| Through Hole Function Property | Yes |
| Functional Length | 18mm |
| Maximum Overhang | 16mm |
| Unit Measured | Metric |
| MFR Part No. | 11807703 |
| Workpiece Side Body Angle | 90\u00b0 |
| Maximum Cutting Depth | 23mm |
| Coolant Entry Style | 1 |
| Connection Diameter | 40mm |
