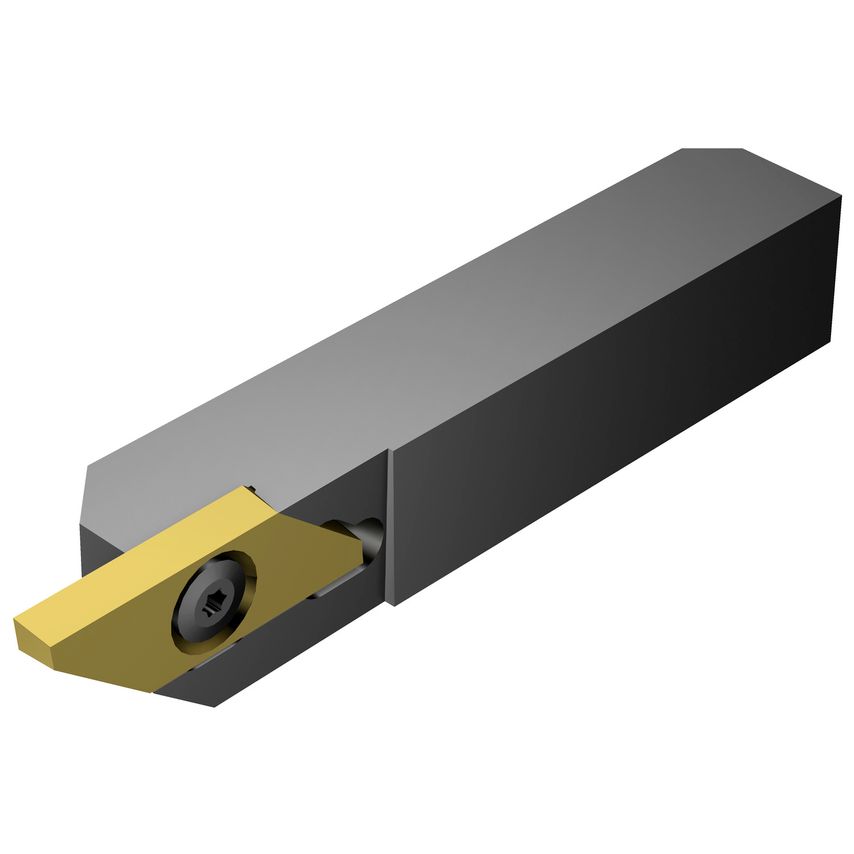

CoroCut XS is a tangentially mounted system for precision machining in sliding head machines and lathes. The system is for external parting, grooving, turning, backturning and threading applications. The extremely sharp cutting edges perform best at low feeds.Features & Benefits- External turning, small diameters- Turning, threading, parting and grooving- Close tolerances- All inserts fit into the same tool holder- Internal grooving at very small diameters- Designed to maintain the tool holder intact in case of insert breakage.Application- Parting-off in sliding head machines- Precision grooving at low speeds and feeds

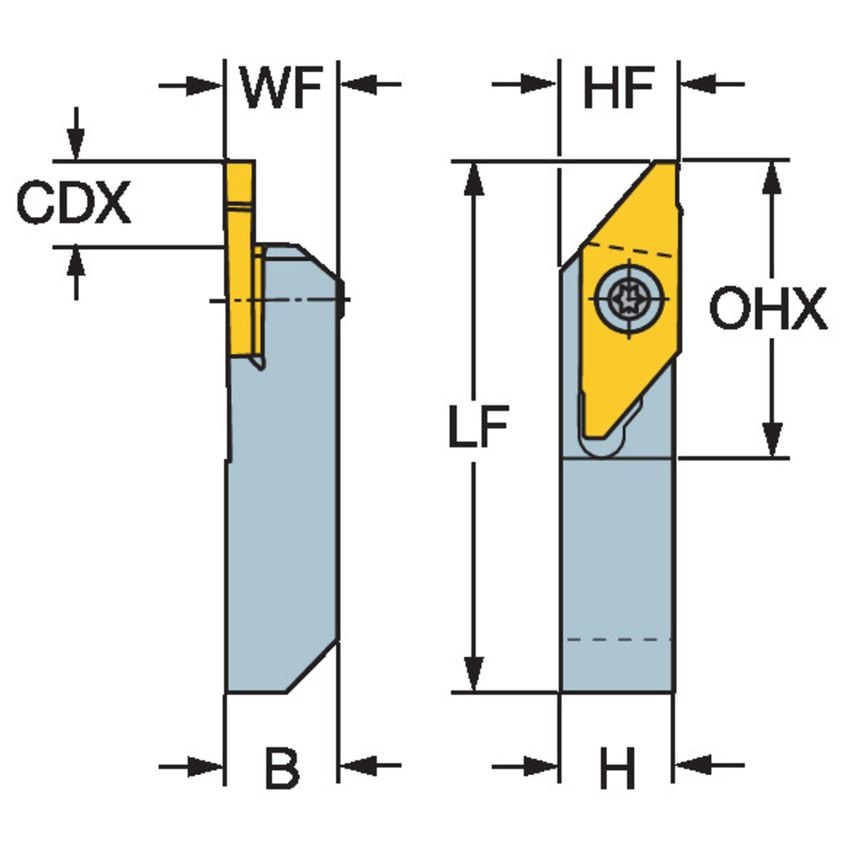

| Functional Length | 70mm |
| MFR Part No. | 12162135 |
| Maximum Cutting Depth | 8.5mm |
| Shank Width | 12mm |
| Hand Preference | Right |
| Weight | 0.11kg |
| Maximum Overhang | 27mm |
| Unit Measured | Metric |
| CoroPak | 6.2 |
| Workpiece Side Body Angle | 0\u00b0 |
| Coolant Entry Style | Without Coolant |
| Coolant Exit Style | 0 |
| Through Hole Function Property | Yes |
