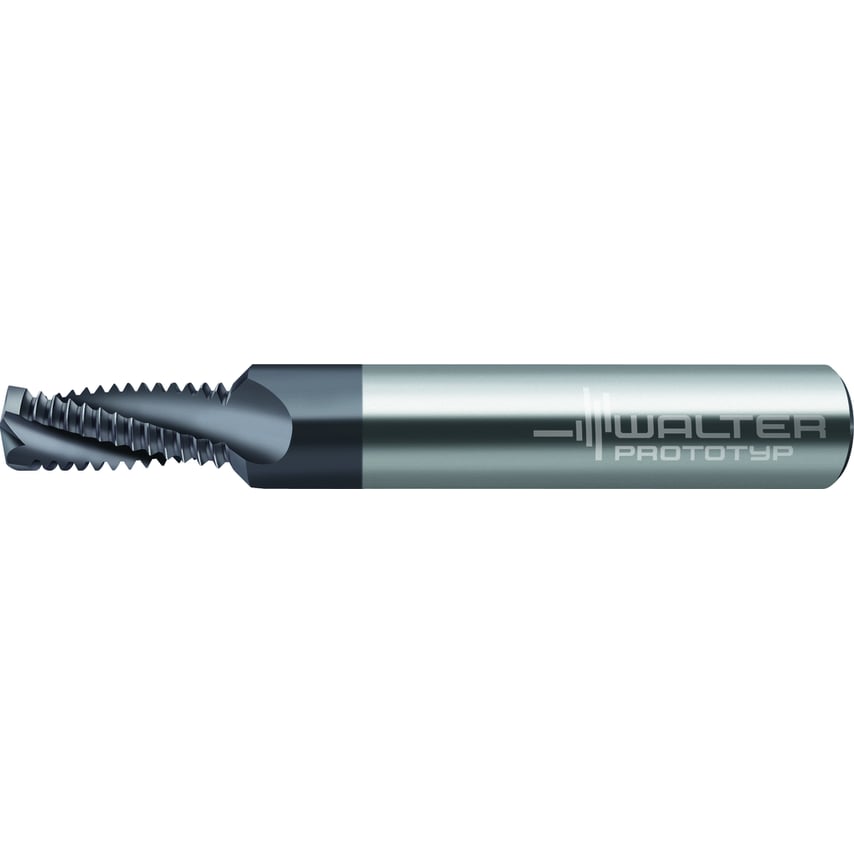

Solid carbide drill thread milling cutters TMD M TAX 2xD DIN 6535 HA shank coolant exit style code: axial inclined exit P=0.0591in Dc=0.3346in flute helix angle 27
| Cutting Diameter | 8.5mm |
| Usable Length | 23.7mm |
| Thread Pitch | 1.5mm |
| Tool Designation | H5075018-M10 |
| Flange Diameter | 10.3mm |
| Shank Diameter | 0.33in |
| Overall Length | 80mm |
| Connection Diameter | 12mm |
| Number of Flutes | 3 |
| Shank Diameter Length | 22.2mm |
| Cutting Edge Length | 18mm |
| MFR Part No. | 5910476 |
| Maximum Projection Length | 35mm |
