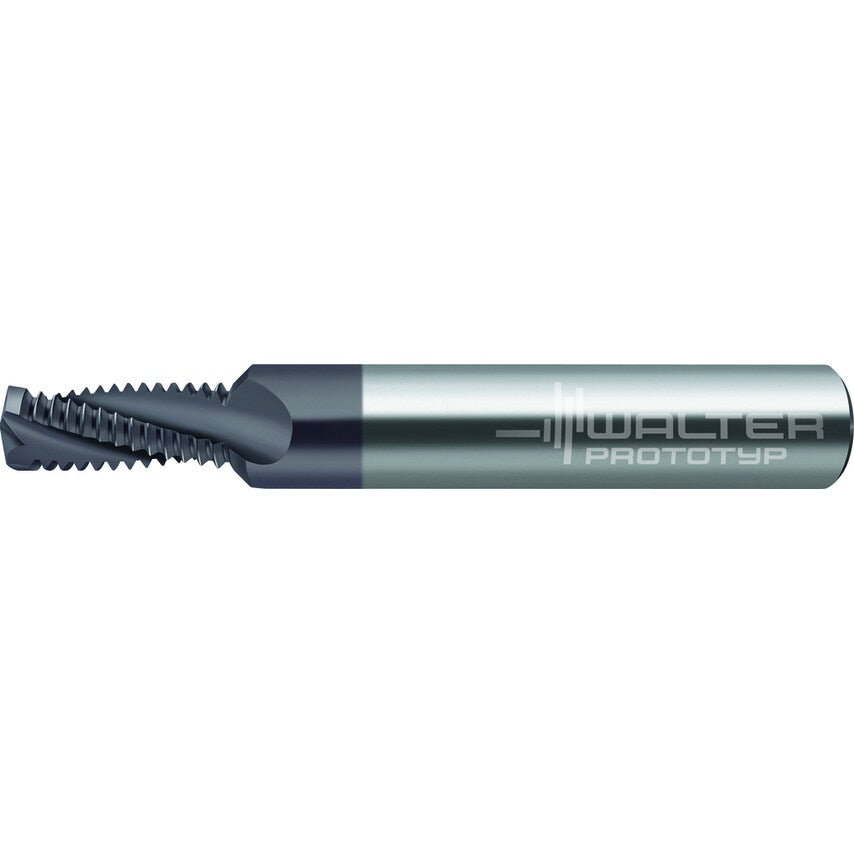

Solid carbide drill thread milling cutters TMD M NHC 2xD DIN 6535 HA shank coolant exit style code: axial inclined exit P=0.0394in Dc=0.1969in flute helix angle 27
| Overall Length | 62mm |
| Cutting Diameter | 5mm |
| Tool Designation | H5075011-M6 |
| Number of Flutes | 3 |
| Usable Length | 14.7mm |
| Shank Diameter Length | 13.8mm |
| Maximum Projection Length | 26mm |
| Thread Pitch | 1mm |
| Flange Diameter | 6.3mm |
| Connection Diameter | 8mm |
| MFR Part No. | 5910479 |
| Shank Diameter | 0.2in |
| Cutting Edge Length | 11mm |
