Series A1211

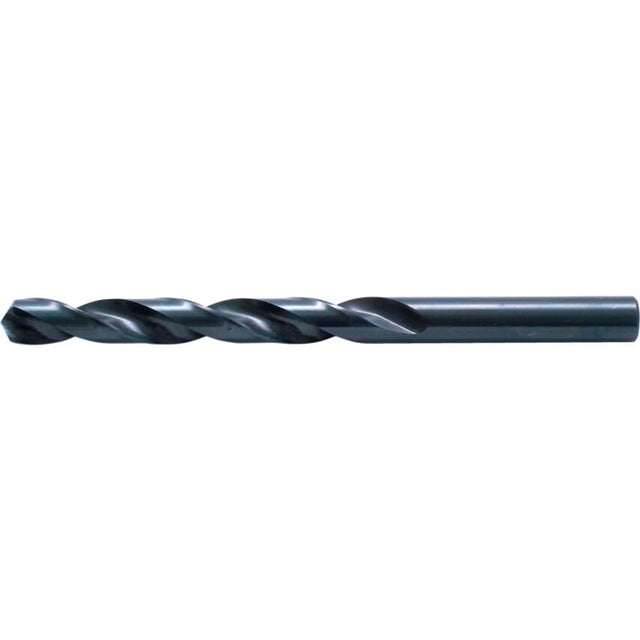

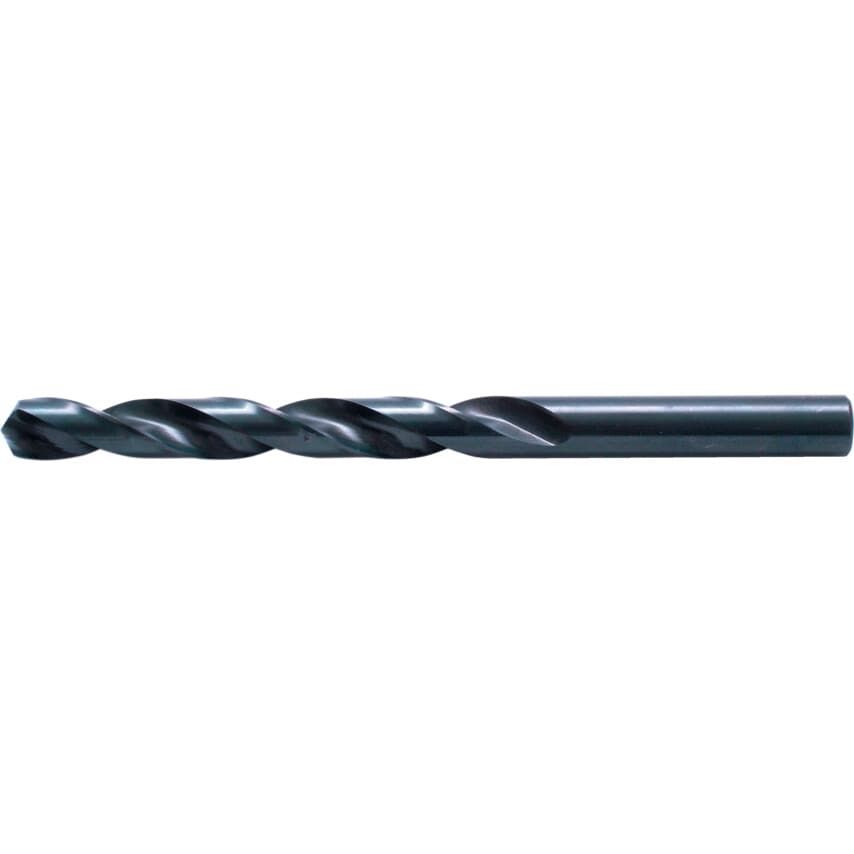

General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118, helix angle: normal, web thickness: standard, relief angle: 10 - 20, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328/DIN338RN.
Black Finish (W-Finish)
This is the most common surface finish and is the result of a steam tempering operation in which steam is passed over the product during a controlled tempering cycle, producing a black oxide layer. Black tools are generally recommended for ferrous applications where the oxide layer aids chip flow, helps to dissipate heat by retaining some coolant on the tool surface and also helps to prevent the tool from staining.
| Drill Diameter | 0.31mm |
| Number of Flutes | 2 |
| Standards Met | BS 328 | DIN 338 |
| Overall Length | 19mm |
| Point Angle | 118\u00b0 |
| Flute Length | 3.4mm |
| Finish/Coating | Steam Tempered |
| Helix Type | Normal Helix |
| Product Type | Jobber Drills |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Material | HSS |
| Web Thickness | Standard |
| Series | A1211 |
| Flute Construction | Ground flutes |
| Shank Diameter Tolerance | F11 |
| Drill Diameter Tolerance | H8 |
