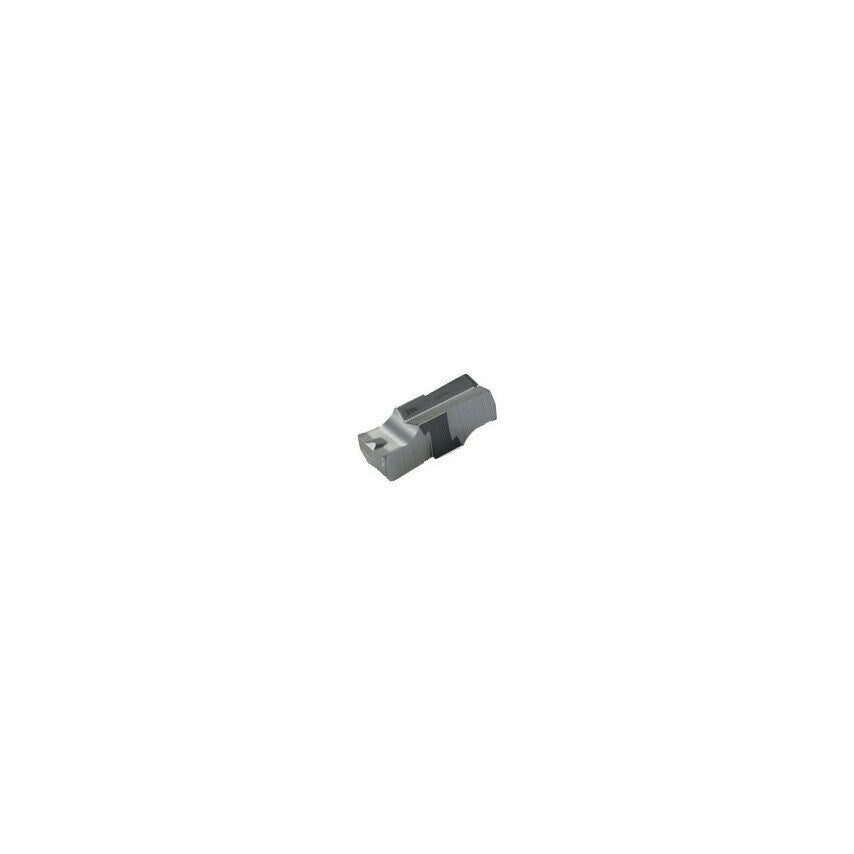

GIPI 4.00E-0.40 Insert Grade IC808

GIPI: Double-ended precision inserts with P-type chipformer for internal grooving and recessing at medium feeds. Grade : IC354 A thin PVD coated TiCN layer on a P40 substarte. High toughness. For general Applications in parting and grooving steel, alloy and stainless steel atmedium to high cutting speeds. ISO Range - P/M/K: (P20-P40)(M10-M30) Grade or Coating Type: PVD Coating Layers: TiCN Grade : IC328 A thin PVD coated TiCN layer on a P45-K40 substrate. Very high toughness. For milling, parting and grooving of steel, stainless and alloy steels at low to medium cutting speeds and for unstable machining conditions. ISO Range - P/M/K: (P25-P40)(M30-M40) ISO Range - H/S/N: (S20-S30) Grade or Coating Type: PVD Coating Layers: TiCN Grade : IC20 Used for semifinishing, finishing and semiroughing of aluminum, cast iron and stainless steel. An uncoated carbide grade. ISO Range - P/M/K: (M10-M25)(K10-K20) ISO Range - H/S/N: (H05-H15)(S05-S20)(N05-N25) Grade or Coating Type: UN-COATED Coating Layers: Uncoated Grade : IC808 A hard, fine grain substrate with excellent chipping resistance, combined with a new 'SUMO TEC' TiAlN PVD coating. Provides high wear resistance. Recommended for a very wide range of materials. ISO Range - P/M/K: (P15-P30)(M20-M30) ISO Range - H/S/N: (H10-H20)(S10-S25) Grade or Coating Type: PVD Coating Layers: TiAlN/AlTiN+TiN Grade : IC908 A hard, fine grain substrate with excellent chipping resistance, combined with a new TiAlN PVD coating. Provides high wear and oxidation resistance. Recommended for a very wide range of materials applications and machining conditions. ISO Range - P/M/K: (P15-P30)(M20-M30)(K20-K40) ISO Range - H/S/N: (H10-H20)(S10-S25) Grade or Coating Type: PVD Coating Layers: TiAlN Grade : IC830 A 'SUMO TEC' AlTiN+TiN PVD coated grade. Recommended for interrupted cut and heavy operations on stainless steel, high temperature and alloyed steel. High toughness and wear resistance. ISO Range - P/M/K: (P20-P40)(M25-M35) ISO Range - H/S/N: (S15-S30) Grade or Coating Type: PVD Coating Layers: AlTiN+TiN Grade : IC9054 A CVD multilayer TiCN / Al2O3 / TiN coated grade. A tough grade, used for and grooving and turnig carbon, alloyed and stainless steel, at medium to high cutting speed. ISO Range - P/M/K: (P15-P40)(M10-M30) Grade or Coating Type: CVD Coating Layers: TiCN+Al2O3+TiN Grade : IC8250 A tough substrate with a cobalt enriched layer combined with MTCVD TiCN and a thick alpha Al2O3 CVD coating. Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance. ISO Range - P/M/K: (P10-P35)(M05-M20) Grade or Coating Type: CVD Coating Layers: TiCN+Al2O3+TiN Grade : IC656 A CVD coated grade used for semiroughing and medium machining at medium speed and high to medium feed of carbon, tool and stainless steel. ISO Range - P/M/K: (P20-P40)(M20-M40) Grade or Coating Type: CVD Coating Layers: TiCN+TiC+TiN

Manufacturer Grade

IC808
