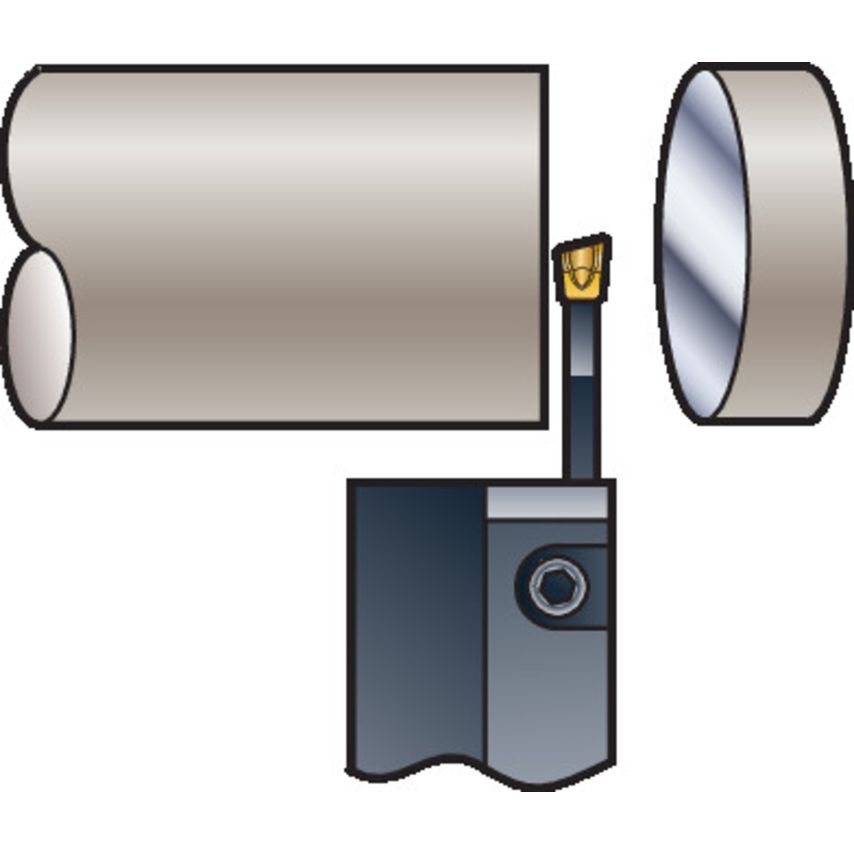

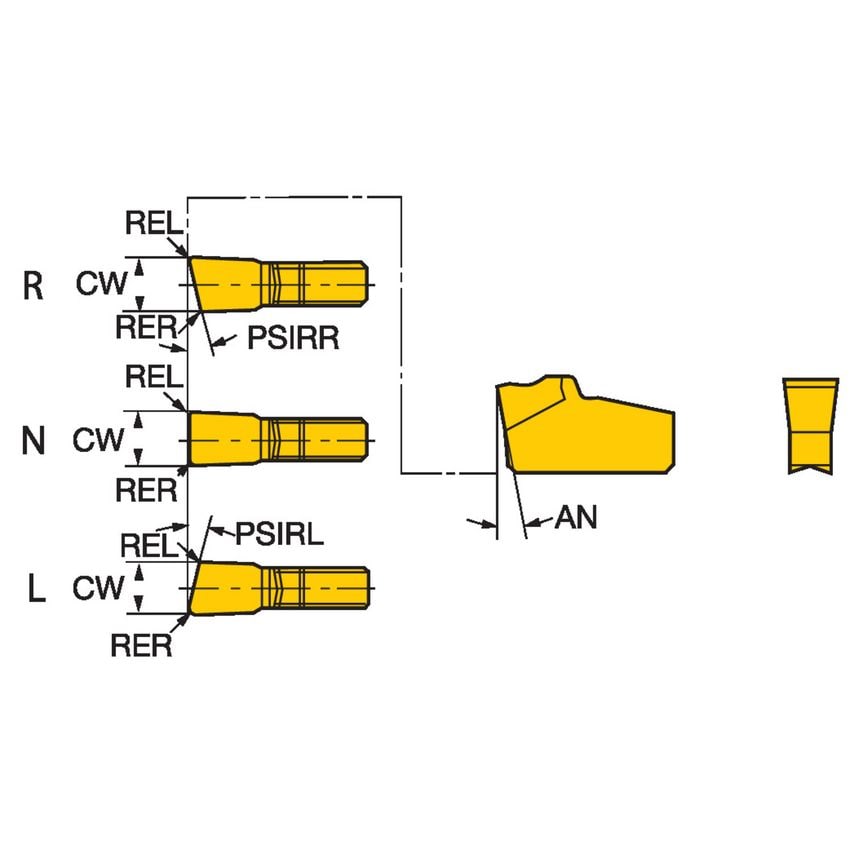

T-Max Q-Cut insert for parting
| Insert Size/Shape | Q-Cut 151.2 - Size 20 |
| Coating Type | TiAlN |
| Unit Measured | Metric |
| Cutting Width | 38mm |
| CoroPak | 5 |
| Coating Process Type | PVD |
| Machine Side Body Angle | 0\u00b0 |
| Grade | 1125 |
| Through Hole Function Property | Yes |
| Insert Mounting Style | Clamp |
| MFR Part No. | 5741517 |
| Hand Preference | Right |
| Cutting Edge Count | 1 |
| Insert Style | Clamp |
| Clearance Angle Major | 7\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
