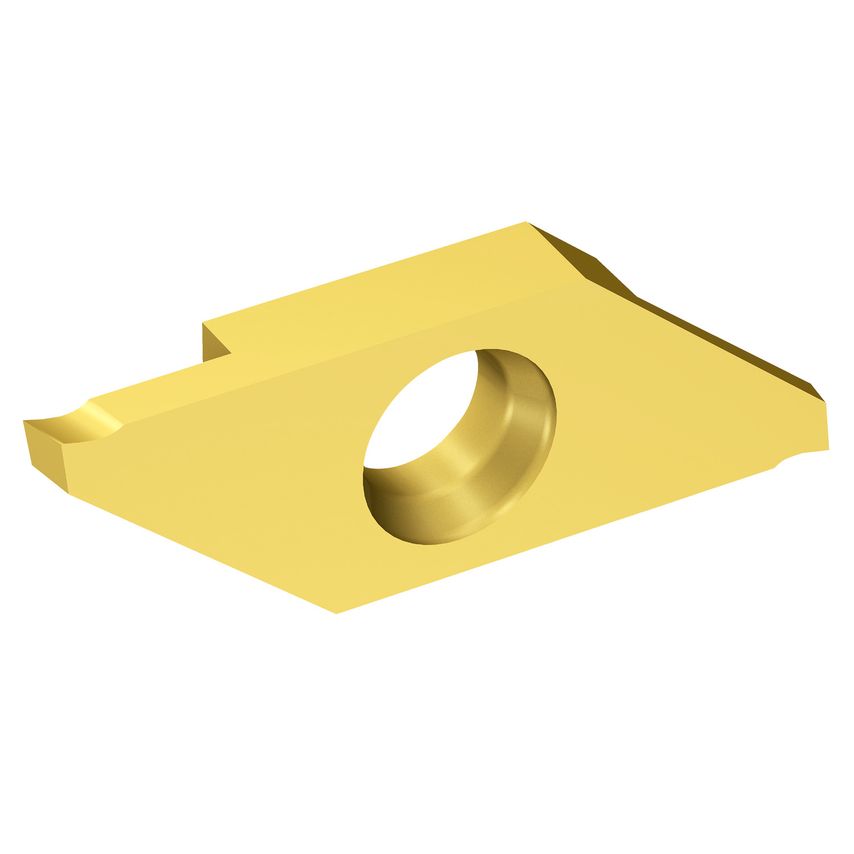

CoroCut XS is a tangentially mounted system for precision machining in sliding head machines and lathes. The system is for external parting, grooving, turning, backturning and threading applications. The extremely sharp cutting edges perform best at low feeds.Features & Benefits- External turning, small diameters- Turning, threading, parting and grooving- Close tolerances- All inserts fit into the same tool holder- Internal grooving at very small diameters- Designed to maintain the tool holder intact in case of insert breakage.Application- Parting-off in sliding head machines- Precision grooving at low speeds and feeds
| MFR Part No. | 5733336 |
| Maximum Depth of Cut | 6.3mm |
| Through Hole Function Property | Yes |
| Insert Mounting Style | Screw/Clamp |
| Hand Preference | Left |
| Cutting Edge Count | 2 |
| Weight | 7.6g |
| Grade | 1025 |
| Coating Process Type | PVD |
| CoroPak | 80 |
| Clearance Angle Major | 6\u00b0 |
| Maximum Cutting Depth | 6.3mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Unit Measured | Metric |
| Coating Type | TiAlN+TiN |
| Cutting Width | 38mm |
| Machine Side Body Angle | 0\u00b0 |
| Insert Size/Shape | CoroCut XS - Size 3L |
| Insert Style | Screw/Clamp |
