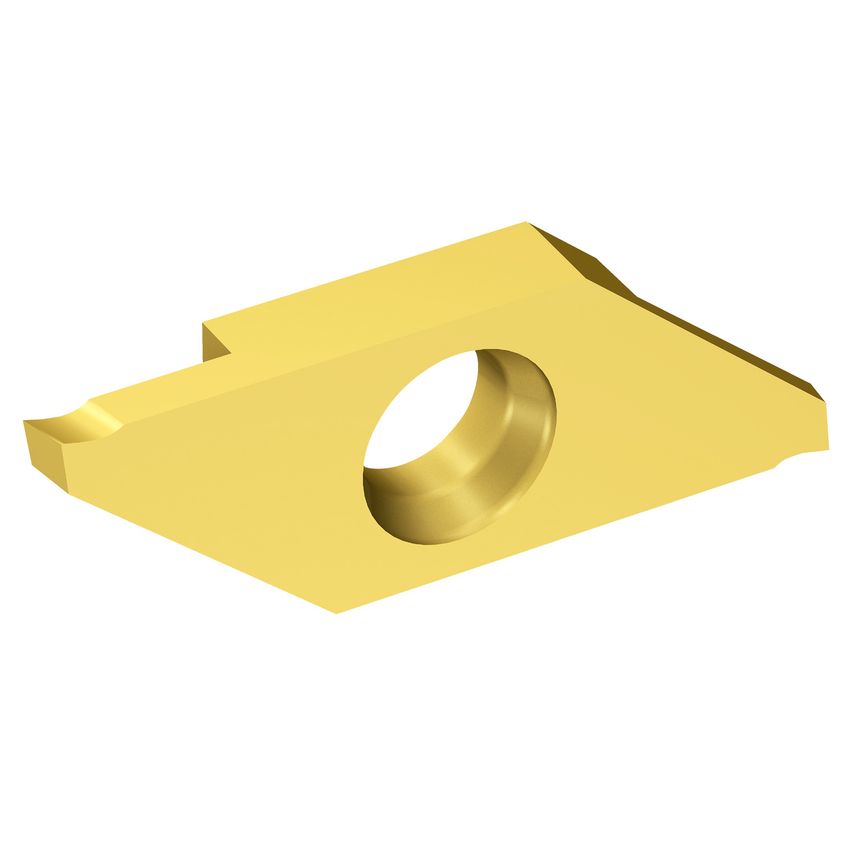

CoroCut XS is a tangentially mounted system for precision machining in sliding head machines and lathes. The system is for external parting, grooving, turning, backturning and threading applications. The extremely sharp cutting edges perform best at low feeds.Features & Benefits- External turning, small diameters- Turning, threading, parting and grooving- Close tolerances- All inserts fit into the same tool holder- Internal grooving at very small diameters- Designed to maintain the tool holder intact in case of insert breakage.Application- Parting-off in sliding head machines- Precision grooving at low speeds and feeds
| Grade | 1025 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 4.5g |
| Coating Type | TiAlN+TiN |
| Insert Mounting Style | Screw/Clamp |
| Maximum Cutting Depth | 6.3mm |
| Insert Style | Screw/Clamp |
| Clearance Angle Major | 6\u00b0 |
| Maximum Depth of Cut | 6.3mm |
| MFR Part No. | 5733324 |
| Coating Process Type | PVD |
| Machine Side Body Angle | 0\u00b0 |
| Cutting Edge Count | 2 |
| Insert Size/Shape | CoroCut XS - Size 3L |
| Cutting Width | 38mm |
| Through Hole Function Property | Yes |
| CoroPak | 75 |
| Hand Preference | Left |
| Unit Measured | Metric |
