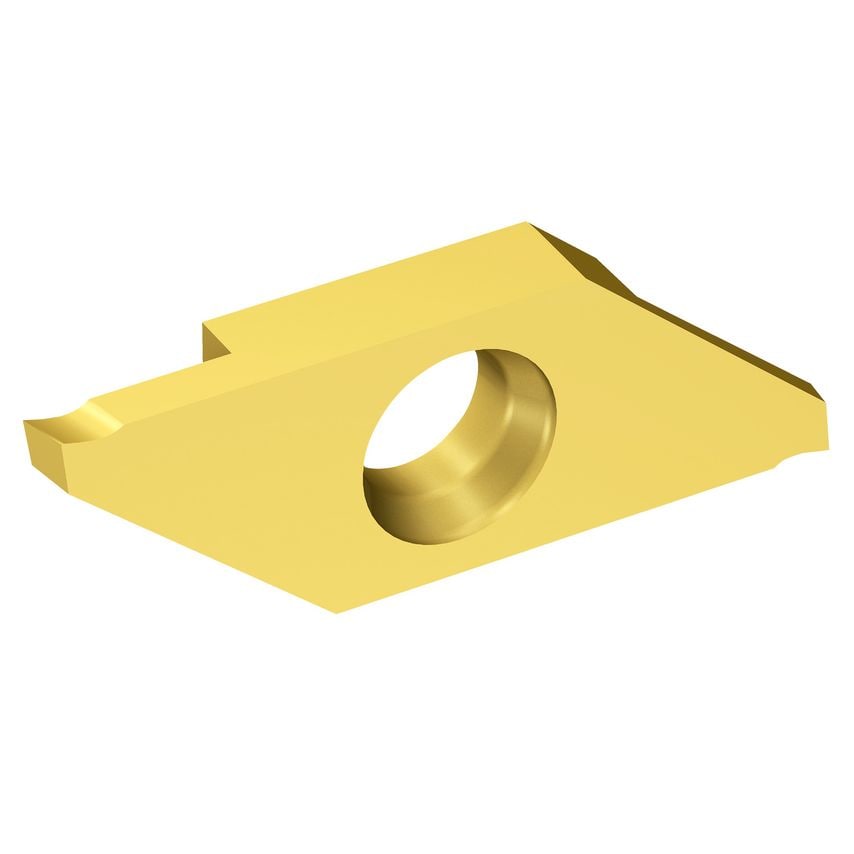

CoroCut XS is a tangentially mounted system for precision machining in sliding head machines and lathes. The system is for external parting, grooving, turning, backturning and threading applications. The extremely sharp cutting edges perform best at low feeds.Features & Benefits- External turning, small diameters- Turning, threading, parting and grooving- Close tolerances- All inserts fit into the same tool holder- Internal grooving at very small diameters- Designed to maintain the tool holder intact in case of insert breakage.Application- Parting-off in sliding head machines- Precision grooving at low speeds and feeds
| Cutting Width | 38mm |
| Maximum Depth of Cut | 6.3mm |
| CoroPak | 80 |
| Coating Type | TiAlN+TiN |
| Maximum Cutting Depth | 6.3mm |
| Insert Size/Shape | CoroCut XS - Size 3L |
| Insert Mounting Style | Screw/Clamp |
| Grade | 1025 |
| Through Hole Function Property | Yes |
| Machine Side Body Angle | 0\u00b0 |
| Hand Preference | Left |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Clearance Angle Major | 6\u00b0 |
| Coating Process Type | PVD |
| Unit Measured | Metric |
| Insert Style | Screw/Clamp |
| Cutting Edge Count | 2 |
| MFR Part No. | 5733323 |
