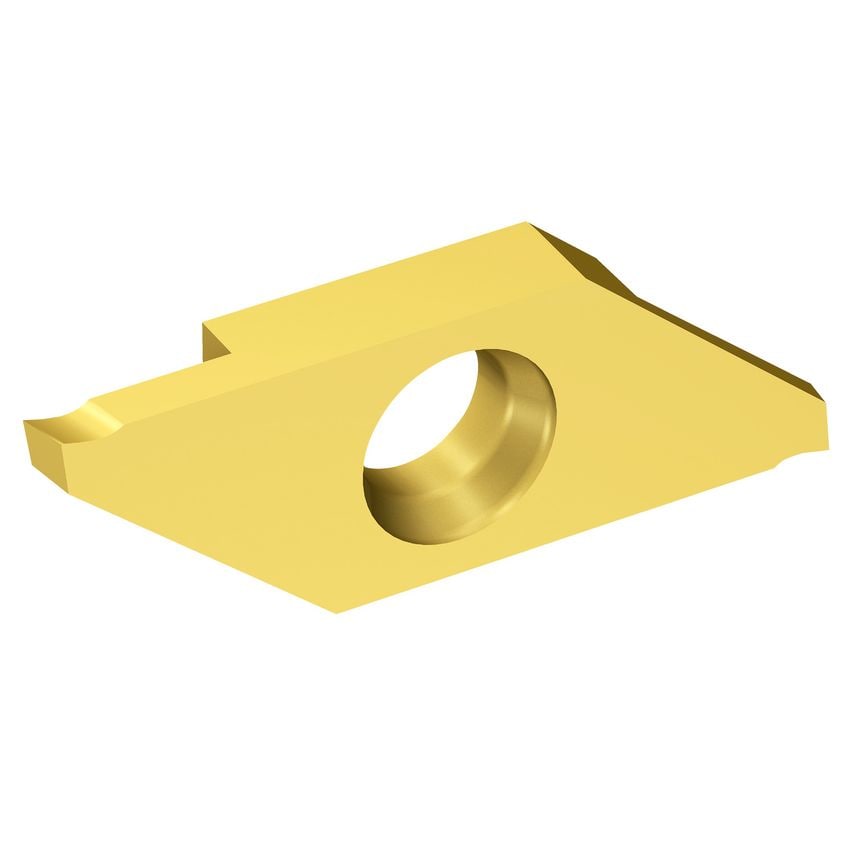

CoroCut XS is a tangentially mounted system for precision machining in sliding head machines and lathes. The system is for external parting, grooving, turning, backturning and threading applications. The extremely sharp cutting edges perform best at low feeds.Features & Benefits- External turning, small diameters- Turning, threading, parting and grooving- Close tolerances- All inserts fit into the same tool holder- Internal grooving at very small diameters- Designed to maintain the tool holder intact in case of insert breakage.Application- Parting-off in sliding head machines- Precision grooving at low speeds and feeds
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Edge Count | 2 |
| Weight | 5.1g |
| Grade | 1025 |
| Maximum Depth of Cut | 4.3mm |
| Insert Style | Screw/Clamp |
| Maximum Cutting Depth | 4.3mm |
| Machine Side Body Angle | 0\u00b0 |
| Cutting Width | 38mm |
| Insert Mounting Style | Screw/Clamp |
| Through Hole Function Property | Yes |
| Insert Size/Shape | CoroCut XS - Size 3R |
| Hand Preference | Right |
| Clearance Angle Major | 6\u00b0 |
| CoroPak | 76 |
| Unit Measured | Metric |
| Coating Type | TiAlN+TiN |
| Coating Process Type | PVD |
| MFR Part No. | 5733379 |
