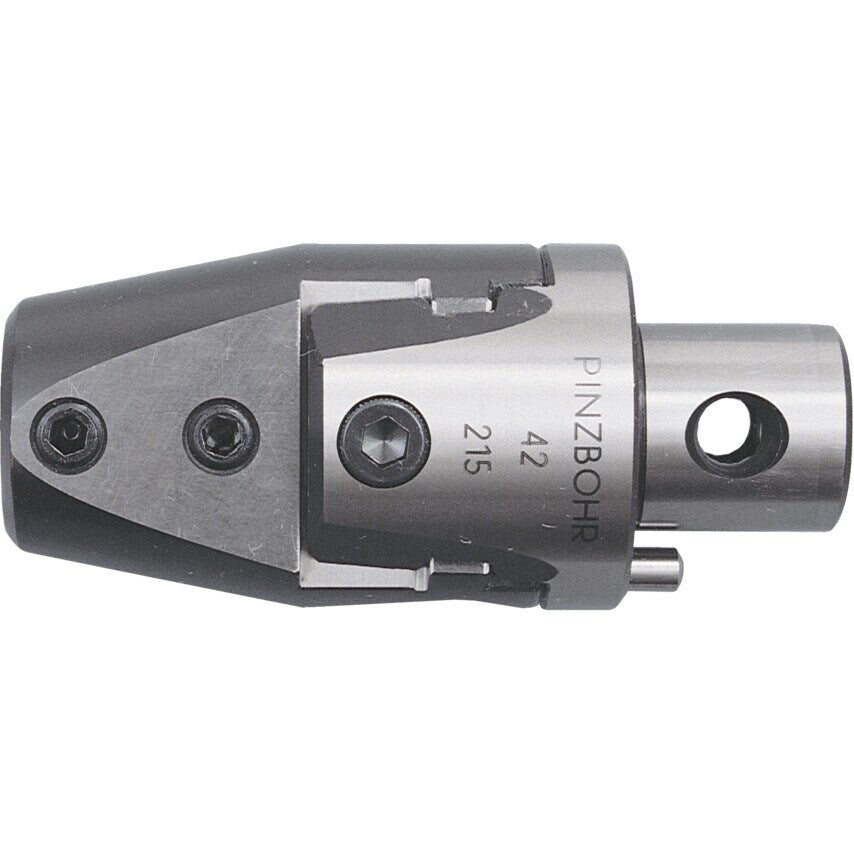

Used in combination with indexable insert I.S.O. boring bars, these units can produce bores down to 5.5mm diameter and up to 34mm diameter. These MICRO heads fit the standard Pinzbohr arbors with connection diameters (SD) of 27, 32 or 42mm. Graduated precision dial readout to 0.01mm.Note: If ground inserts used, please specify left hand for boring. Bores as small as 5.5mm diameter can be produced by using stepped bars.
| MFR Part No. | A42012 |
| Compatible Boring Bar Shank Diameter | 12mm |
| Includes | Adjusting Key | Locking Key |
| Series | Micro |
| Body Designation | A42-012mm |
| Boring Head Shank Diameter | 24mm |
| Overall Length | 100mm |
| Minimum Bore Diameter | 16mm |
| Head Type | ISO Boring Bar Head |
| Maximum Bore Diameter | 34mm |
| Head Length | 70mm |
