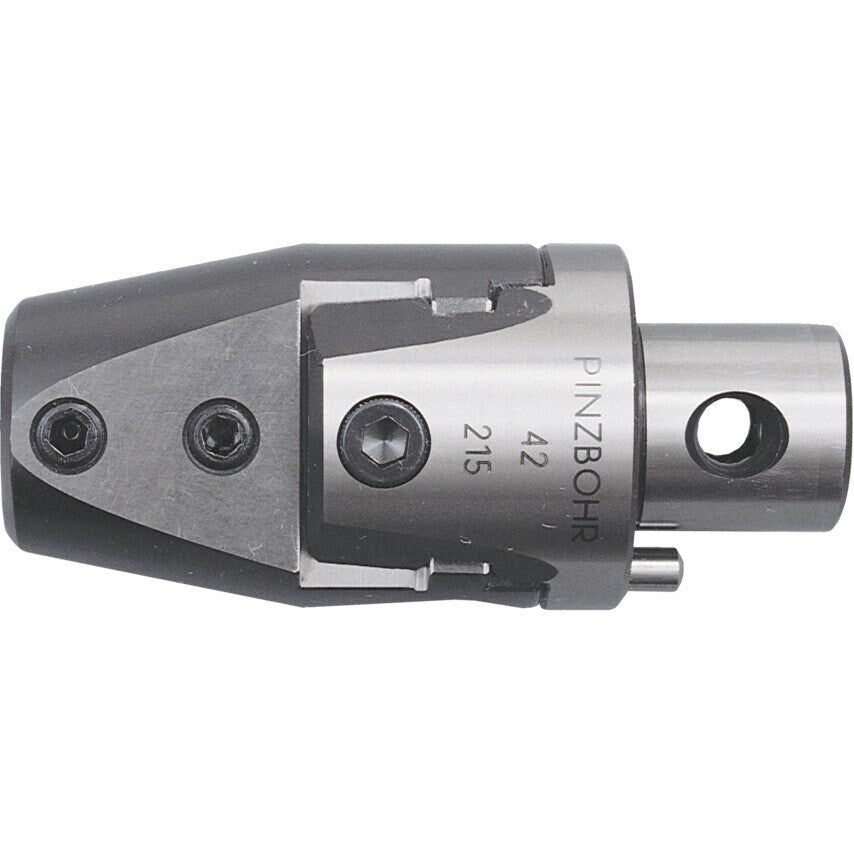

Used in combination with indexable insert I.S.O. boring bars, these units can produce bores down to 5.5mm diameter and up to 34mm diameter. These MICRO heads fit the standard Pinzbohr arbors with connection diameters (SD) of 27, 32 or 42mm. Graduated precision dial readout to 0.01mm.Note: If ground inserts used, please specify left hand for boring. Bores as small as 5.5mm diameter can be produced by using stepped bars.
| Includes | Adjusting Key | Locking Key |
| Overall Length | 80mm |
| Body Designation | A27-008mm |
| Boring Head Shank Diameter | 15mm |
| Series | Micro |
| Compatible Boring Bar Shank Diameter | 8mm |
| Maximum Bore Diameter | 20mm |
| Head Type | ISO Boring Bar Head |
| Head Length | 50mm |
| MFR Part No. | A 027 008 |
| Minimum Bore Diameter | 8mm |
