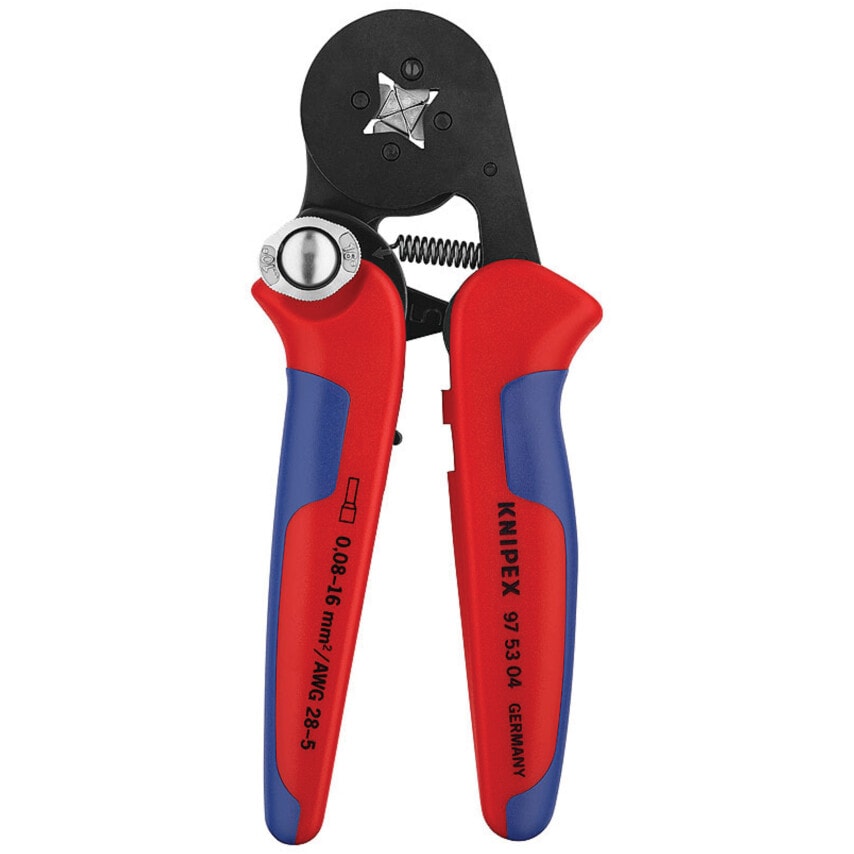

High quality handheld crimping tool for bootlace ferrule. Made from chrome vanadium electric steel and designed to automatically adjust to the size of the bootlace ferrule to make sure accurate work is performed with each crimp. A well designed transmission ratio which is hand friendly providing a comfortable grip and allowing the user to crimp easily with the perfect end result.
Features and Benefits
97 53 04
Square compression now for end sleeves (ferrules) up to 16 mm
Square compression for ideal contact surfaces in the clamp connection
Suitable in particular for all twin end sleeves (ferrules) up to 2 x 6 mm or 2 x AWG 8
Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
97 53 14
Expanded capacity of hexagonal crimping up to 10 mm
Hexagonal compression for confined connection dimensions
Suitable in particular for all twin end sleeves (ferrules) up to 2 x 4 mm or 2 x AWG 10
Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
97 53 18
Square crimp profile, high capacity range of 0.14 to 16 mm
360 rotatable crimping die; with 8 tactile locking positions
Crimping of twin end sleeves (ferrules) up to 2 x 6 mm possible
Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
Re-adjustable pressure calibration
Typical Application
Crimping
Notes
Tools have been precisely calibrated in the factory
| Product Type | Crimping Pliers |
| MFR Part No. | 97 53 04 |
| Handle Cover Material | Bi-Material |
| Non Sparking | No |
| Number of Pieces | 1 |
| Jaw Material | Steel |
| Overall Length | 180mm |
| Tool/Jaw Features | Self-Adjusting |
| Compatible Connector | Wire Ferrule |
| Tool Material | Steel |
| Type | Crimping Pliers |
| Capacity | 0.08 - 10 + 16 mm\u00b2 |
| Standards Met | DIN 46228 |
| For Use With | Crimping |
