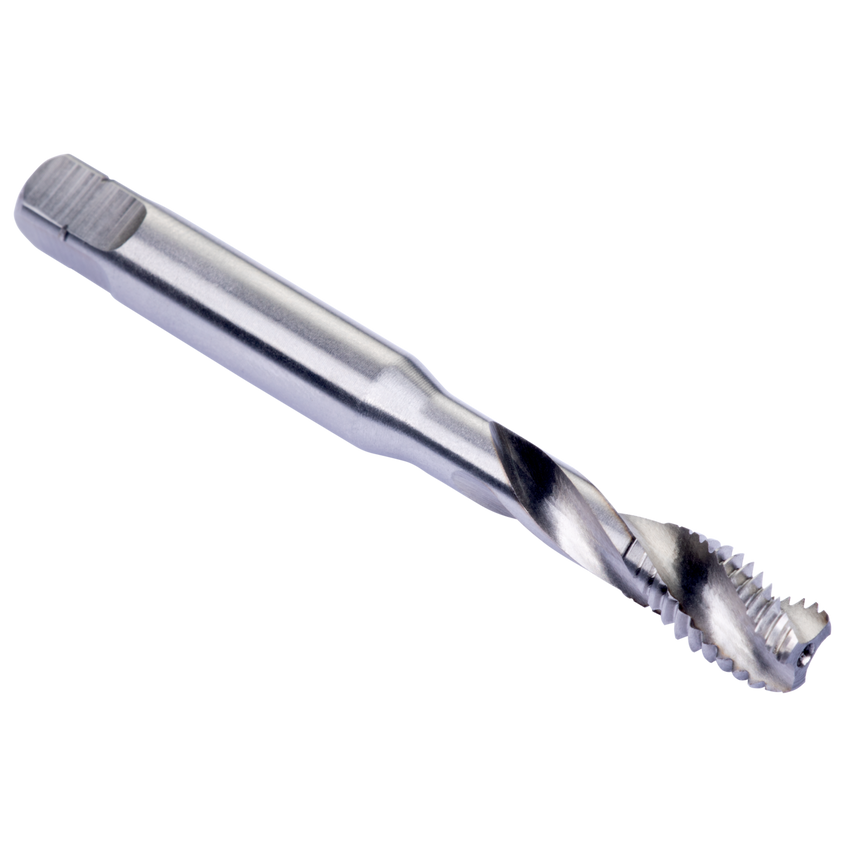

E557 (M) M6 HSS Spiral Flute Power Tool Tap, Metric, ISO Standard

HSS Spiral Flute Power Tool Tap, Metric, ISO Standard Material ID: 8180410 Spiral Flute Power Tool Tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3mm shank and 5.0mm square drive, HSS with bright finish and 35 helix angle for 2xD blind hole threading in general purpose applications Bright finish Prevents work piece material from sticking to the cutting edge Simple, strong design in high-quality HSS Cost Effective solution for general usage Spiral flute Designed for efficient threading of blind holes Shorter ISO Standard design Stable and reliable performance, up to 2 x d hole depth Description Thread diameter size (TDZ) 6 Premachined hole diameter - millimeter (PHD) 5 mm Thread pitch - millimeter (TP) 1 mm Overall length - millimeter (OAL) 66 mm Threading length - millimeter (THL) 12 mm Usable Length - millimeter (LU) 30 mm Connection diameter - millimeter (DCON MS) 6.3 mm Clamping width - millimeter (WSC) 5 mm Clamping Length - millimeter (LSC) 8 mm Flute count (NOF) 3

Tap Type	Sprial Flute
MFR Part No.	E557M6
Overall Length	66mm
Material	HSS
Shank Diameter	6mm
Thread Size	M6
Chamfer	Spiral Flute
Thread Direction	Right Hnd
Finish/Coating	Bright
