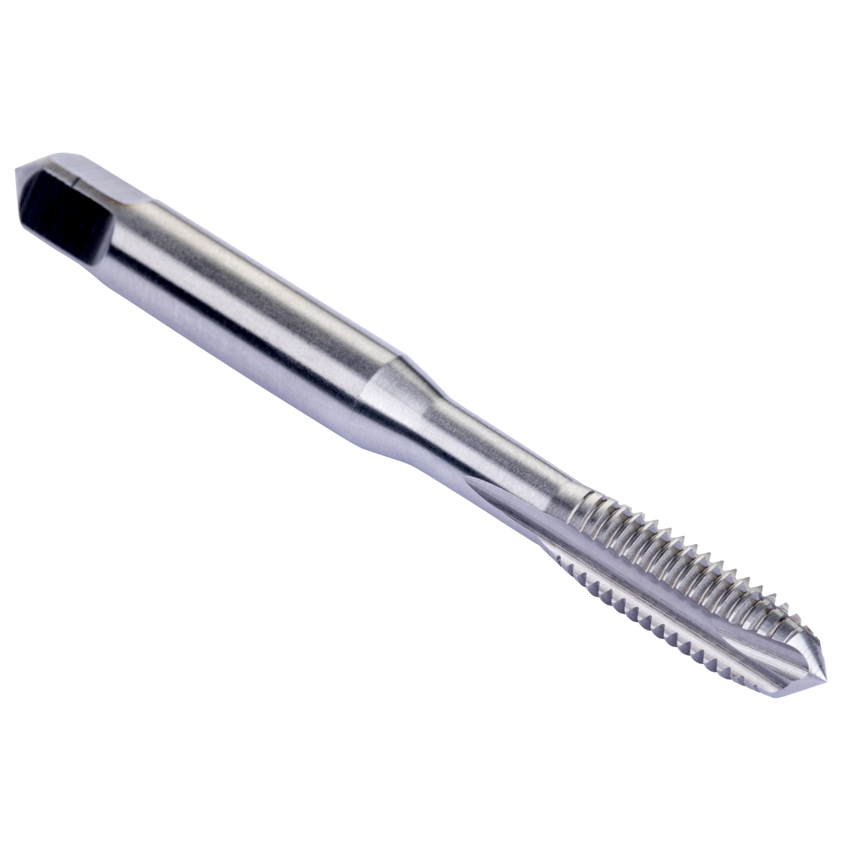

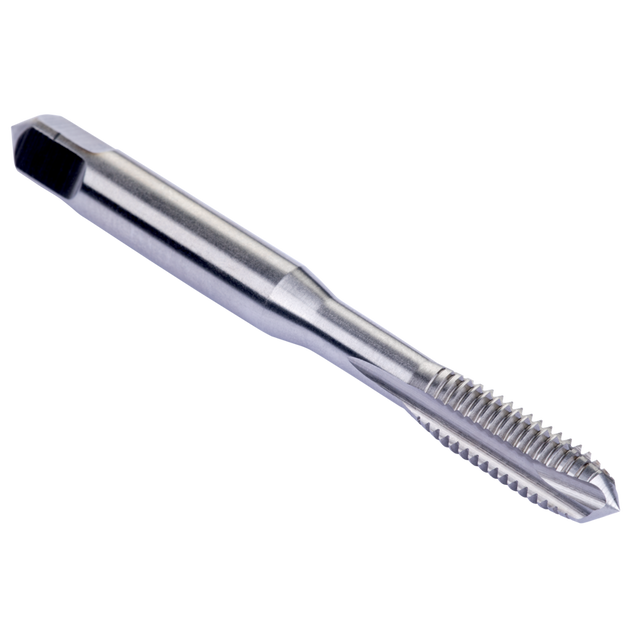

E556 (M) M5 HSS Spiral Point Power Tool Tap, Metric, ISO Standard

HSS Spiral Point Power Tool Tap, Metric, ISO Standard Material ID: 8180402 Spiral Point Power Tool Tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, HSS with bright finish for 2xD through hole threading in general purpose applications Bright finish Prevents work piece material from sticking to the cutting edge Simple, strong design in high-quality HSS Cost Effective solution for general usage Spiral point Designed for efficient threading of through holes Shorter ISO Standard design Stable and reliable performance, up to 2 x d hole depth Description Thread diameter size (TDZ) 5 Premachined hole diameter - millimeter (PHD) 4.2 mm Thread pitch - millimeter (TP) 0.8 mm Overall length - millimeter (OAL) 58 mm Threading length - millimeter (THL) 16 mm Usable Length - millimeter (LU) 25 mm Connection diameter - millimeter (DCON MS) 5 mm Clamping width - millimeter (WSC) 4 mm Clamping Length - millimeter (LSC) 7 mm Flute count (NOF) 3

Thread Length	2mm
Shank Diameter	5mm
Thread Direction	Right Hnd
Material	HSS
Tap Type	Spiral Point
Overall Length	58mm
Finish/Coating	Bright
MFR Part No.	E556M5
Chamfer	Spiral Flute
