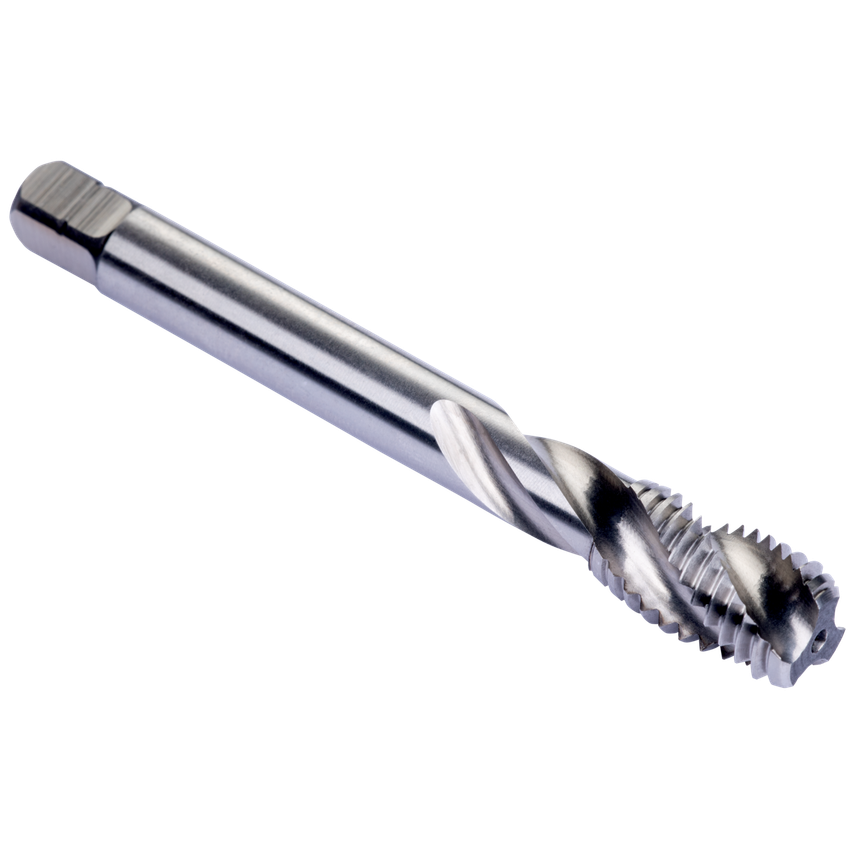

E557 (M) M12 HSS Spiral Flute Power Tool Tap, Metric, ISO Standard

HSS Spiral Flute Power Tool Tap, Metric, ISO Standard Material ID: 8180413 Spiral Flute Power Tool Tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, HSS with bright finish and 35 helix angle for 2xD blind hole threading in general purpose applications Bright finish Prevents work piece material from sticking to the cutting edge Simple, strong design in high-quality HSS Cost Effective solution for general usage Spiral flute Designed for efficient threading of blind holes Shorter ISO Standard design Stable and reliable performance, up to 2 x d hole depth Description Thread diameter size (TDZ) 12 Premachined hole diameter - millimeter (PHD) 10.3 mm Thread pitch - millimeter (TP) 1.75 mm Overall length - millimeter (OAL) 89 mm Threading length - millimeter (THL) 21 mm Connection diameter - millimeter (DCON MS) 9 mm Clamping width - millimeter (WSC) 7.1 mm Clamping Length - millimeter (LSC) 10 mm Flute count (NOF) 3

Overall Length	89mm
MFR Part No.	E557M12
Shank Diameter	12mm
Chamfer	Spiral Flute
Finish/Coating	Bright
Thread Size	M12
Tap Type	Sprial Flute
Thread Direction	Right Hnd
Material	HSS
