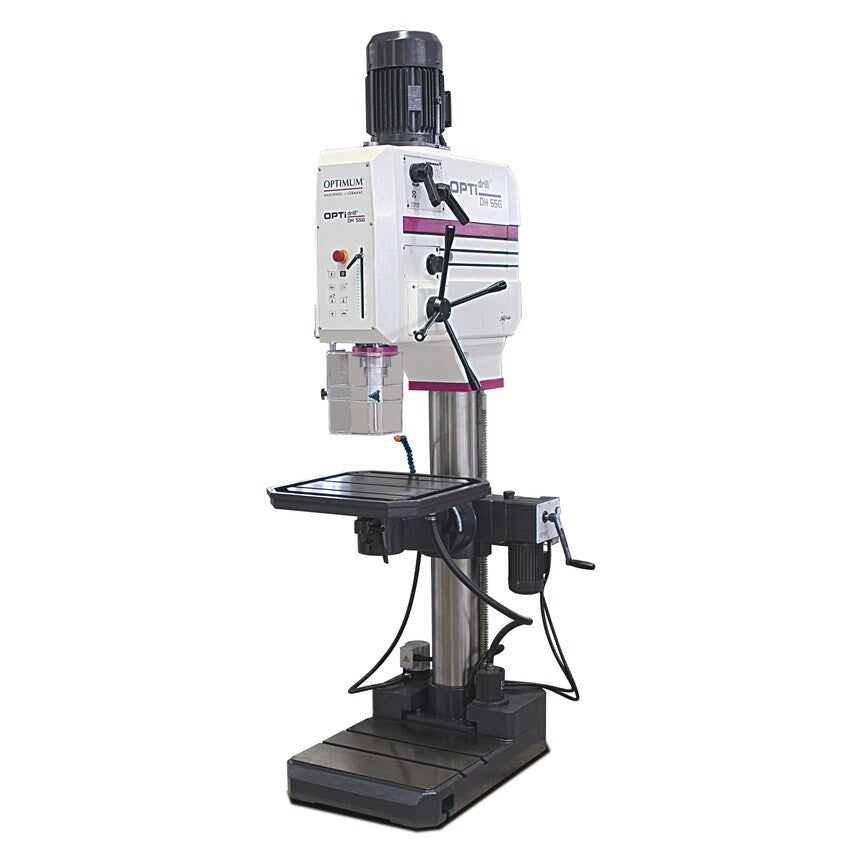

DH55G Geared Head Drill

Heavy, solid cast design. Dirt/water-resistant, easy-to-clean membrane keyboard. 24 V DC electronics. Electrical spindle sleeve feed. Drilling depth stop. Automatic gearwheel lubrication via oil pump. Thread tapping device. Machine lamp integrated in drilling head. Generously dimensioned, height adjustable protective screen with safety switch for greatest possible user protection. Generously dimensioned drilling table, solid, precision workmanship,with parallel T-slots and recirculating coolant duct, reinforcing ribs on rear, rotates through 90 about the column, laterally tilting. Motorised drilling table height adjustment. Cooling unit and external coolant tank, can be removed for easier and complete emptying. Chip filter in line with Machinery Directive. Extremely stable, thick-walled cast-iron column for excellent force absorption. Solid base plate with parallel T-slots, precision surface finish. Optional footswitch available for toggling between clockwise and anticlockwise run and for thread tapping.

Power Source	Electric
Product Type	Geared Head Drill
Voltage	24 V DC
