£27.39

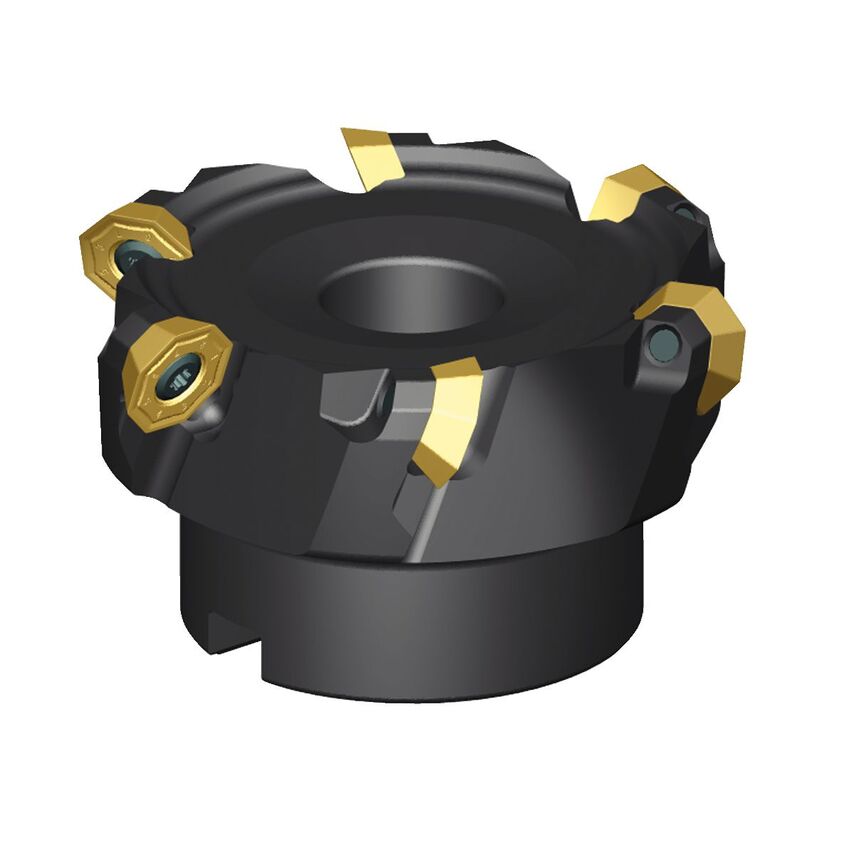

Shell MillsKSOM Mini
Milling Application | Face Mill |
Unit Measured | Imperial |
Hub Diameter | 69.15mm | 69.1500mm |
Number of Flutes | 7 |
Maximum Cutting Diameter | 110.2mm |
Max. Depth of Cut | 3.5000mm |
Insert Shape | O-Octogon 135 |
MFR Part No. | 3093637 |
Body Material | Steel |
Adapter Type Machine Side | Shell Mill |
Coolant Supplied | Yes |
Hand Preference | Right |
Body Diameter Max | 105.45mm |
Center Cutting Tool | No Center Cutting |
Number of Inserts | 7 |
Clamp Type | Screw Clamping |
