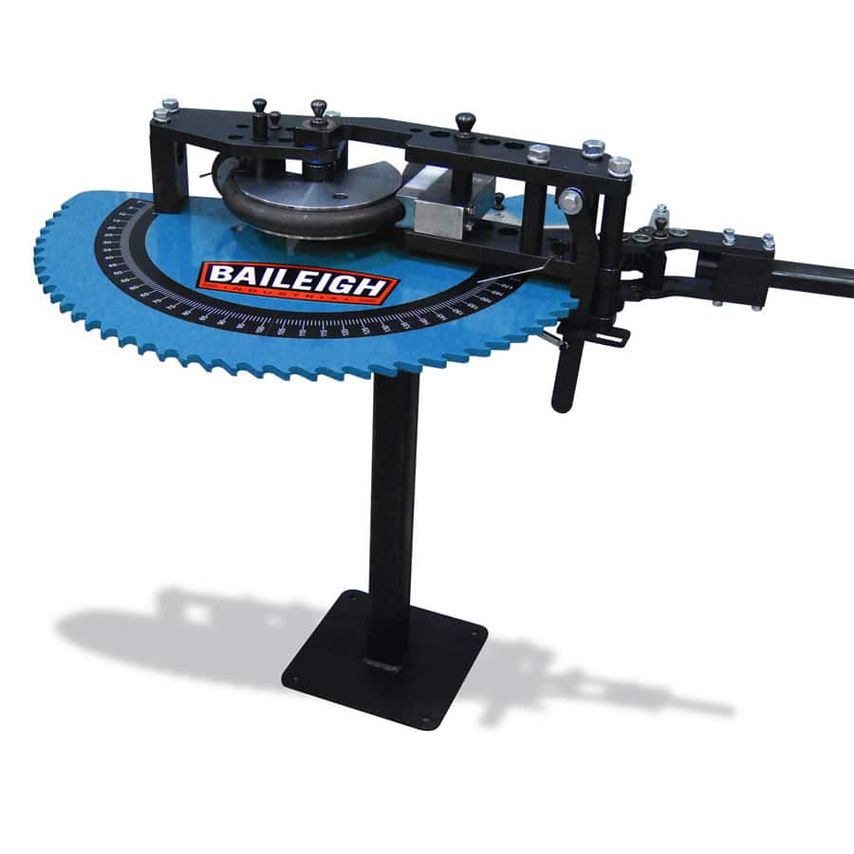

RDB-050 Manual Tube Bender

The RDB-050 manual tube bender was designed as an affordable bender that has enough capacity for just about any chassis fabrication shop. The RDB-050 is revolutionary in design, function and capacity. The RDB-050, from Baileigh Industrial is extremely powerful, and can bend up to 2.5" OD mild steel with a wall thickness of .120" (62mm x 3mm) and 2" (50 mm) OD chromalloy with a wall thickness of .120" (3 mm). \n \nThe most unique feature of the RDB-050 is that it has three selectable bending speeds. The proper speed for each application depends on the material type, OD, and wall thickness. \n \nSpeed one (4 per pull) has the most torque and would be used for bending 2" (50 mm) OD chromalloy or 2.5" (62 mm) OD mild steel. \nSpeed two produces 8 per pull, ideal for intermediate materials. \nSpeed three produces 12 with each pull, perfect for lighter gauge materials. \n \nAlso, the RDB-050 can bend in one shot without having to stop and reset the machine \n \nThe RDB-050 manual tube and pipe bender has no disassembly or assembly needed to produce a bend. Simply put your tubing into the hook arm and begin bending. When the bend is complete, return the machine to the home position and pull your bend out, or position it for the next bend. The RDB-050 tube and pipe bender can bend up to 200 and an anti-spring-back mechanism holds each bend in place as the operator ratchets forward. \n \nAll pivot points on the RDB-050 use aluminum bronze bushings and thrust washers, for long life. The hook arm has quick release inserts to assist when changing tooling for different size material. A complete changeover should take no more than a single minute. \n \nThe RDB-050 comes complete with the stand, bend handle and degree dial. Just add tooling and you are ready to bend.

Product Type

Manual Tube Bender
