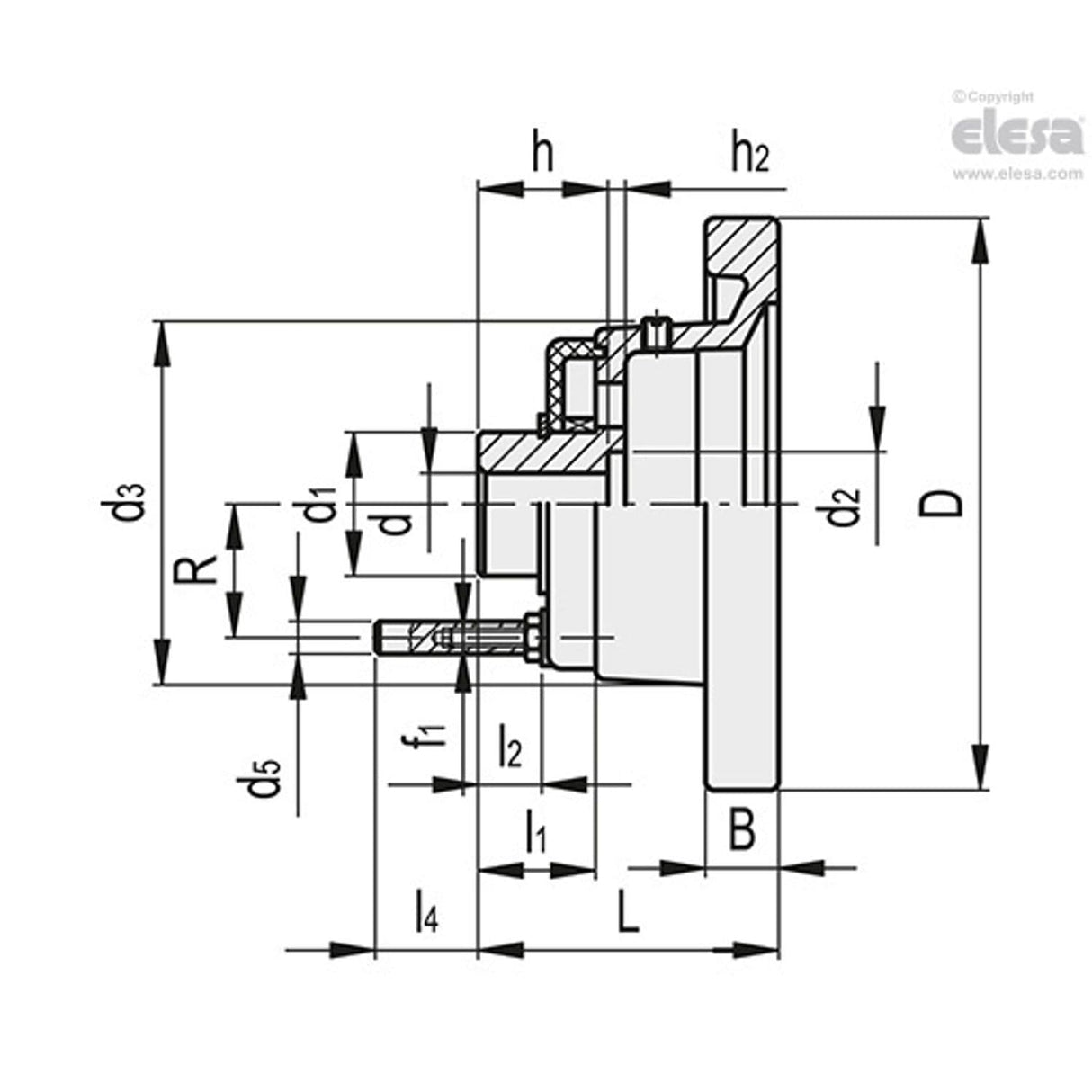

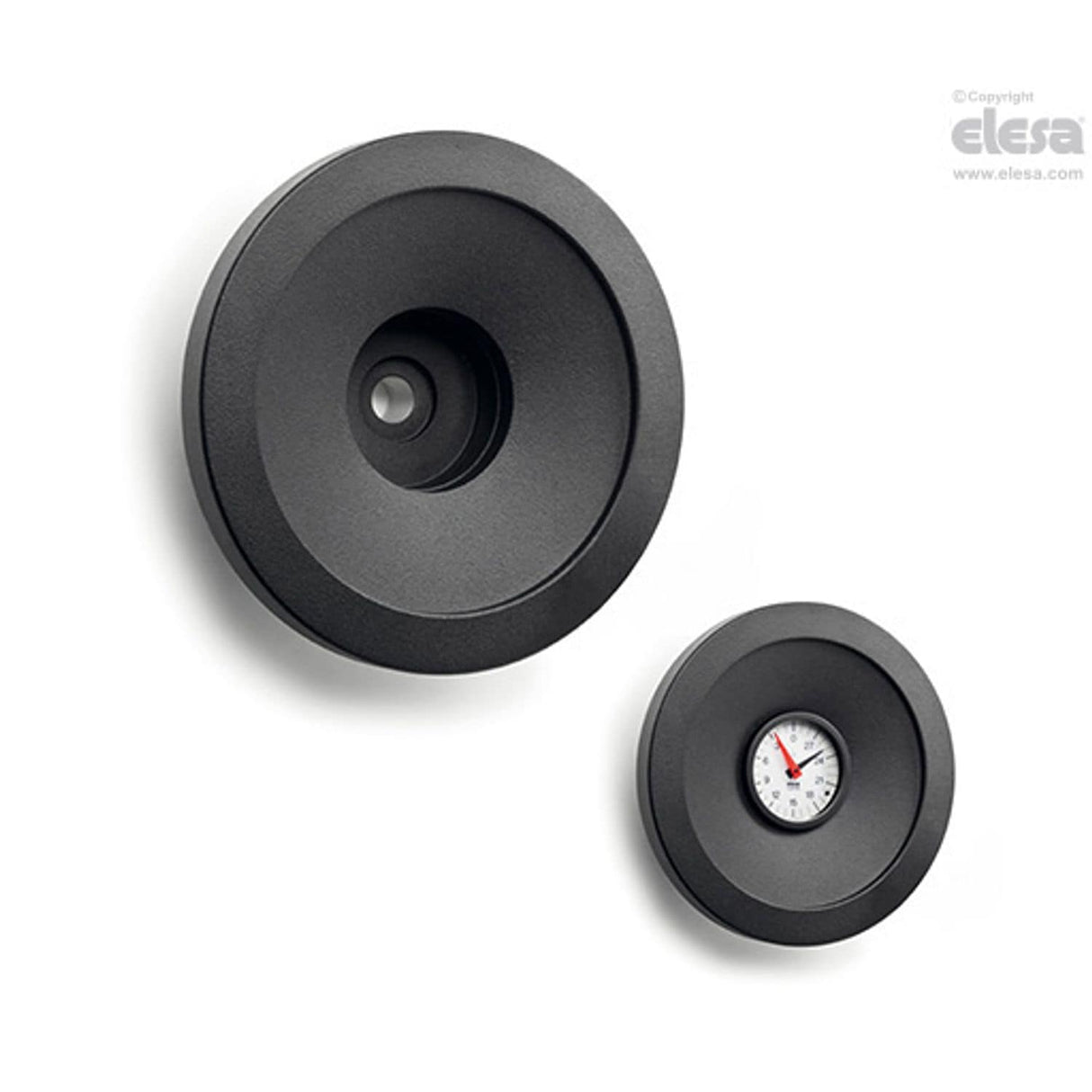

VAD-XX Handwheels, for position indicators, aluminium, For positive drive indicators, without handle For product drawing and dimensions refer to pdf Item data sheet.
| l2 | 11.5 |
| MFR Part No. | VAD.100-PXX1 A-10 |
| Weight | 240g |
| l4 | 13.6 |
| d1 | 20 |
| d(H7) | 10 |
| D | 100 |
| L | 63.5 |
| h | 22.5 |
| B | 14 |
| R | 19 |
| l1 | 18.5 |
| d5 | 6 |
| h2 | 3.5 |
| Diameter | 100mm |
| d2 | 20.5 |
| f1 | M4 |
| d3 | 56 |
