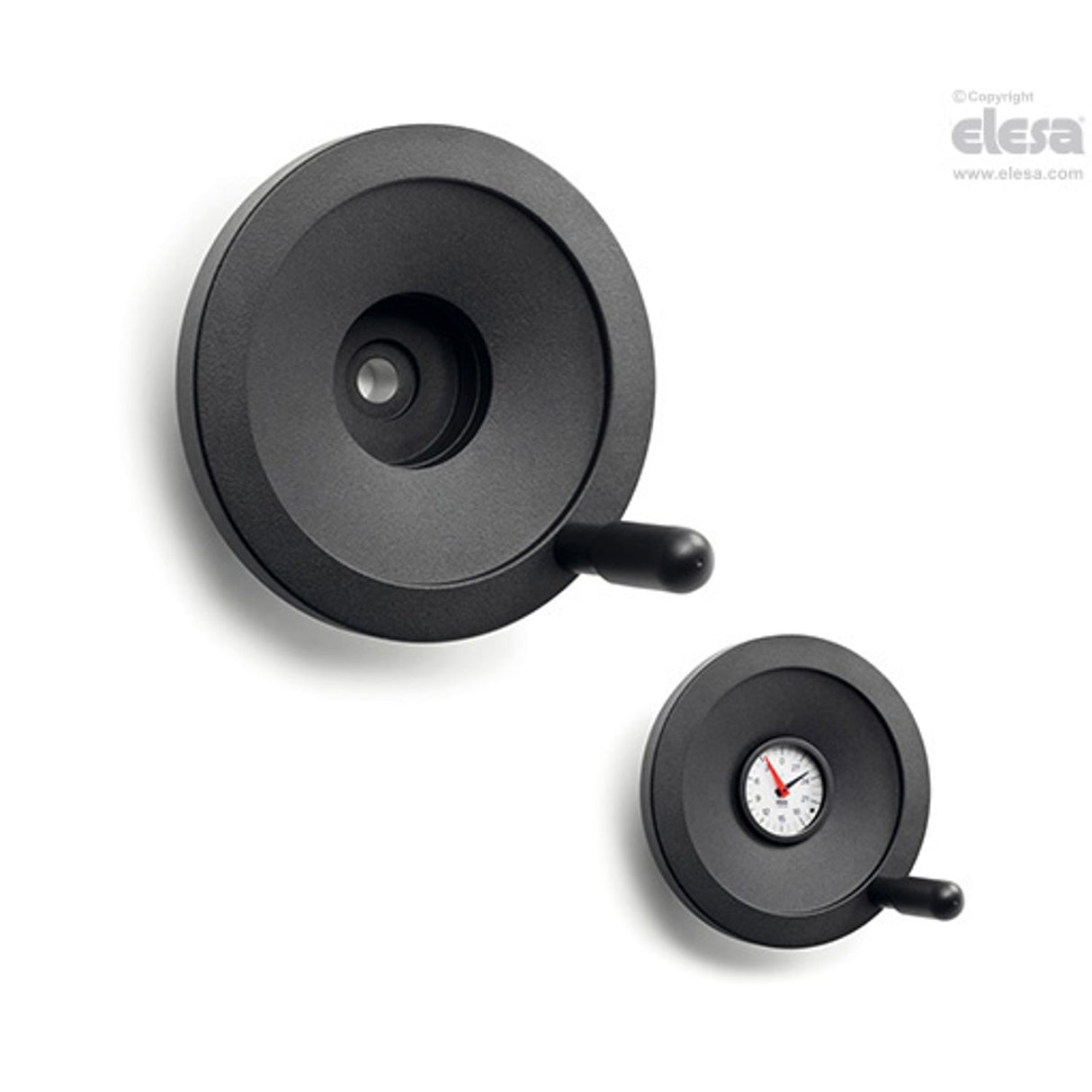

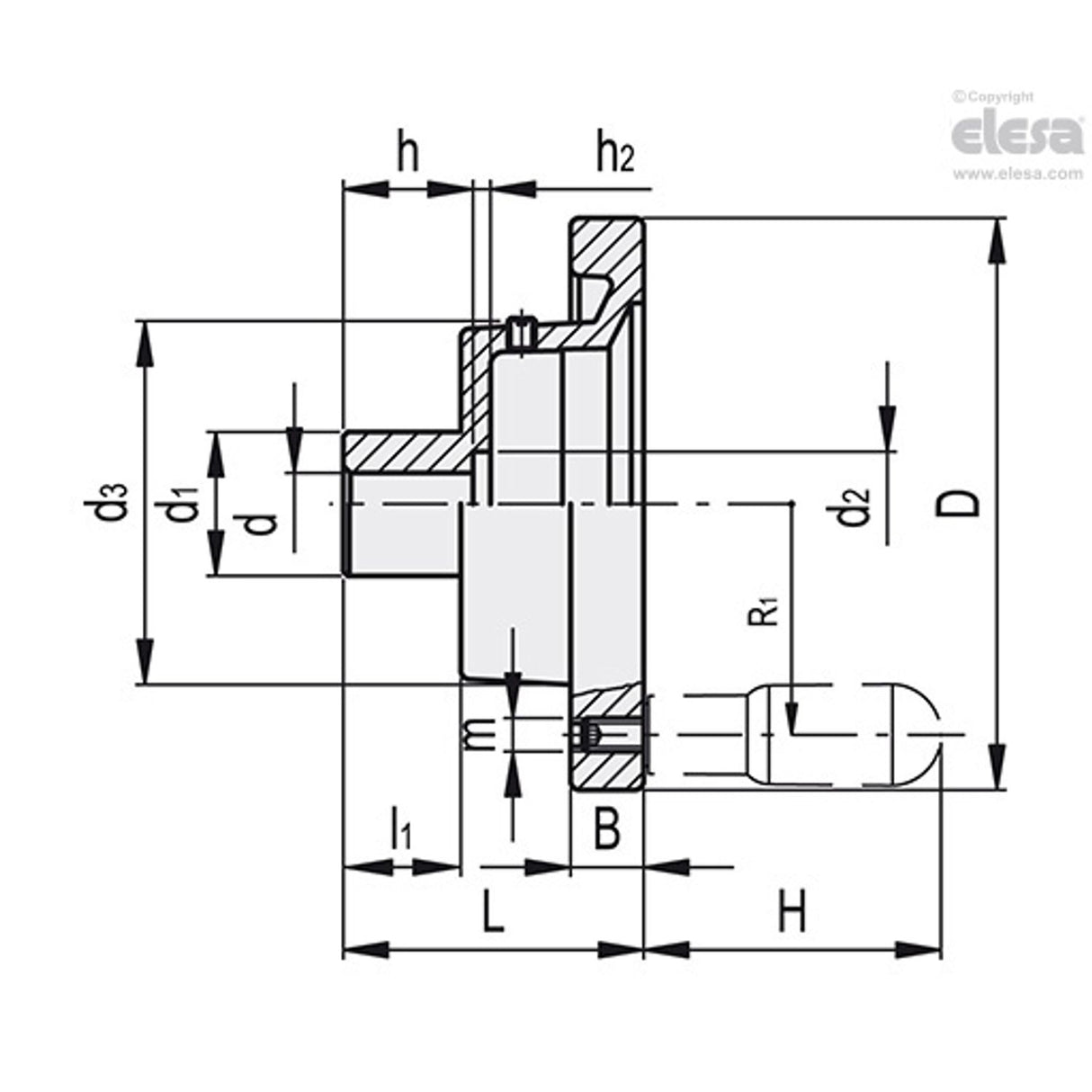

VAD-XX Handwheels, for position indicators, aluminium, For gravity drive indicators, with revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| d1 | 28 |
| d2 | 20.5 |
| h2 | 3.5 |
| l1 | 17.5 |
| B | 14 |
| R1 | 42.5 |
| m | M6 |
| Weight | 275g |
| H | 45 |
| h | 17 |
| d(H7) | 10 |
| L | 58 |
| D | 100 |
| d3 | 56 |
| Diameter | 100mm |
| MFR Part No. | VAD.100-GXX1 A-10+I |
