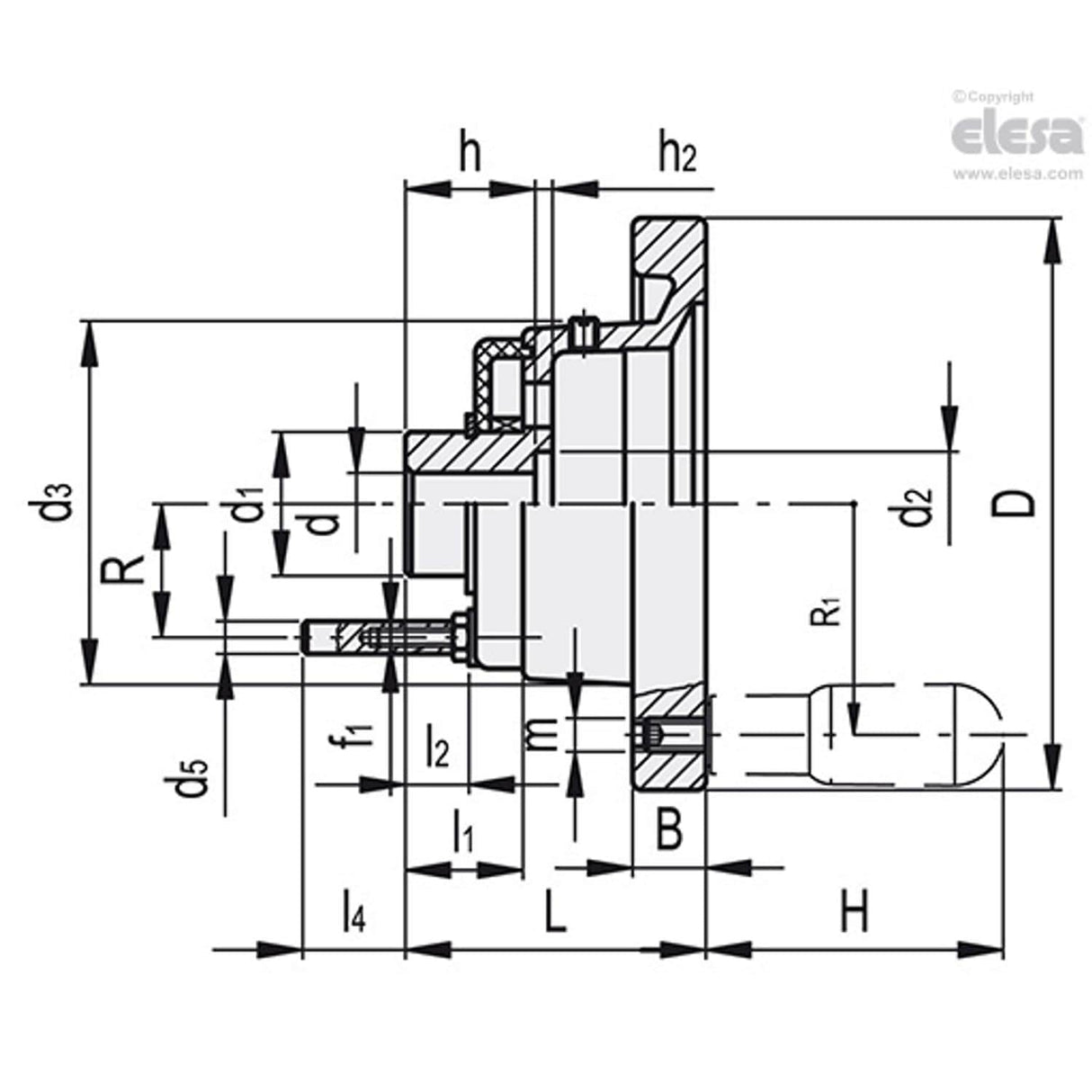

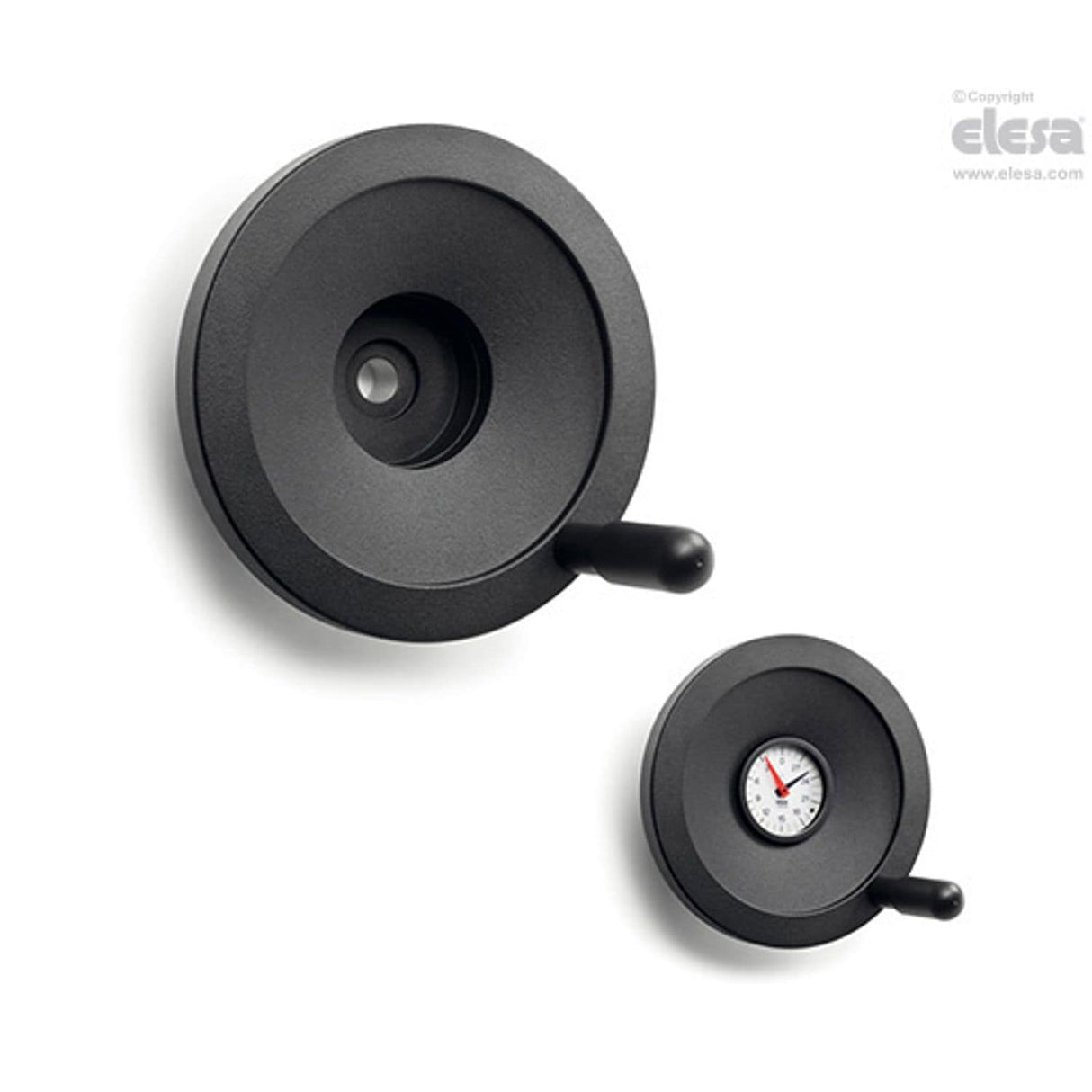

VAD-XX Handwheels, for position indicators, aluminium, For positive drive indicators, with revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| l4 | 13.1 |
| m | M8 |
| R | 28.5 |
| R1 | 54 |
| L | 65.5 |
| l1 | 19 |
| MFR Part No. | VAD.125-PXX2 A-12+I |
| d(H7) | 12 |
| d5 | 6 |
| Weight | 435g |
| d1 | 32 |
| B | 15 |
| h | 22.5 |
| d3 | 76 |
| l2 | 12 |
| f1 | M4 |
| d2 | 22.5 |
| D | 125 |
| Diameter | 125mm |
| h2 | 4 |
| H | 65 |
