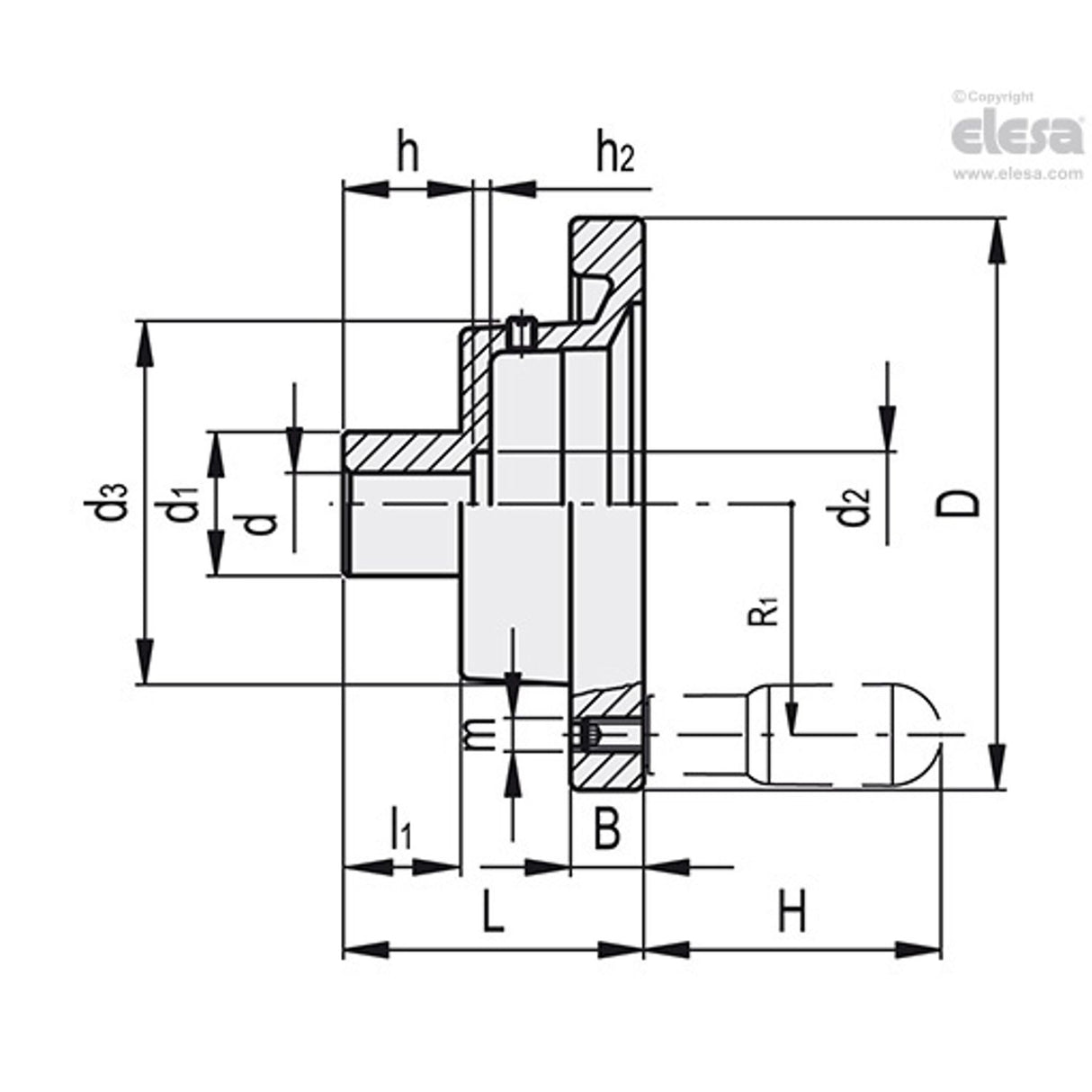

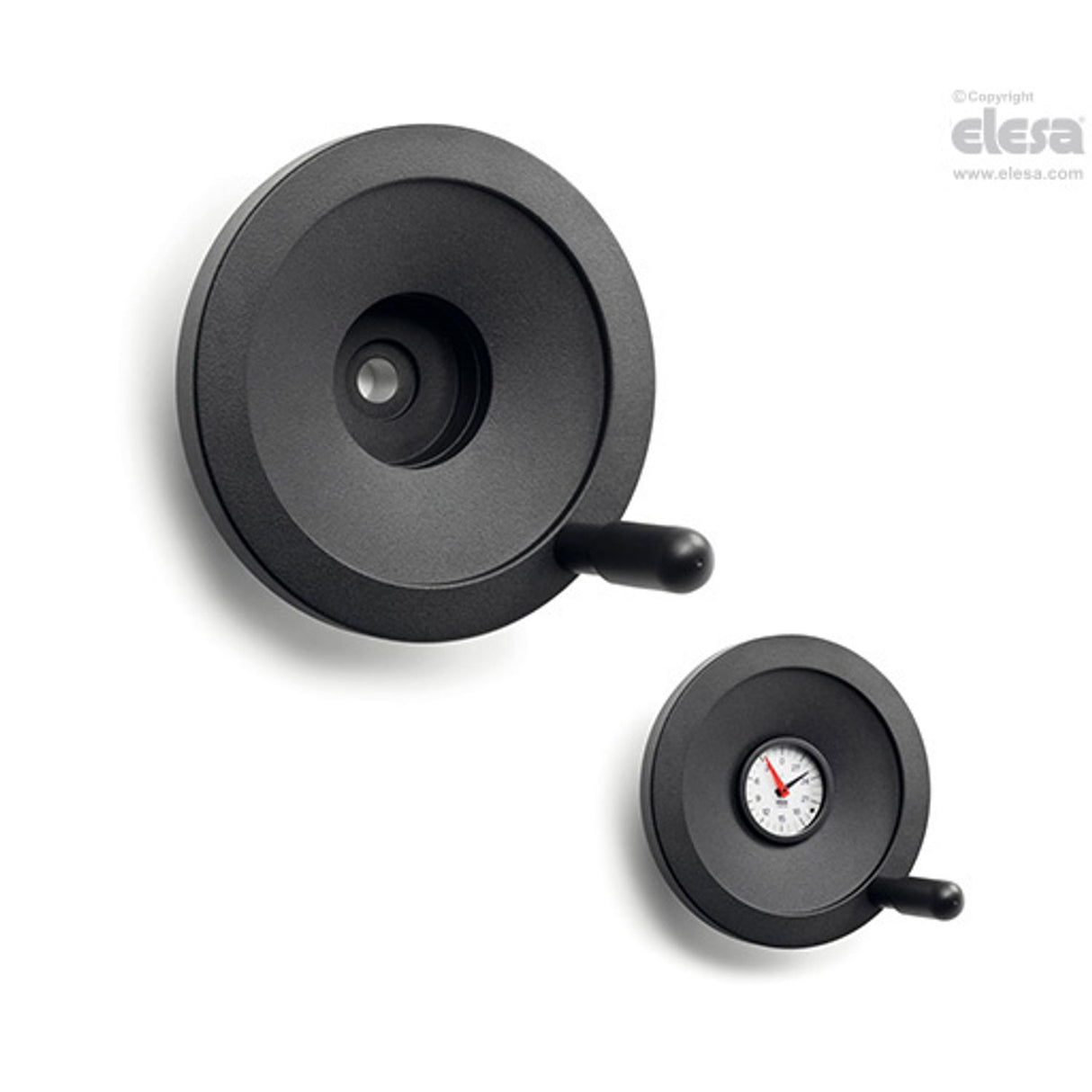

VAD-XX Handwheels, for position indicators, aluminium, For gravity drive indicators, with revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| R1 | 89 |
| Diameter | 200mm |
| D | 200 |
| h | 24 |
| H | 90 |
| L | 75 |
| d1 | 42 |
| d3 | 79 |
| h2 | 4.5 |
| d2 | 33 |
| B | 20.5 |
| d(H7) | 18 |
| Weight | 1067g |
| MFR Part No. | VAD.200-GXX2 A-18+I |
| m | M10 |
| l1 | 21 |
