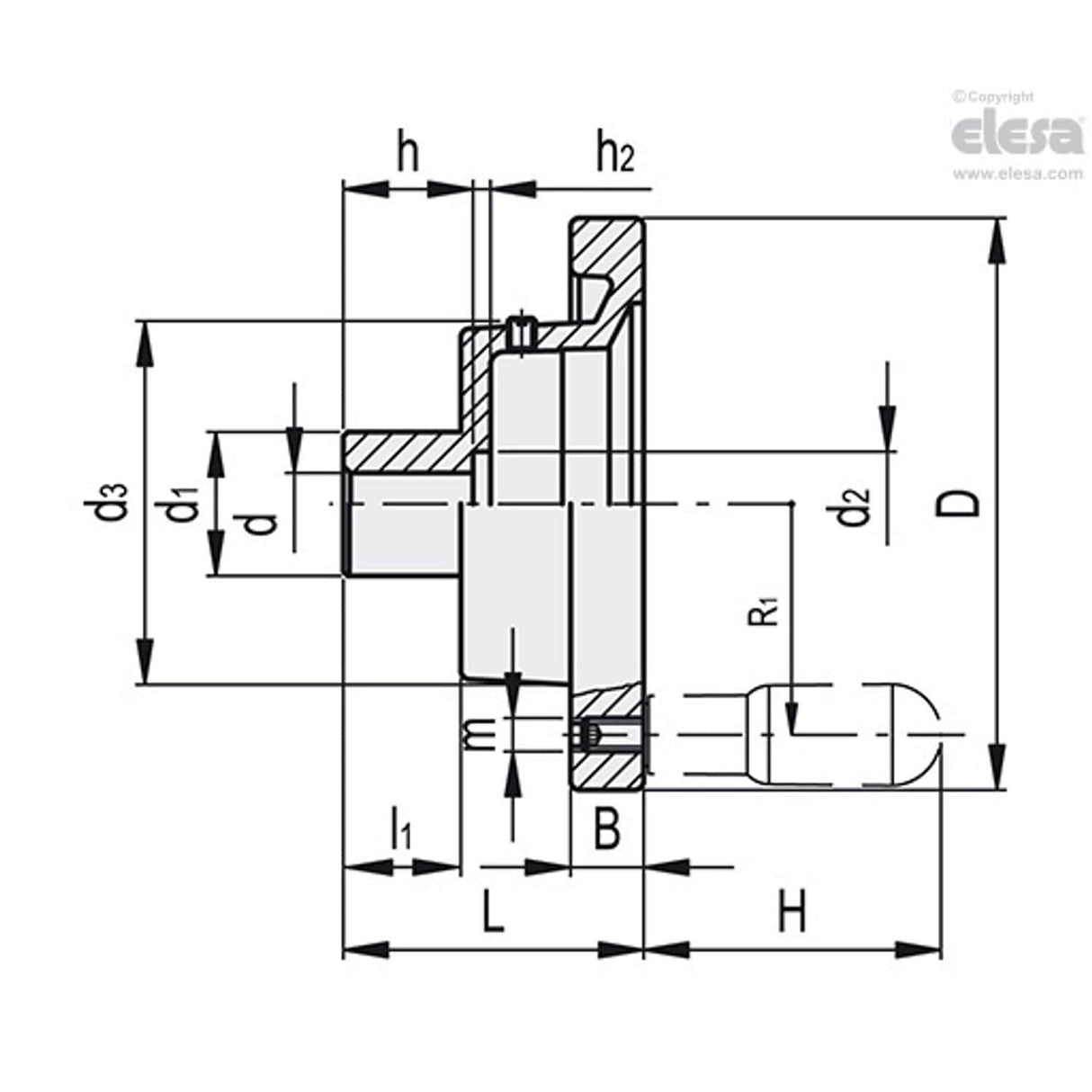

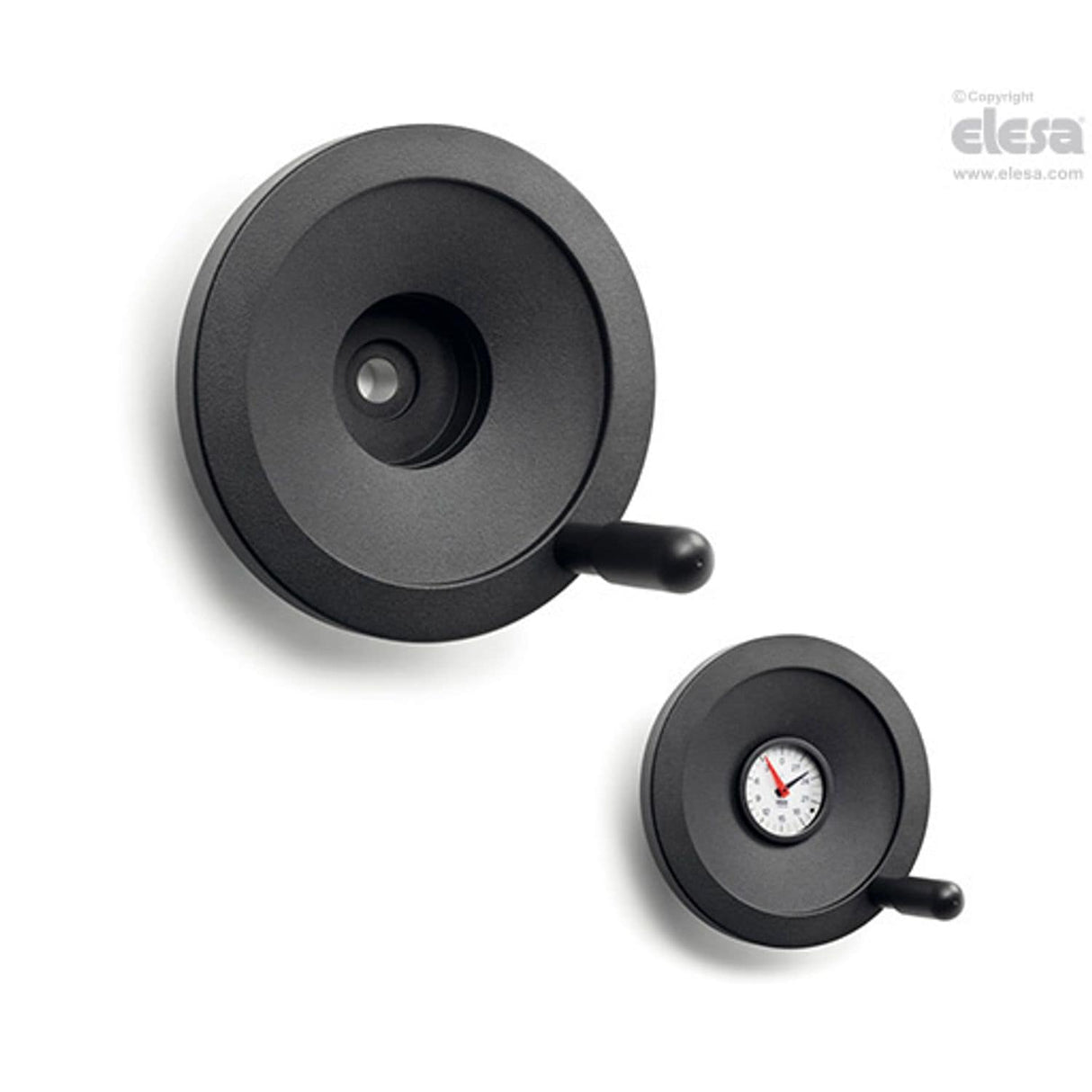

VAD-XX Handwheels, for position indicators, aluminium, For gravity drive indicators, with revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| Weight | 828g |
| h2 | 4 |
| m | M10 |
| MFR Part No. | VAD.160-GXX5 A-14+I |
| B | 18 |
| R1 | 71 |
| d1 | 36 |
| h | 23.5 |
| d3 | 120 |
| L | 64 |
| H | 80 |
| l1 | 20 |
| d2 | 25.5 |
| Diameter | 160mm |
| D | 160 |
| d(H7) | 14 |
