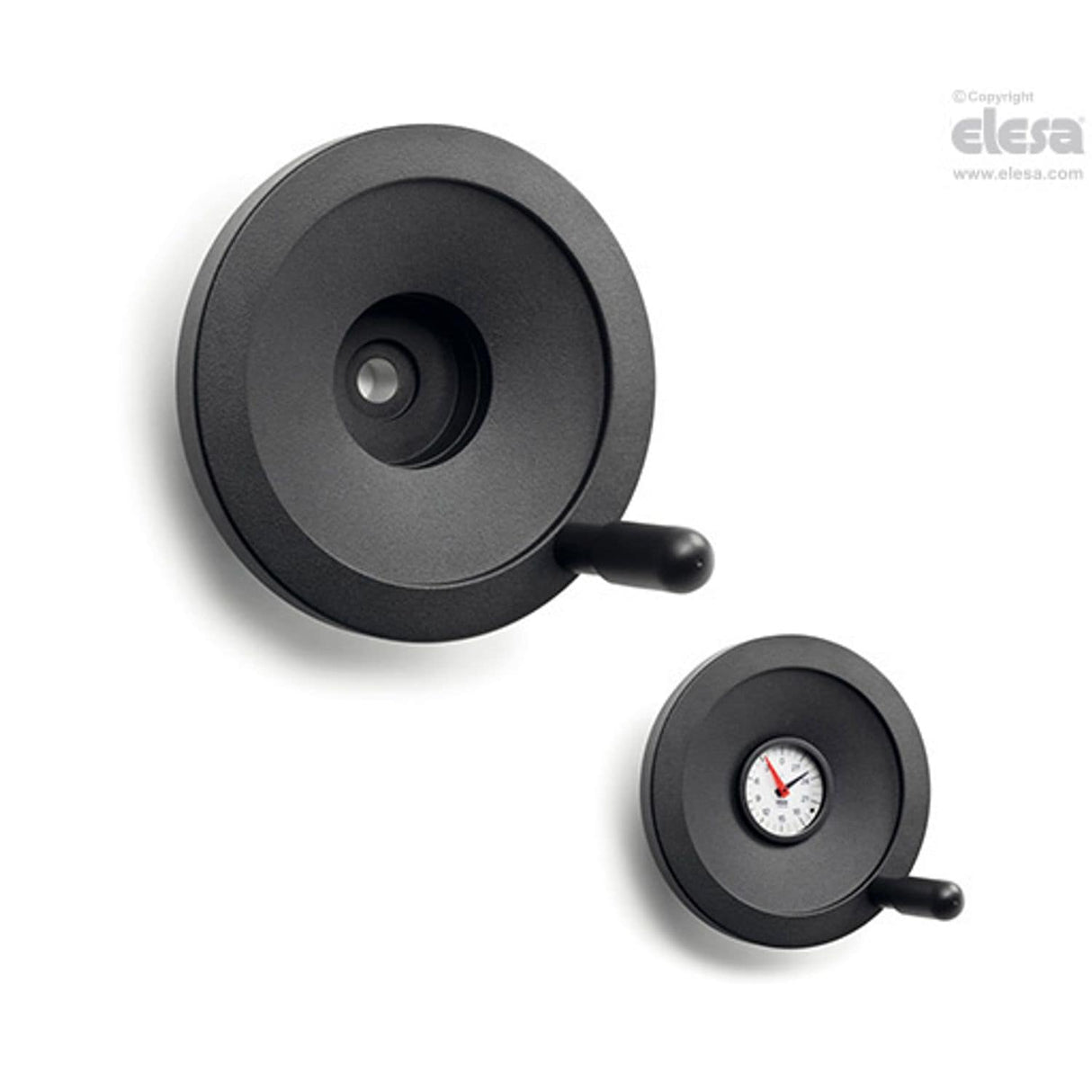

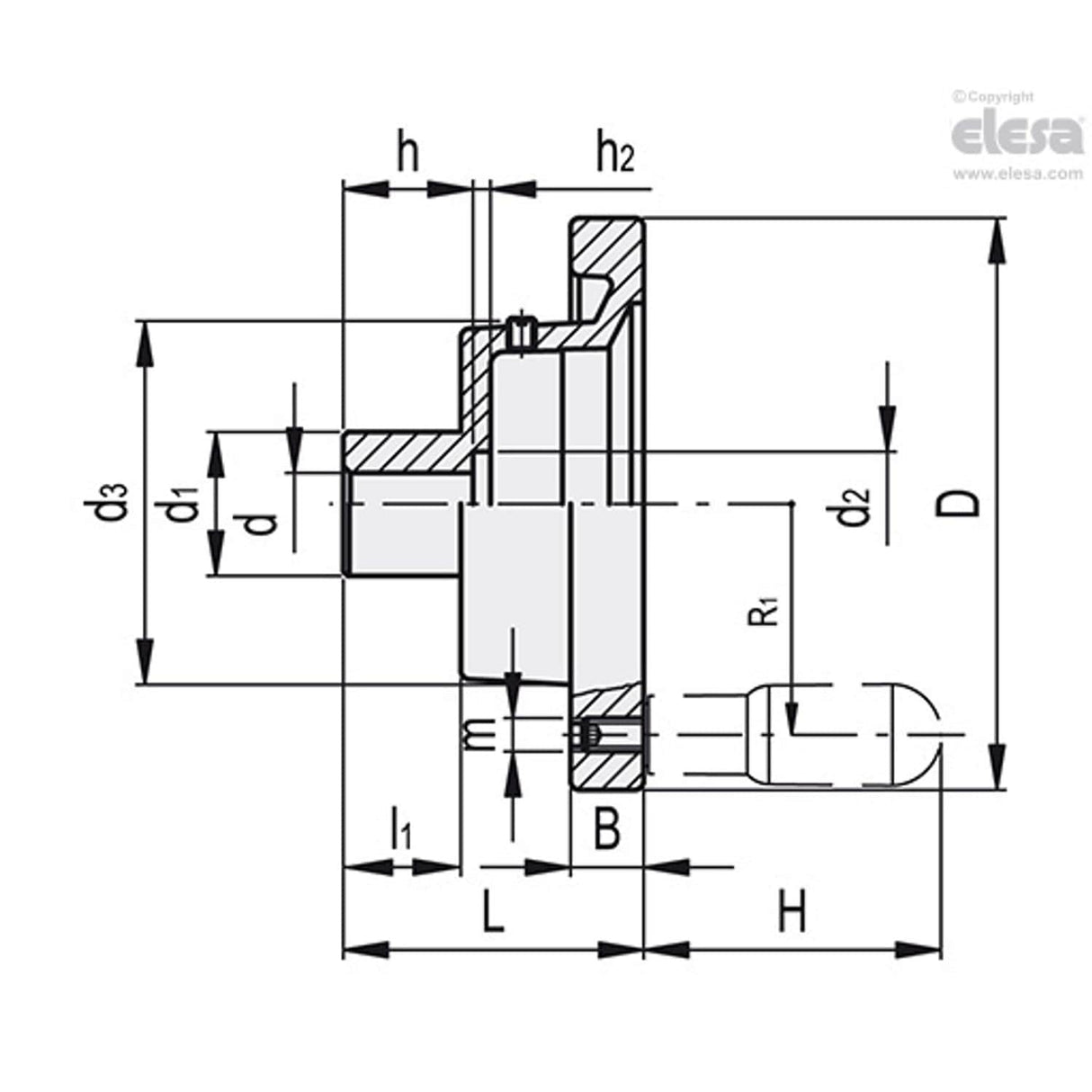

VAD-XX Handwheels, for position indicators, aluminium, For gravity drive indicators, with revolving handle For product drawing and dimensions refer to pdf Item data sheet.
| R1 | 71 |
| L | 68 |
| MFR Part No. | VAD.160-GXX2 A-14+I |
| l1 | 19 |
| h2 | 4 |
| d1 | 36 |
| m | M10 |
| d3 | 78 |
| d2 | 28 |
| H | 80 |
| B | 18 |
| Weight | 717g |
| d(H7) | 14 |
| D | 160 |
| Diameter | 160mm |
| h | 20 |
