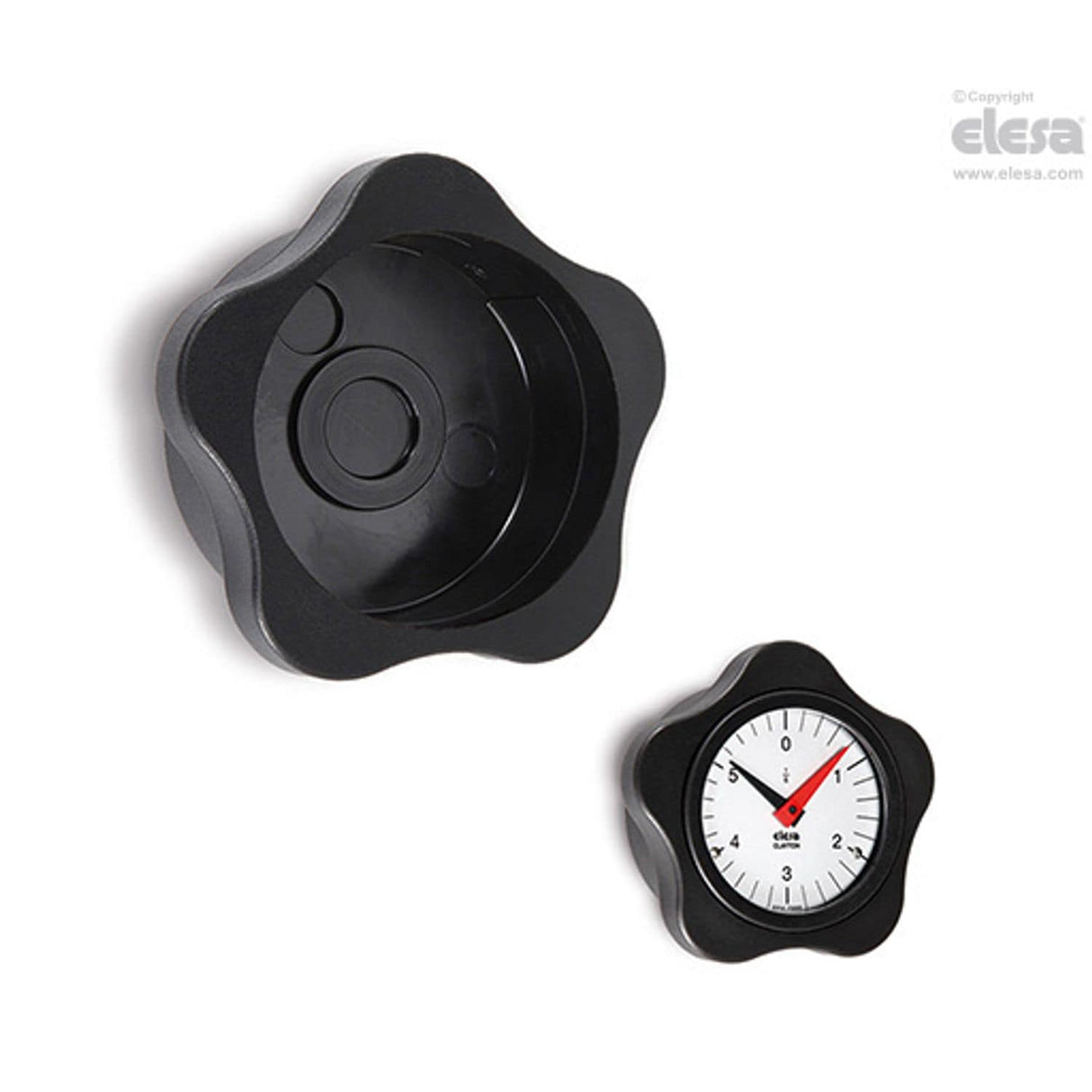

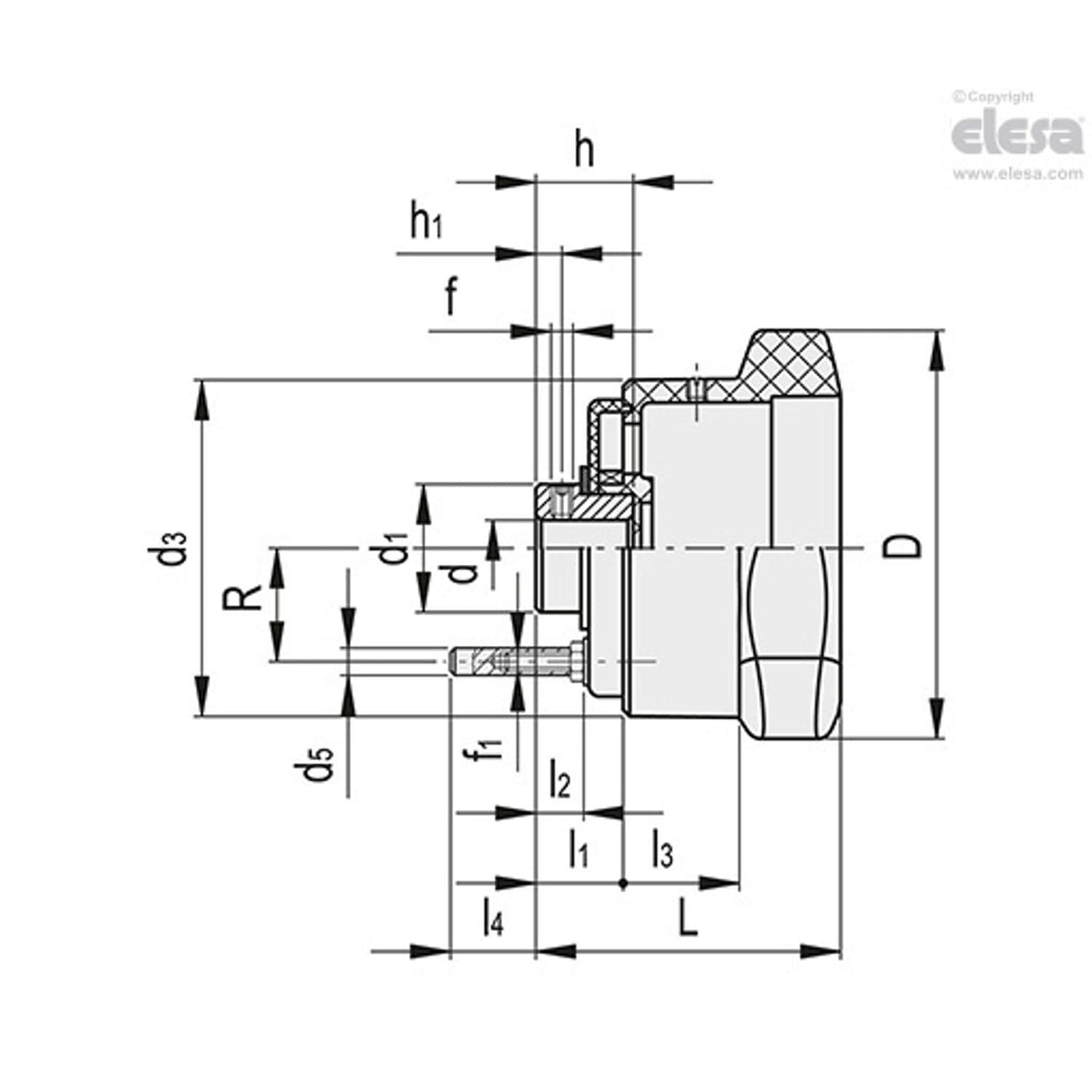

VC.792-XX Handwheels, for position indicators, technopolymer, For positive drive indicators For product drawing and dimensions refer to pdf Item data sheet.
| Weight | 207g |
| L | 58 |
| d1 | 30 |
| d(H7) | 12 |
| l1 | 20 |
| h | 22 |
| d3 | 76.5 |
| f | M5 |
| Diameter | 98mm |
| MFR Part No. | VC.792/98-PXX2 A-12 |
| l2 | 12 |
| D | 98 |
| f1 | M4 |
| l3 | 19 |
| h1 | 6 |
| d5 | 6 |
| l4 | 13.1 |
| R | 28.5 |
