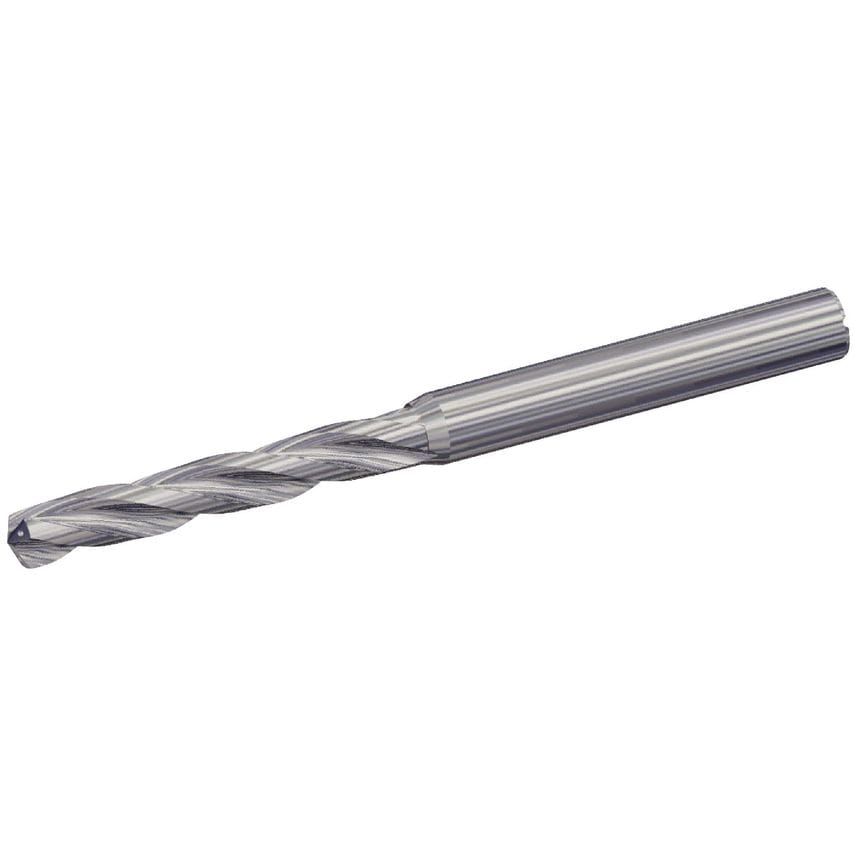

TF Drills Titanium Materials Through Coolant
Solid Carbide Drills
| Coolant Delivery | Off-center Axial Coolant |
| Gage Length | 73mm |
| Drill Diameter Tolerance | 0.007000 to 0.018000mm |
| Helix Angle | 27.998 |
| Number of Flutes | 3 |
| Flute Construction | Helical Flute |
| Adapter Style | Straight-Cylindrical |
| Unit Measured | Metric |
| Hand Preference | Right |
| Adapter Type | Cylindrical |
| Material | Carbide |
| Coolant Supplied | Yes |
| Overall Length | 141mm | 141.0000mm |
| Drill Depth | 56mm | 56.0000mm |
| Drill Point | 2.951mm |
| Drill Diameter | 11.0000mm |
| Shank Length | 68.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Finish/Coating | Uncoated |
| Assembly Length | 93.049mm |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Clamping Length | 45mm |
| Functional Length | 138.0490mm |
| MFR Part No. | 1762703 |
| Flute Length | 71mm | 71.0000mm |
