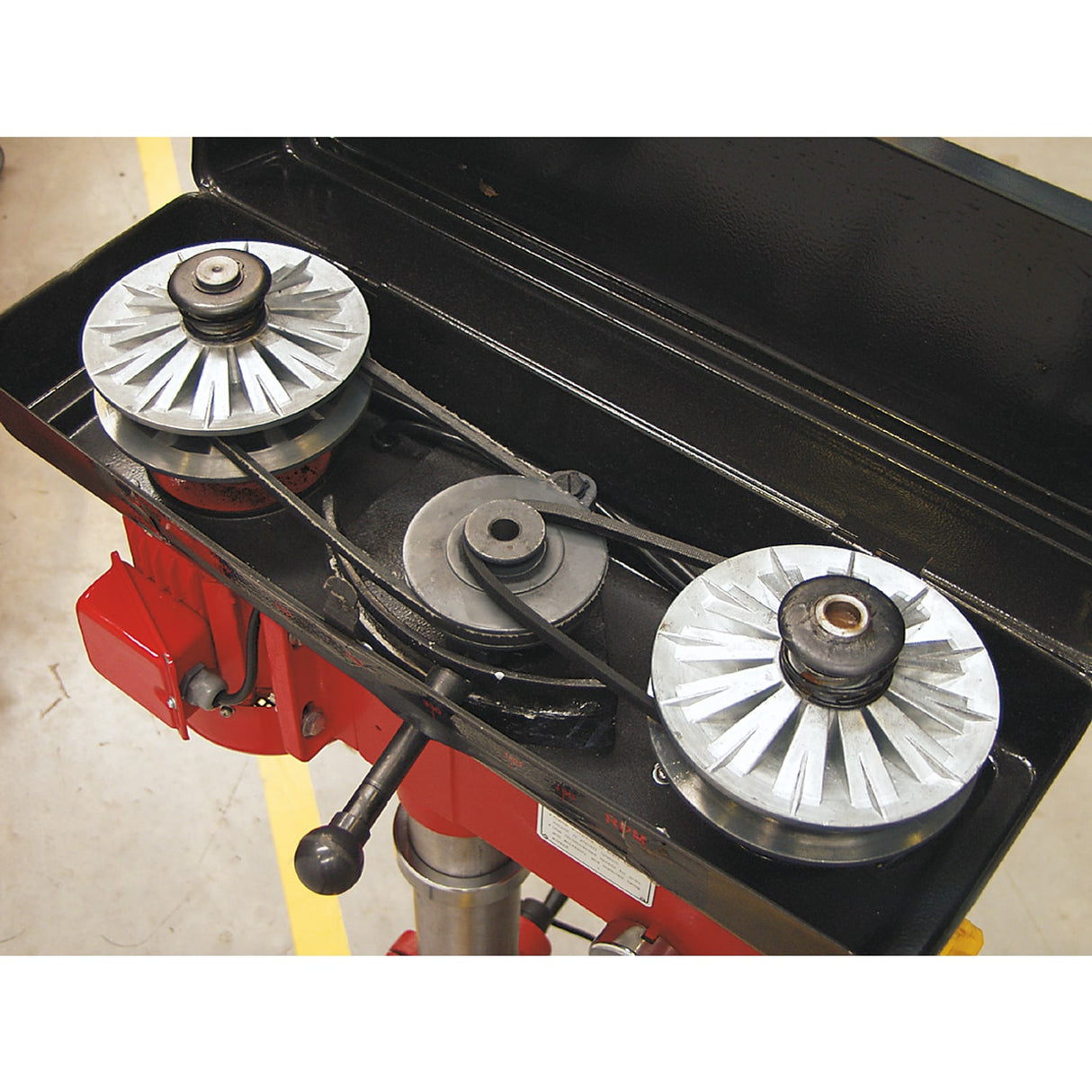

Variable speed model allows stepless control of drilling speed between minimum and maximum enabling finer control of finish and tolerance. The belt transmission uses two spring tensioned cone pulleys, the diameters of which can be adjusted by moving a centre idle pulley with the speed adjustment control lever. Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments. Supplied with chuck guard. Mortise attachment available, order Model No. MA10.
| MFR Part No. | GDM200F/VS |
| Working Base Surface Size | 200 x 220mm |
| Number of Drilling Speeds | Variable |
| Maximum Distance Spindle to Base | 1170mm |
| Maximum Distance Spindle to Table | 730mm |
| Spindle Travel | 80mm |
| Nett Weight | 71kg |
| Working Table Surface Size | 310mm |
| Swing | 356mm |
| Column Diameter | \u00d880mm |
| Spindle Taper | MT2 |
| Collar Diameter | 60mm |
| Motor Power | 650W |
| Voltage | 230V |
| Overall Height | 1630mm |
| Product Type | Pillar Drill |
| Base Size | 460 x 275mm |
| Drilling Speed Range | 150-2300rpm |
