Proto save
£8.58

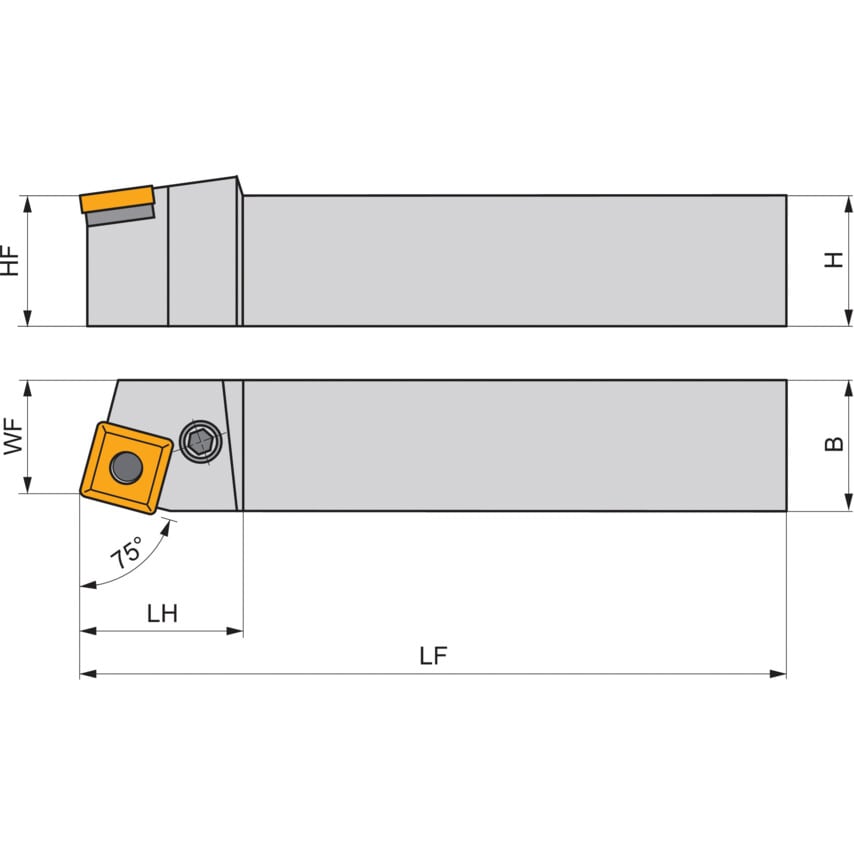

These turning toolholders were designed to hold a square negative insert with an inscribed circle diameter of 25.4mm, and a thickness of 12mm. 50mm tool height x 50mm width x 300mm long for taper turning and longitudinal turning without shoulder.
Features and Benefits
Nickelized for higher oxidation and wear resistance
Internal coolant channels improve insert tool life
Improved chip evacuation provides high surface quality and reliability
| Set Type | Individual Toolholder |
| Shank Height (h) | 50mm |
| ISO Designation | PSBNR5050T2512 |
| Insert Shape | Square |
| Overall Length (l1) | 300mm |
| Toolholder Style | PSBN |
| Insert Holding Type | Lever Lock |
| Insert Style | SNMX |
| Shank Width (b) | 50mm |
| MFR Part No. | 8291186 |
