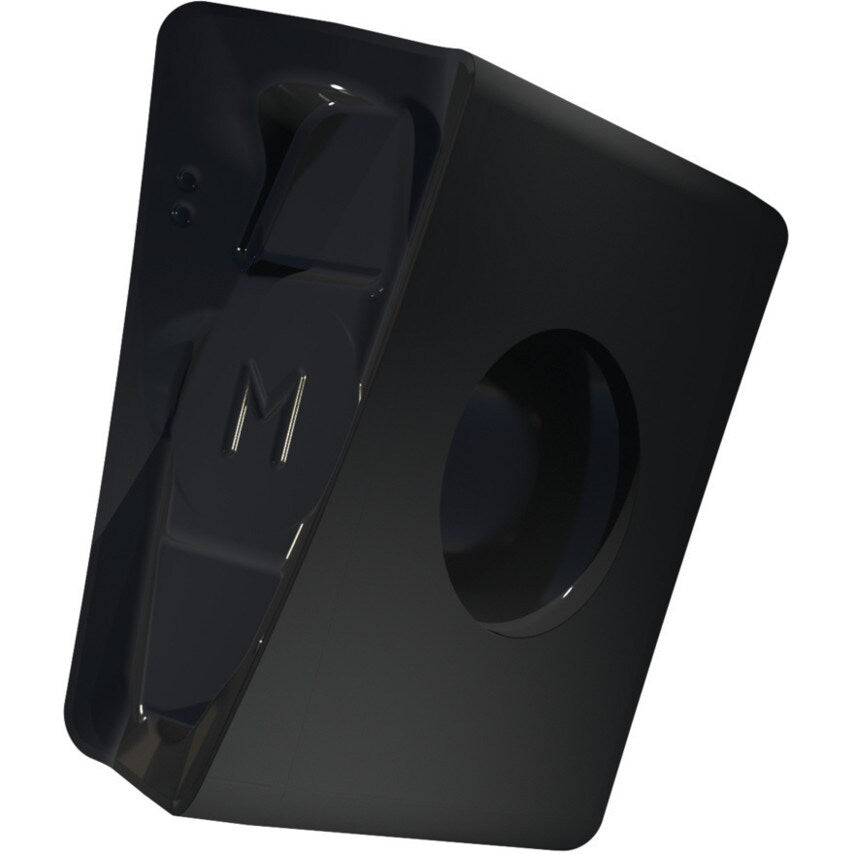

Lnex 121008SR-M M9340 90 Tangential Mill Insert

LNEX 1210 is a rectangular double-sided milling insert with a maximum depth cut of 10.0mm and an 0.8mm corner radius. This milling insert was designed for the machining of steel with shoulder mills SLN12X. Features and Benefits With four cutting edges, the insert provides a highly productive solution for a wide range of applications Stable clamping and strong cutting edge ideal for square shoulder milling, PVD coating provides long tool life and excellent breakage resistance, while also reducing chatter Typical Applications Milling Steel Cast steel

Thickness	10.26mm
Cutting Edge Length	13.3mm
Insert Style	LNEX 12
MFR Part No.	8184229
ISO Designation	LNEX 121008SR-M
Corner Radius	0.8mm
Chipbreaker	M
Shape	Rectangle
