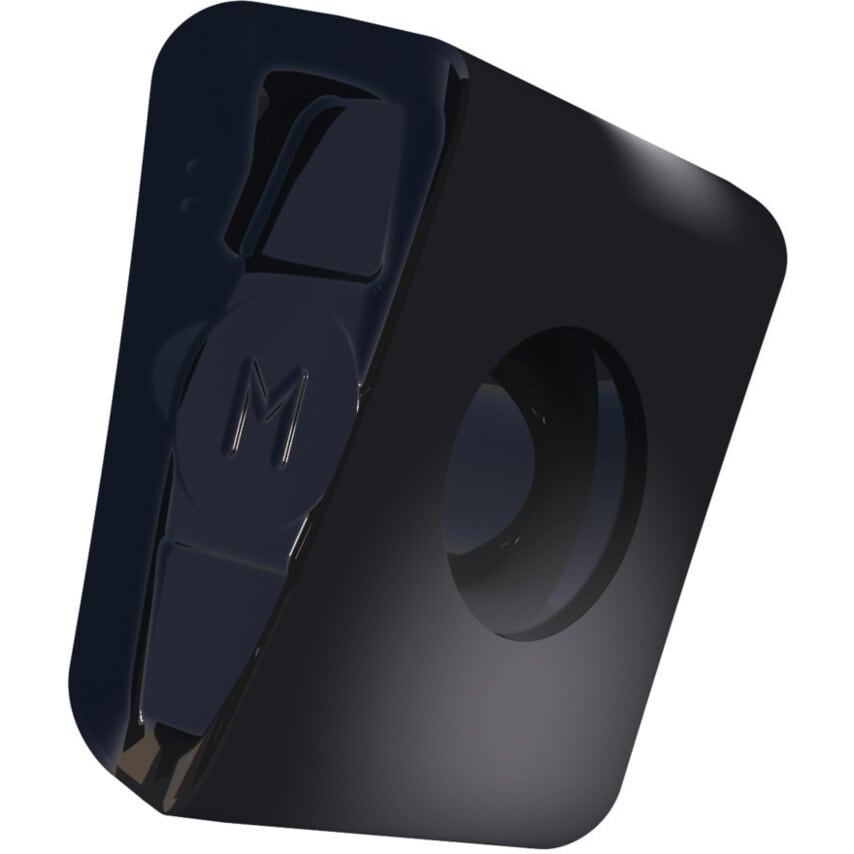

Lnex 121016SR-M M8310 90 Tangential Mill Insert

LNEX 1210 is a rectangular double-sided milling insert with a maximum depth cut of 10.0mm and a 1.6mm corner radius. This milling insert was designed for machining of steel, cast steel and cast iron with shoulder mills SLN12X. Features and Benefits With four cutting edges, the insert provides a highly productive solution for a wide range of applications Stable clamping and strong cutting-edge ideal for square shoulder milling, PVD coating provides long tool life and excellent breakage resistance, while also reducing chatter Typical Applications Steel Cast Steel Cast Iron

Shape	Rectangle
Chipbreaker	M
Cutting Edge Length	13.3mm
Insert Style	LNEX 12
Corner Radius	1.6mm
Thickness	10.26mm
ISO Designation	LNEX 121016SR-M
MFR Part No.	8184452
