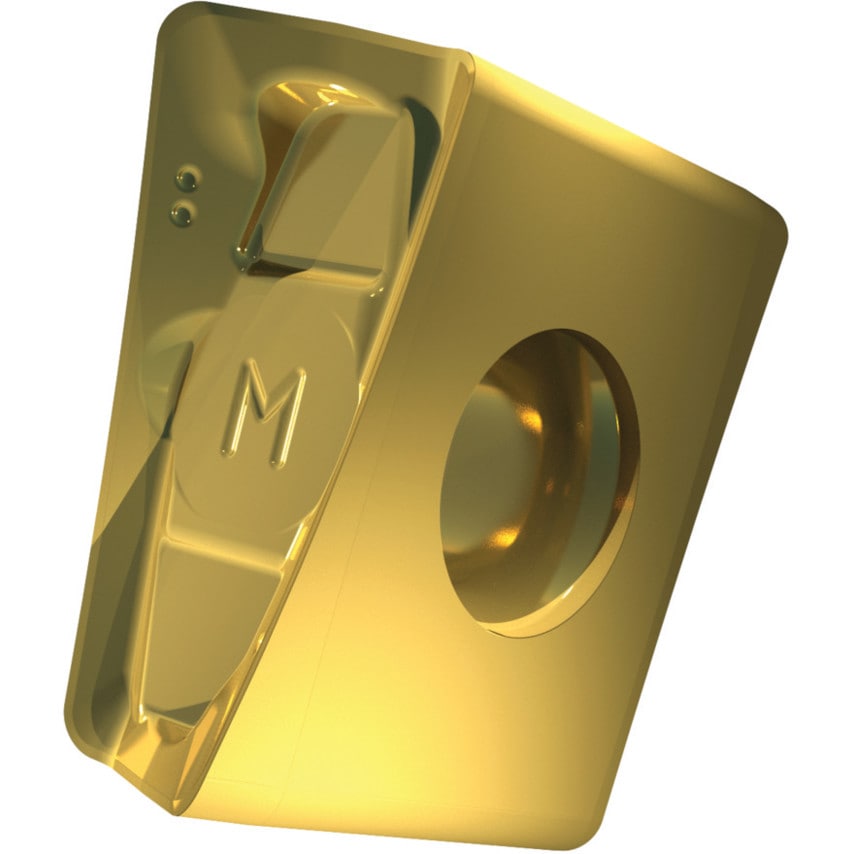

Lnex 121008SR-M M8330 90 Tangential Mill Insert

LNEX 1210 is a rectangular double-sided milling insert with a maximum depth cut of 10.0mm and an 0.8mm corner radius. This milling insert was designed for the machining of steel with shoulder mills SLN12X. Features and Benefits With four cutting edges, the insert provides a highly productive solution for a wide range of applications Stable clamping and strong cutting edge ideal for square shoulder milling, PVD coating provides long tool life and excellent breakage resistance, while also reducing chatter Typical Applications Milling Steel Cast steel

Corner Radius	0.8mm
MFR Part No.	8184226
Shape	Rectangle
Thickness	10.26mm
Cutting Edge Length	13.3mm
Insert Style	LNEX 12
ISO Designation	LNEX 121008SR-M
Chipbreaker	M
