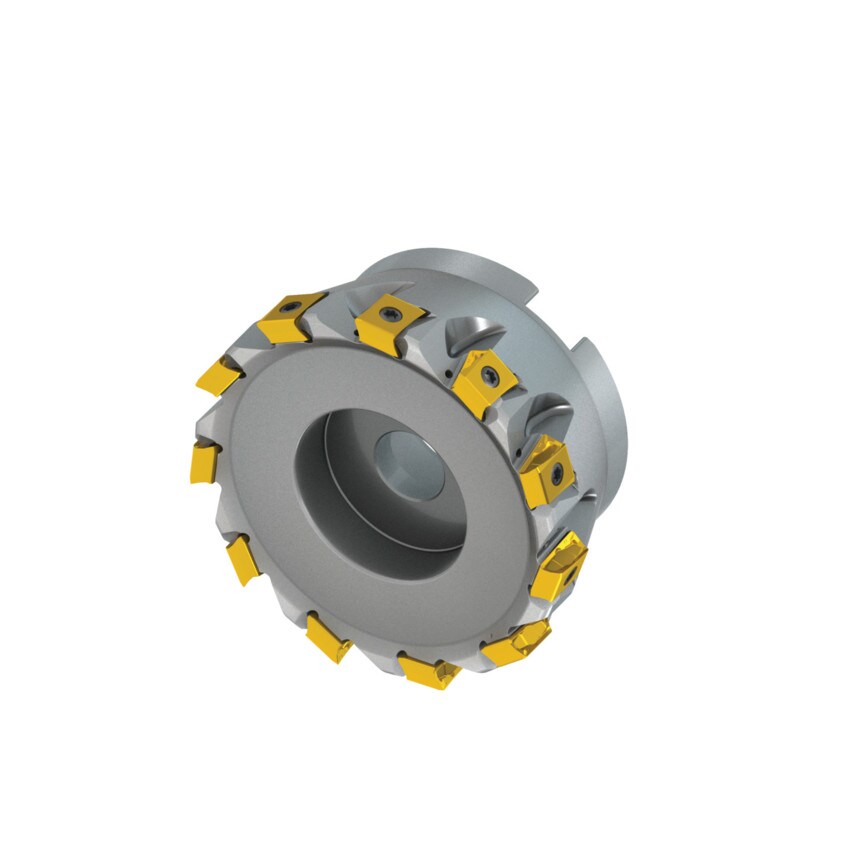

100A11R-S90LN12X-C LN12 90 Tangential Face Mill

Shoulder mill with double negative geometry utilising 8 double-sided inserts. Cutting diameter 100mm with a 90 approach angle and a 32mm connection bore according to DIN 8030-A. 50mm functional through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling, and shallow slot milling with a maximum depth of cut of 10mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Thick cutter core for enhanced rigidity Typical Applications Cast Iron Stainless Steel Steel

Insert Shape	Rectangle
Cutting Edge Angle	90\u00b0
Height	50mm
Toolholder Style	Square Shoulder Mill
Milling Application	Facing | Helical Interpolation | Plunging | Ramping | Shouldering | Slotting
Toolholder Material	Steel
Product Type	Tangential Face Mill
Insert Size	1210
Number of Inserts	11
MFR Part No.	8185937
Coolant Delivery	Coolant Through
Maximum Cutting Diameter	100mm
ISO Designation	100A11R-S90LN12X-C
