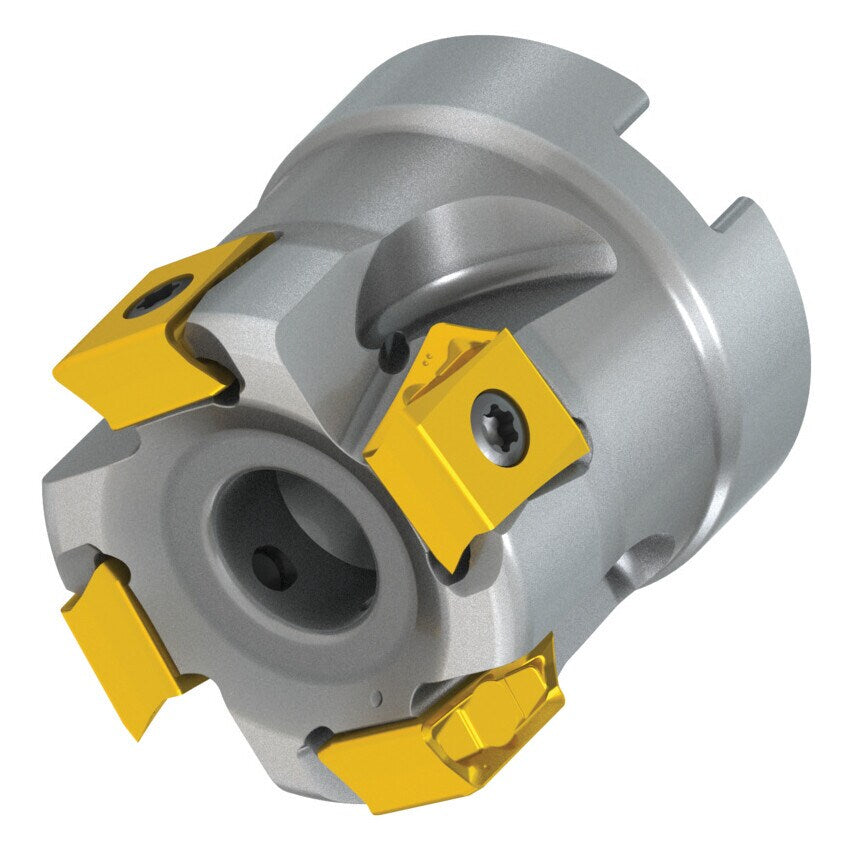

40A04R-S90LN12X-C LN12 90 Tangential Face Mill

Shoulder mill with double negative geometry utilising 4 double-sided inserts. Cutting diameter of 40mm with a 90 approach angle and a 16mm connection bore according to DIN 8030-A. 40mm functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Thick cutter core for enhanced rigidity Low vibrations and long tool life for both insert and cutter Typical Applications Cast Iron Steel Cast Steel

Height	40mm
Product Type	Face Mill
Insert Size	1210
Insert Shape	Rectangle
Coolant Delivery	Coolant Through
Milling Application	Facing | Helical Interpolation | Plunging | Ramping | Shouldering | Slotting
Number of Inserts	4
Maximum Cutting Diameter	40mm
Toolholder Style	Square Shoulder Mill
Cutting Edge Angle	90\u00b0
ISO Designation	40A04R-S90LN12X-C
Toolholder Material	Steel
MFR Part No.	8184465
