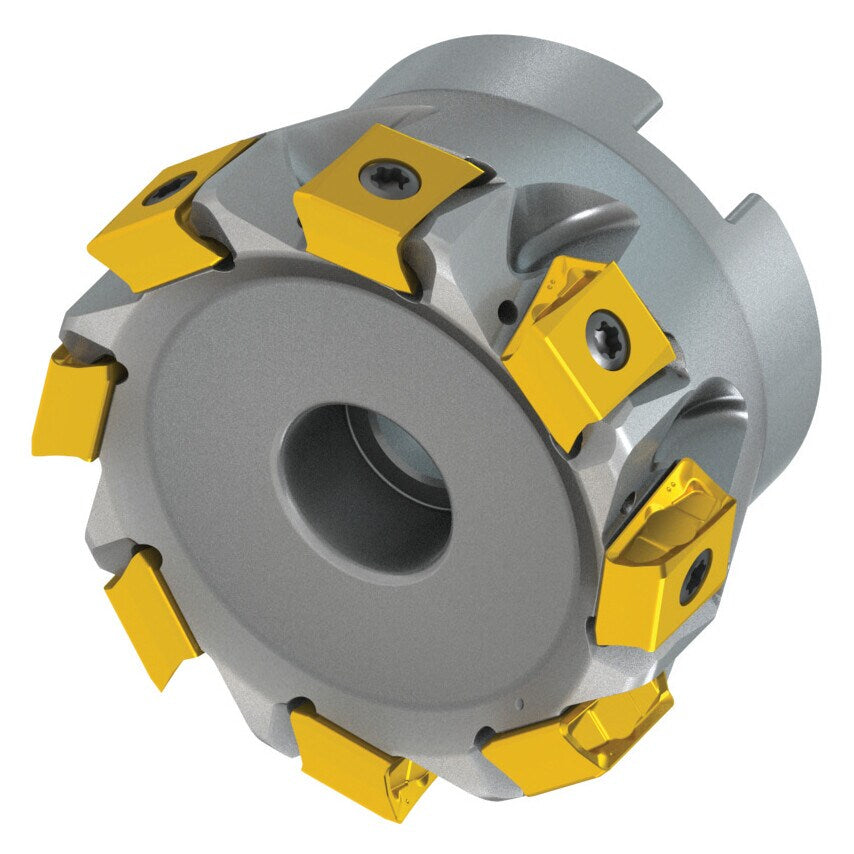

63A08R-S90LN12X-C LN12 90 Tangential Face Mill

Shoulder mill with double negative geometry utilising 8 double-sided inserts. Cutting diameter of 63mm with a 90 approach angle and a 22mm connection bore according to DIN 8030-A. 40mm functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Thick cutter core for enhanced rigidity Low vibrations and long tool life for both insert and cutter Typical Applications Cast Iron Steel Cast Steel

Insert Shape	Rectangle
Toolholder Style	Square Shoulder Mill
Coolant Delivery	Coolant Through
Insert Size	1210
ISO Designation	63A08R-S90LN12X-C
MFR Part No.	8184476
Number of Inserts	8
Height	40mm
Toolholder Material	Steel
Milling Application	Facing | Helical Interpolation | Plunging | Ramping | Shouldering | Slotting
Product Type	Tangential Face Mill
Maximum Cutting Diameter	63mm
Cutting Edge Angle	90\u00b0
