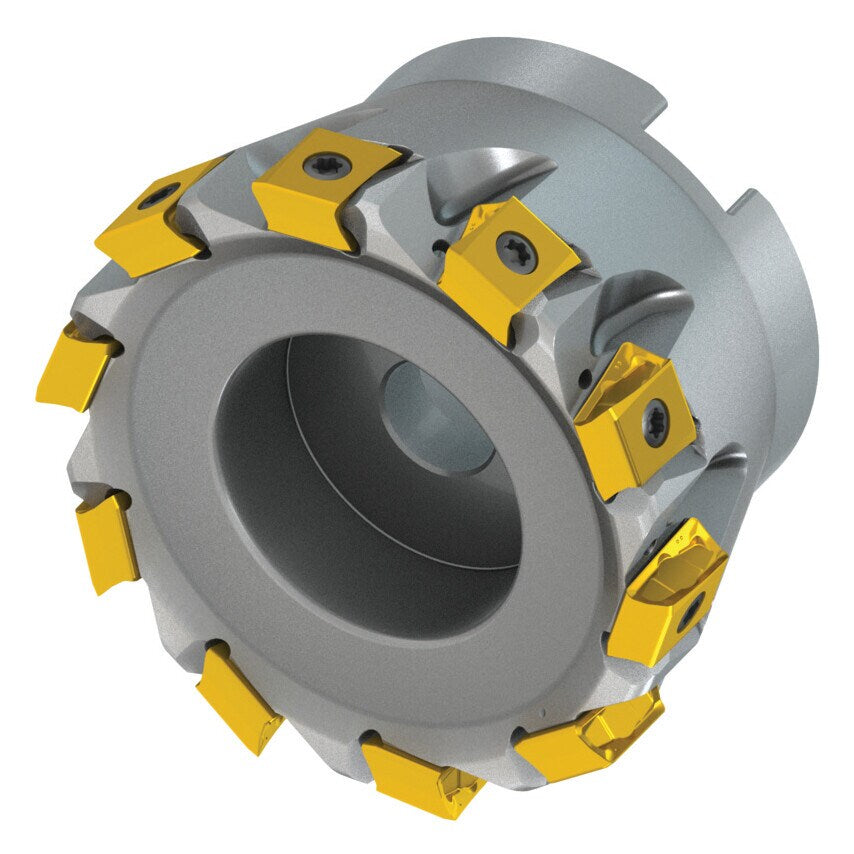

80A10R-S90LN12X-C LN12 90 Tangential Face Mill

Shoulder mill with double negative geometry utilising 10 double-sided inserts. Cutting diameter 80mm with a 90 approach angle and a 27mm connection bore according to DIN 8030-A. 50mm functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Thick cutter core for enhanced rigidity Low vibrations and long tool life for both insert and cutter Typical Applications Cast Iron Steel Cast Steel

ISO Designation	80A10R-S90LN12X-C
MFR Part No.	8185935
Toolholder Style	Square Shoulder Mill
Insert Size	1210
Maximum Cutting Diameter	80mm
Milling Application	Facing | Helical Interpolation | Plunging | Ramping | Shouldering | Slotting
Product Type	Tangential Face Mill
Height	50mm
Toolholder Material	Steel
Number of Inserts	10
Cutting Edge Angle	90\u00b0
Coolant Delivery	Coolant Through
Insert Shape	Rectangle
