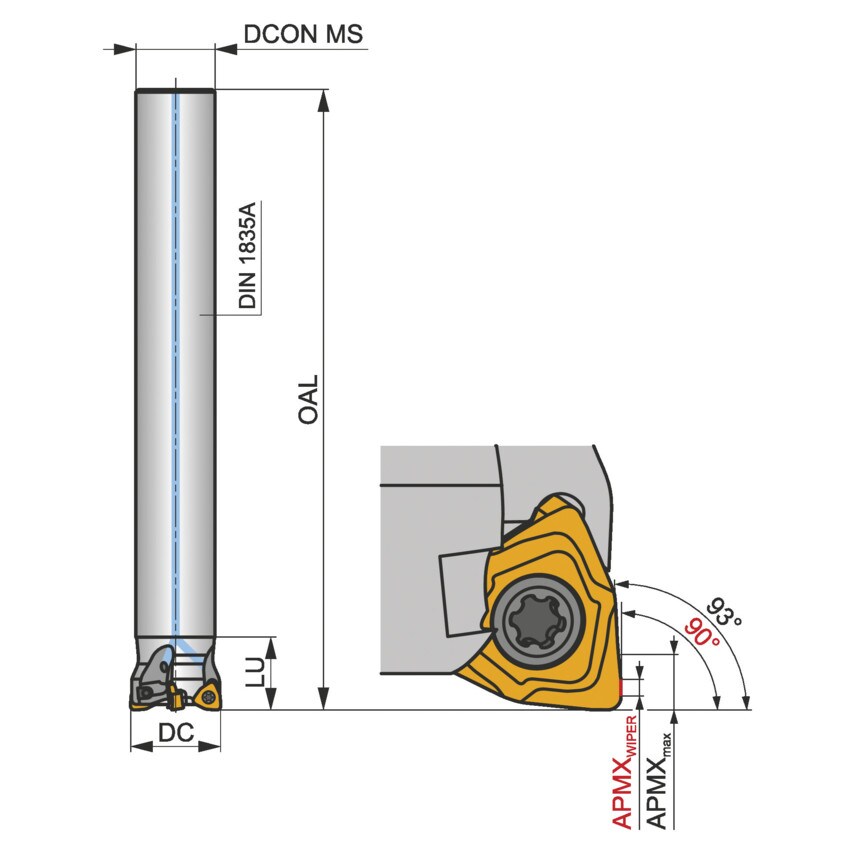

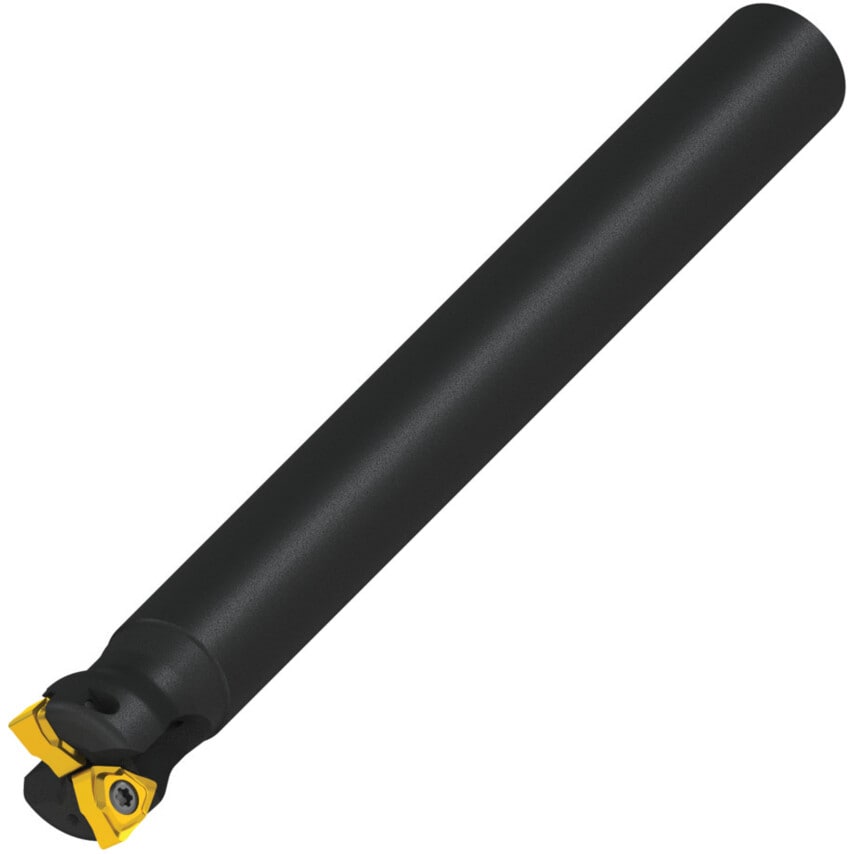

Copy face mill with double negative geometry utilising 2 double-sided inserts. Cutting diameter of 16mm with a 90 approach angle and a 14mm parallel shank according to DIN 1835A. 140mm functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling, copy milling and ramping with a maximum depth of cut of 0,5 (2,0)mm.
Features and Benefits
Clamping design with self-centering capability for high precision clamping
Blackening instead of nickelizing makes all tolerances even tighter
Typical Applications
Copy and profile milling
| ISO Designation | 16A2R020A14-SWN04C-C |
| Cutting Diameter | 16mm |
| Number of Flutes | 2 |
| MFR Part No. | 8238749 |
