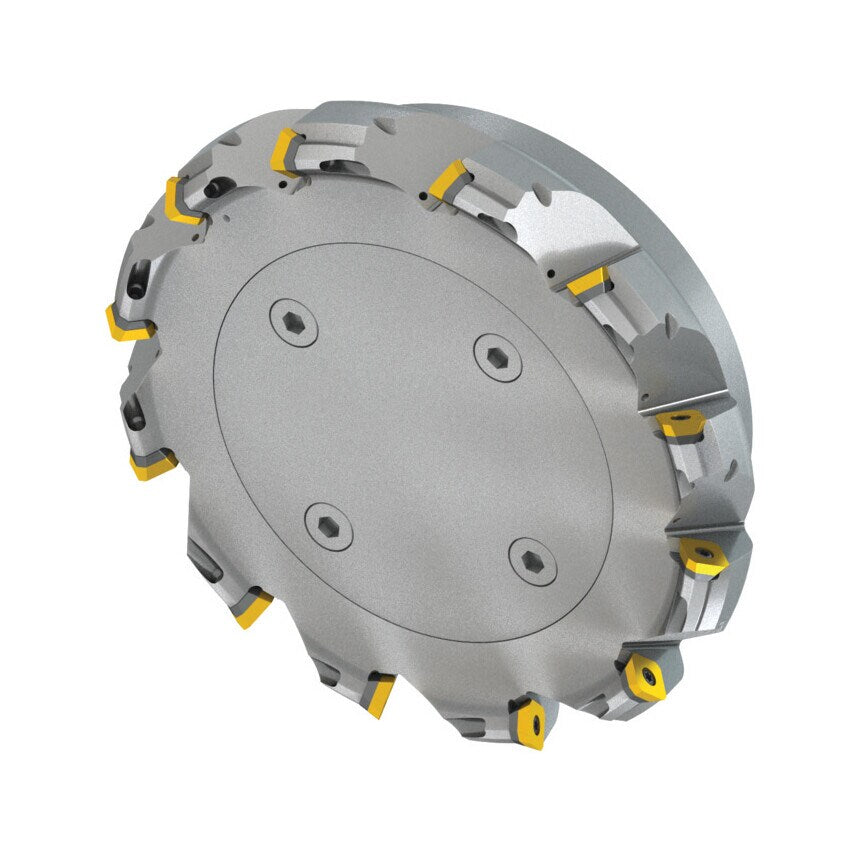

200C12R-S45SD13F-C Ver SD13 45 Face Mill

Face mill with positive/negative geometry utilising 12 single-sided inserts. Cutting diameter ranges from 200mm to 212.8mm with a 45 approach angle and a 60mm connection bore according to DIN 8030-C. 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 6.4mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Carbide shim on cutter seating place for extra protection and durability Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys Non-ferrous metals

Insert Size	13T3
ISO Designation	200C12R-S45SD13F-C
Maximum Cutting Diameter	212.8mm
Cutting Edge Angle	45\u00b0
MFR Part No.	8202793
Coolant Delivery	Coolant Through
Insert Shape	Square
Toolholder Material	Steel
Toolholder Style	Face Mill
Number of Inserts	12
Height	63mm
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
