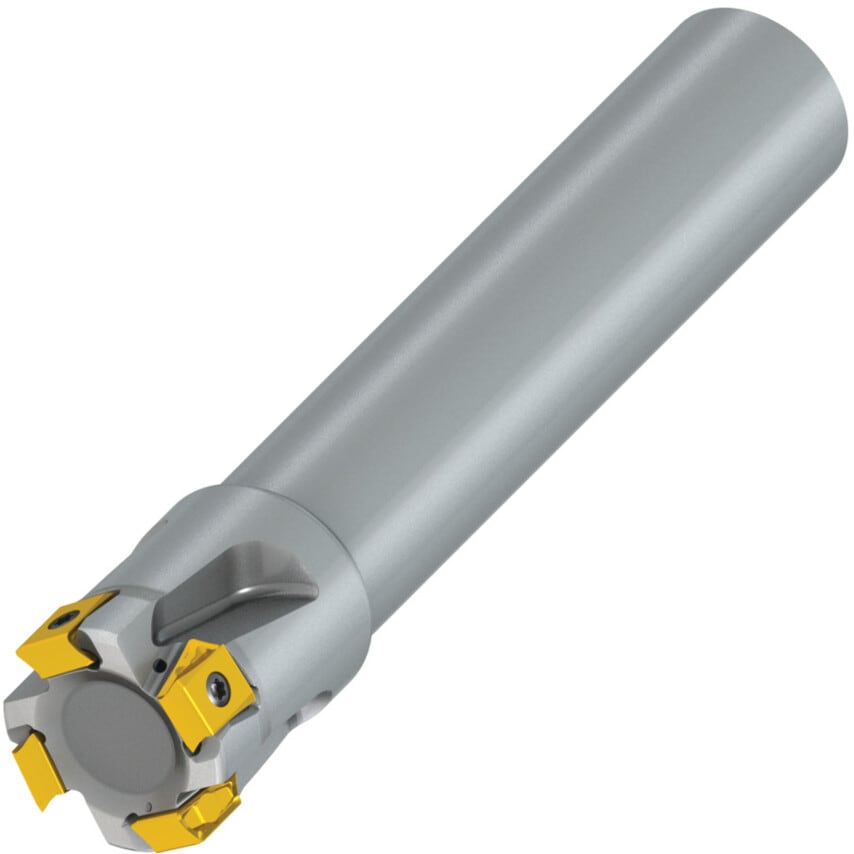

40A4R050A32-SLN12X-C LN12 90 Tangential End Mill

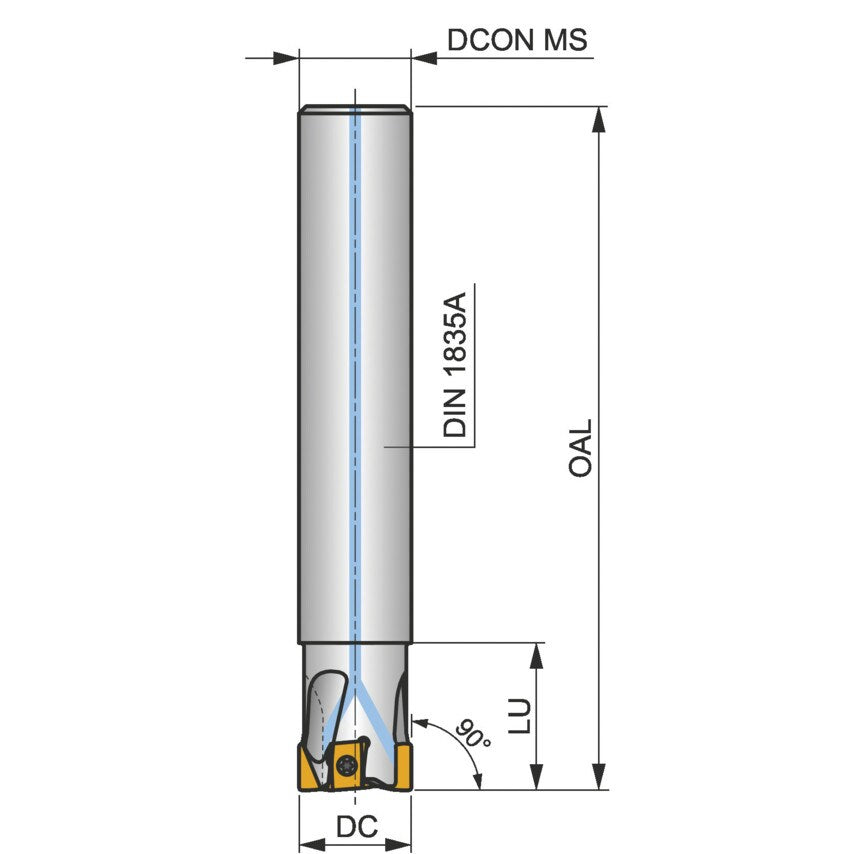

Shoulder mill with double negative geometry utilising 4 double-sided inserts. Cutting diameter of 40mm with a 90 approach angle and a 32mm parallel according to DIN 1835A. 50mm usable and 195mm overall length, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Thick cutter core for enhanced rigidity Low vibrations and long tool life for both insert and cutter Typical Applications Cast Iron Steel Cast Steel

Cutting Edge Angle	90\u00b0
MFR Part No.	8185954
Toolholder Material	Steel
Insert Size	1210
Height	195mm
Maximum Cutting Diameter	40mm
Toolholder Style	Square Shoulder Mill
Product Type	End Mills
Number of Inserts	4
Insert Shape	Rectangle
ISO Designation	40A4R050A32-SLN12X-C
Milling Application	Face Milling
