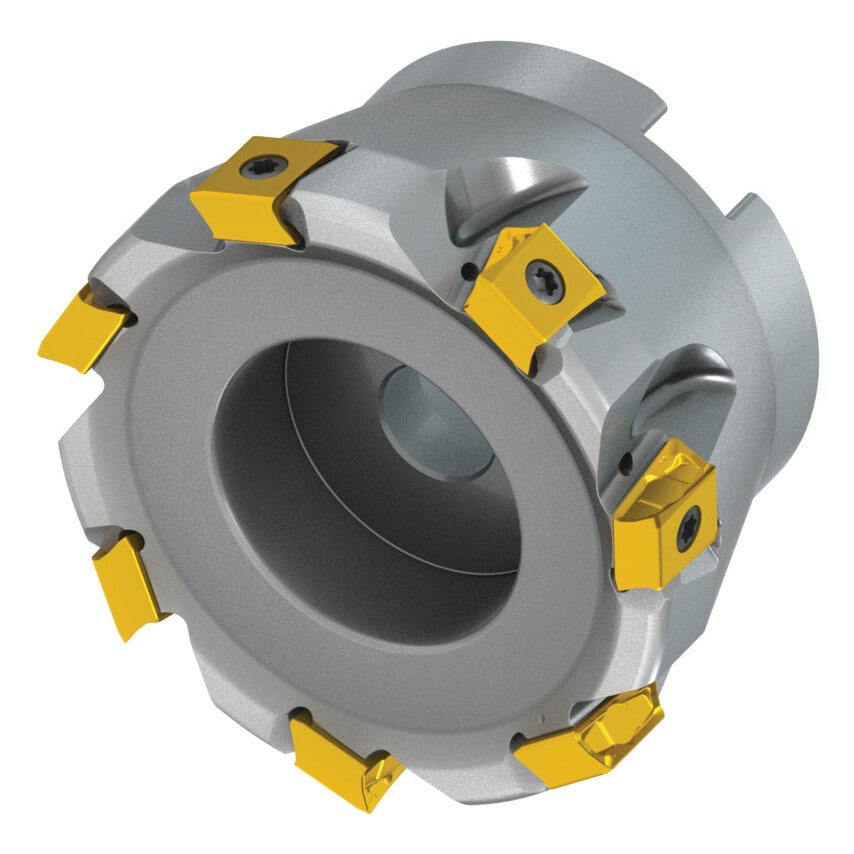

80A07R-S90LN12X-C LN12 90 Tangential Face Mill

Shoulder mill with double negative geometry utilising 7 double-sided inserts. Cutting diameter of 80mm with a 90 approach angle and a 27mm connection bore according to DIN 8030-A. 50mm functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Thick cutter core for enhanced rigidity Low vibrations and long tool life for both insert and cutter Typical Applications Cast Iron Steel Cast Steel

Height	50mm
MFR Part No.	8185934
ISO Designation	80A07R-S90LN12X-C
Insert Shape	Rectangle
Milling Application	Facing | Helical Interpolation | Plunging | Ramping | Shouldering | Slotting
Product Type	Face Mill
Coolant Delivery	Coolant Through
Number of Inserts	7
Toolholder Style	Square Shoulder Mill
Insert Size	1210
Cutting Edge Angle	90\u00b0
Toolholder Material	Steel
Maximum Cutting Diameter	80mm
