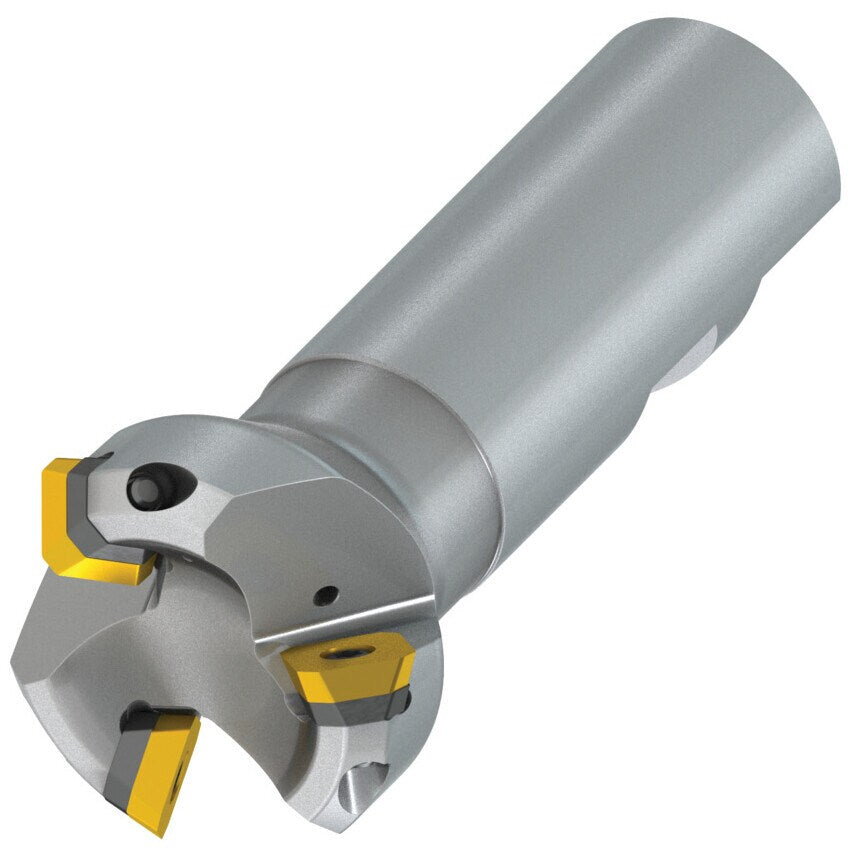

40N3R045B32-SSD13F-C Ver SD1345 End Mill

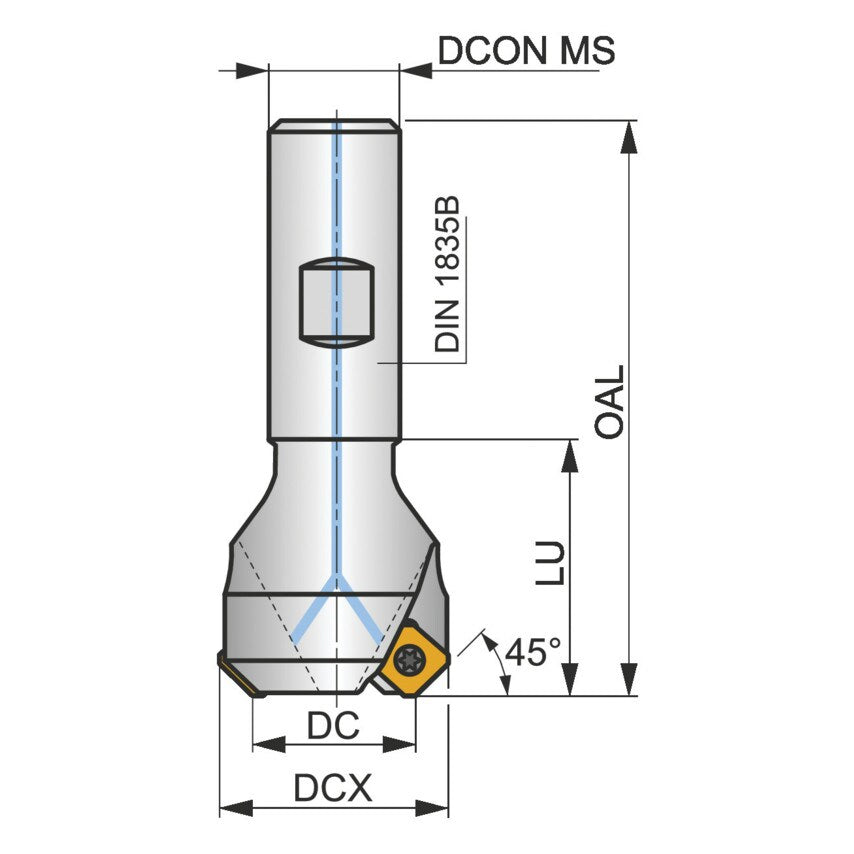

Face mill with positive/negative geometry utilising 3 single-sided inserts. Cutting diameter of between 40mm and 53.5mm with a 45 approach angle and a 32mm Weldon shank according to DIN 1835B. 45mm usable and 120mm overall length, through coolant for face milling and chamfering with a maximum depth of cut of 6.4mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Carbide shim on cutter seating place for extra protection and durability Low vibrations and long tool life for both insert and cutter Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys Non-ferrous metals

Cutting Edge Angle	45\u00b0
Insert Shape	Square
Product Type	Face Mill
Insert Size	1210
Height	120mm
Toolholder Style	Face Mill
MFR Part No.	8202699
Material	Carbide
Maximum Cutting Diameter	53.5mm
ISO Designation	40N3R045B32-SSD13F-C
Number of Inserts	3
Toolholder Material	Steel
