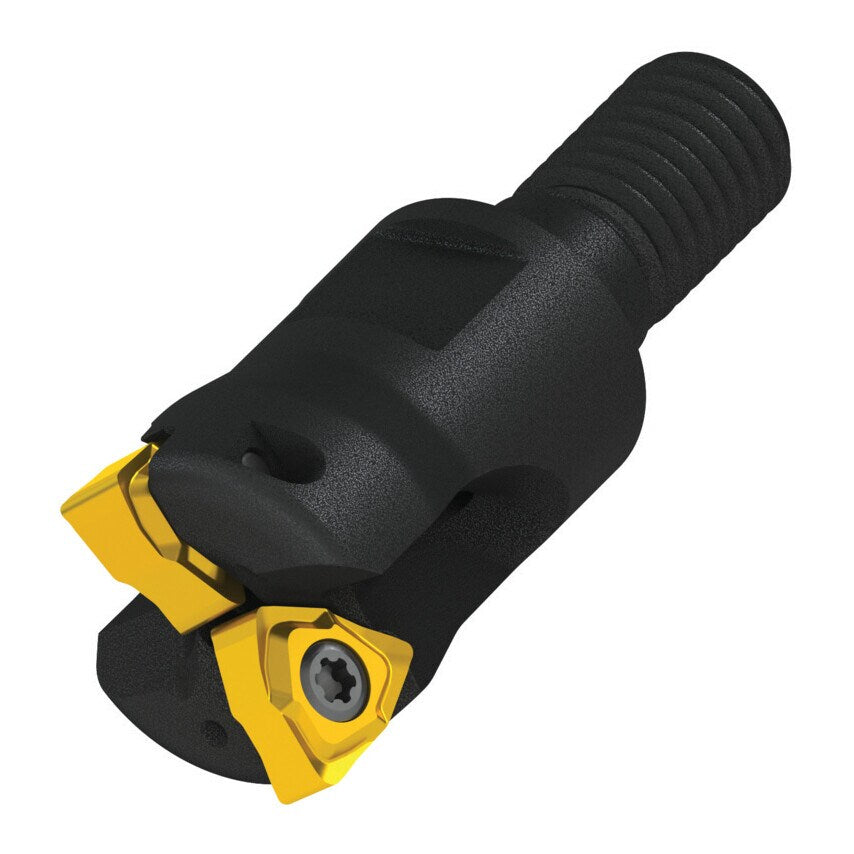

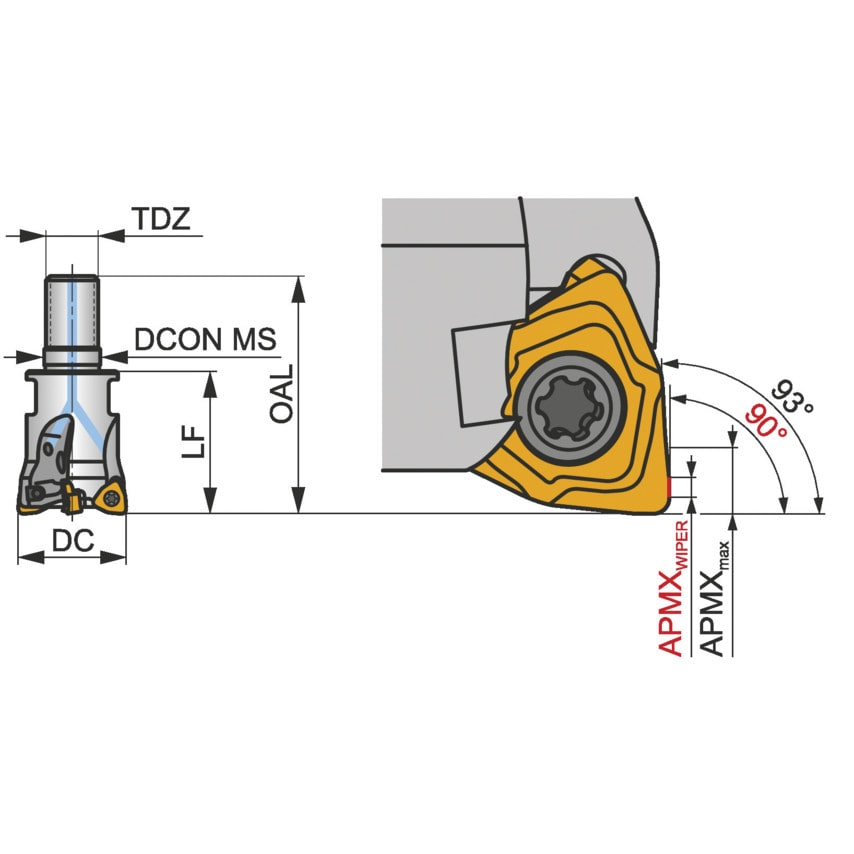

Copy face mill with double negative geometry utilising 2 double-sided inserts. Cutting diameter of 16mm with a 90 approach angle and M08 threaded shank for standard modular tool-holders. 25mm functional and, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling, copy milling and ramping with a maximum depth of cut of 0,5 (2,0)mm.
Features and Benefits
Clamping design with self-centering capability for high precision clamping
Blackening instead of nickelizing makes all tolerances even tighter
Typical Applications
Copy and profile milling
| Product Type | Mould & Die End Mill |
| ISO Designation | 16A2R025M08-SWN04C-C |
| MFR Part No. | 8238780 |
| Cutting Diameter | 16mm |
