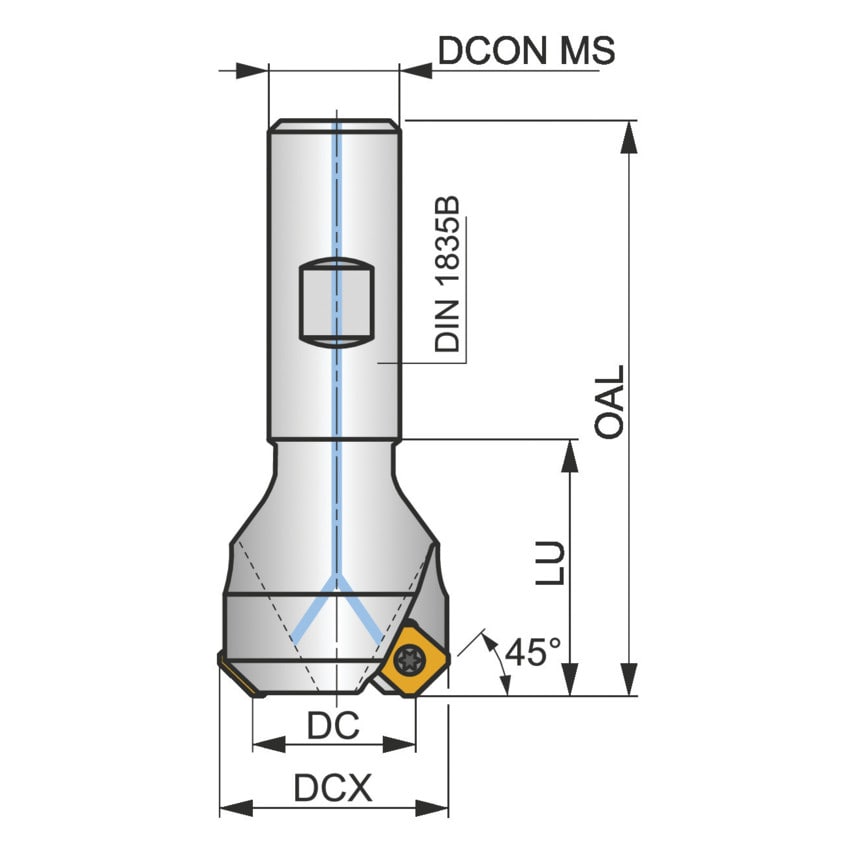

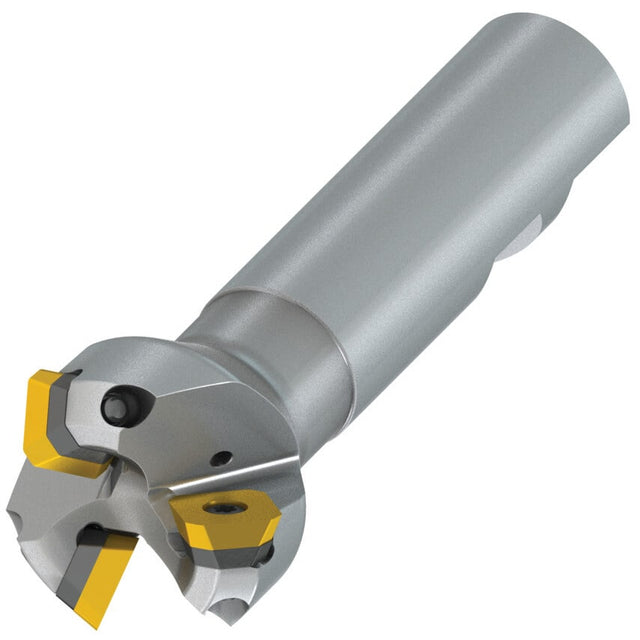

Face mill with positive/negative geometry utilising 3 single-sided inserts. Cutting diameter from 32mm to 44.9mm with a 45 approach angle and a 25mm Weldon shank according to DIN 1835B. 45mm usable and 120mm overall length, through coolant for face milling and chamfering with a maximum depth of cut of 6.4mm.
Features and Benefits
Internal coolant for improved tool life
Improved chip evacuation provides high surface quality and reliability
Carbide shim on cutter seating place for extra protection and durability
Typical Applications
Hardened Metals
Cast Iron
Stainless Steel
Steel
Cast Steel
High-temperature alloys
Non-ferrous metals
| MFR Part No. | 8202698 |
| Toolholder Material | Steel |
| Material | Carbide |
| Maximum Cutting Diameter | 44.9mm |
| Height | 120mm |
| Toolholder Style | Face Mill |
| ISO Designation | 32N3R045B25-SSD13F-C |
| Number of Inserts | 3 |
| Milling Application | Facing | Helical Interpolation | Plunging | Ramping |
| Insert Shape | Square |
| Cutting Edge Angle | 45\u00b0 |
| Insert Size | 13T3 |
| Product Type | End Mills |
