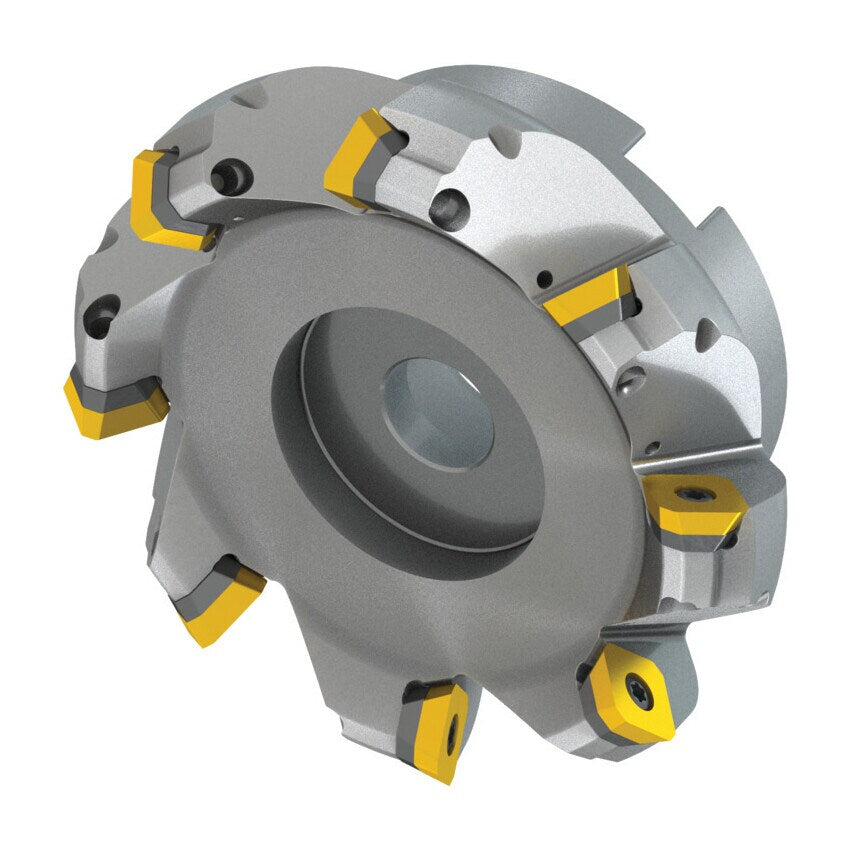

100A08R-S45SD13F-C Ver SD13 45 Face Mill

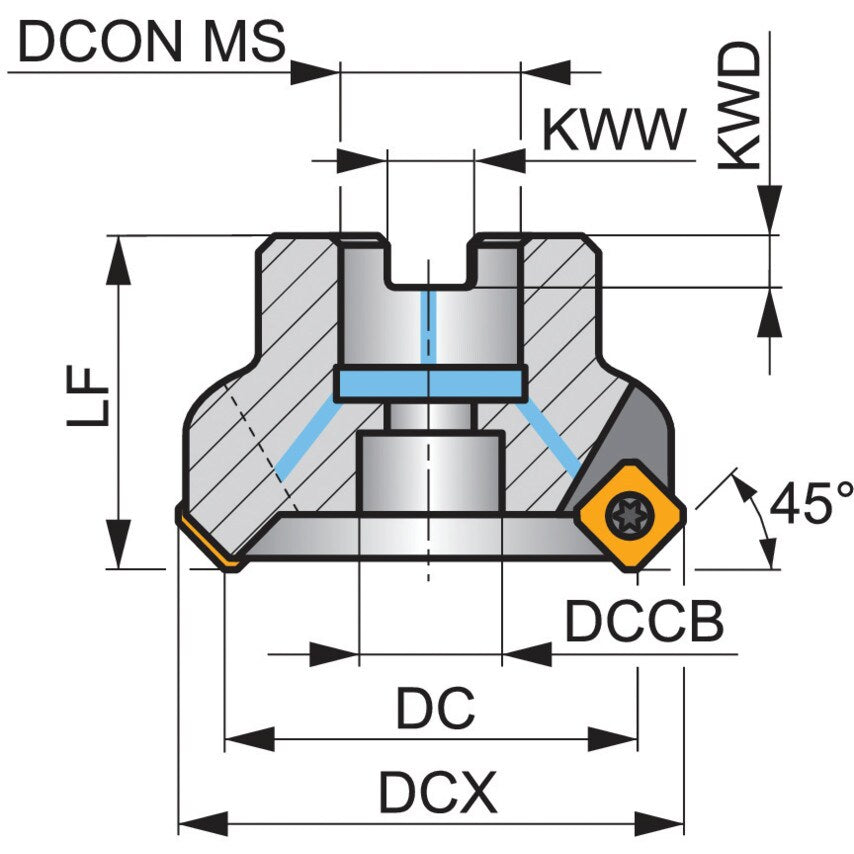

Nickelized steel face mill with positive/negative geometry utilising 8 single-sided inserts. Cutting diameter ranges from 100mm to 112.9mm with a 45 approach angle and a 32mm connection bore according to DIN 8030-A. 50mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 6.4mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Carbide shim on cutter seating place provides extra protection and durability Typical Applications Hardened Metals Cast Iron Stainless Steel Steel High-temperature alloys

Maximum Cutting Diameter	112.9mm
Cutting Edge Angle	45\u00b0
Insert Size	13T3
Insert Shape	Square
Height	50mm
ISO Designation	100A08R-S45SD13F-C
Coolant Delivery	Coolant Through
Number of Inserts	8
Toolholder Style	Face Mill
MFR Part No.	8202733
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
Toolholder Material	Steel
